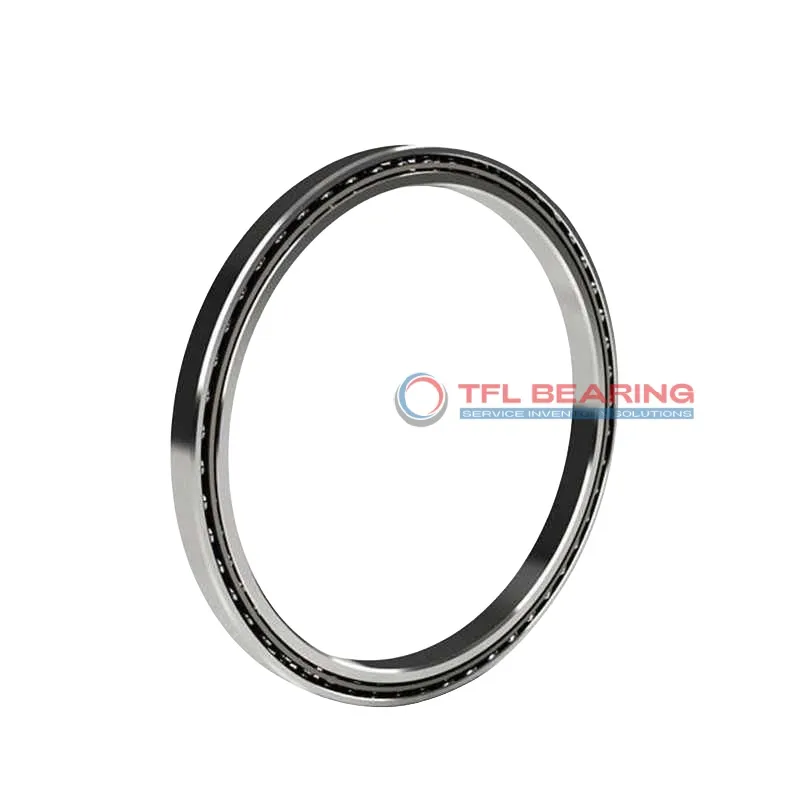

Constant Section (CS) Bearings JA060CP0

Constant Section (CS) Bearings JA060CP0

The JA060CP0 is a slim, sealed ball bearing measuring 6″ in bore and 6.5″ in outer diameter, with a thin 0.25″ width. Made from chrome steel with a brass cage, it’s built for radial loads up to 720 lbf.

Its sealed design keeps lubrication in and contaminants out, making it low-maintenance. The ABEC-1 tolerance ensures reliable performance in light to moderate loads.

This bearing fits snugly in tight spaces thanks to its slim profile. It’s interchangeable with KAYDON models, offering flexibility for replacements.

Ideal for applications like robotics or small machinery where space is limited. Works in temperatures from -30°C to 110°C and complies with RoHS standards. Weighing just 0.28 lbs, it’s lightweight yet durable.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number JA060CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 6"
  • Bore Dia Tolerance -0.0010"– 0"
  • Outer Dia 6.5"
  • Outer Dia Tolerance -0.0010"– 0"
  • Width 0.25"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JA 1/4" x 1/4"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 6.148"
  • Internal Diameter On Outer Ring (Small Side Face) 6.356"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 720 lbf
  • Static Radial Load 1900 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 1487 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.28 lbs
  • price（$） 280
Constant Section (CS) Bearings JA060CP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of JA060CP0 Bearing

JA060CP0 Bearing is crafted with chrome steel rings and balls, offering reliable radial load support up to 720 lbf.

Its brass cage ensures smooth ball movement, enhancing durability in continuous operation.

The sealed design protects against contaminants, making it suitable for various environments.

With a temperature range of -30°C to 110°C, JA060CP0 Bearing performs well in diverse conditions.

Application

Essential Roles of JA060CP0 Bearing
JA060CP0 Bearing is commonly used in robotics, particularly in articulated arms where its thin section design saves space without compromising strength. The sealed construction keeps contaminants out, ensuring long service life in dusty environments.

Where Is JA060CP0 Bearing Used?
In automation systems, JA060CP0 Bearing supports rotary tables and indexing units, thanks to its precise ABEC-1 tolerance. The brass cage adds durability, making it reliable for continuous operation in production lines.

Built for Heavy-Duty Use: JA060CP0 Bearing
JA060CP0 Bearing handles radial loads efficiently in packaging machinery, where its chrome steel rings resist wear. The lubricated design reduces friction, keeping operations smooth even during extended shifts.

Medical vs Industrial: Where JA060CP0 Bearing Excels
JA060CP0 Bearing works well in medical scanners, offering quiet performance crucial for patient comfort. In industrial settings, its inch sizing simplifies replacements in older equipment originally designed for imperial measurements.
