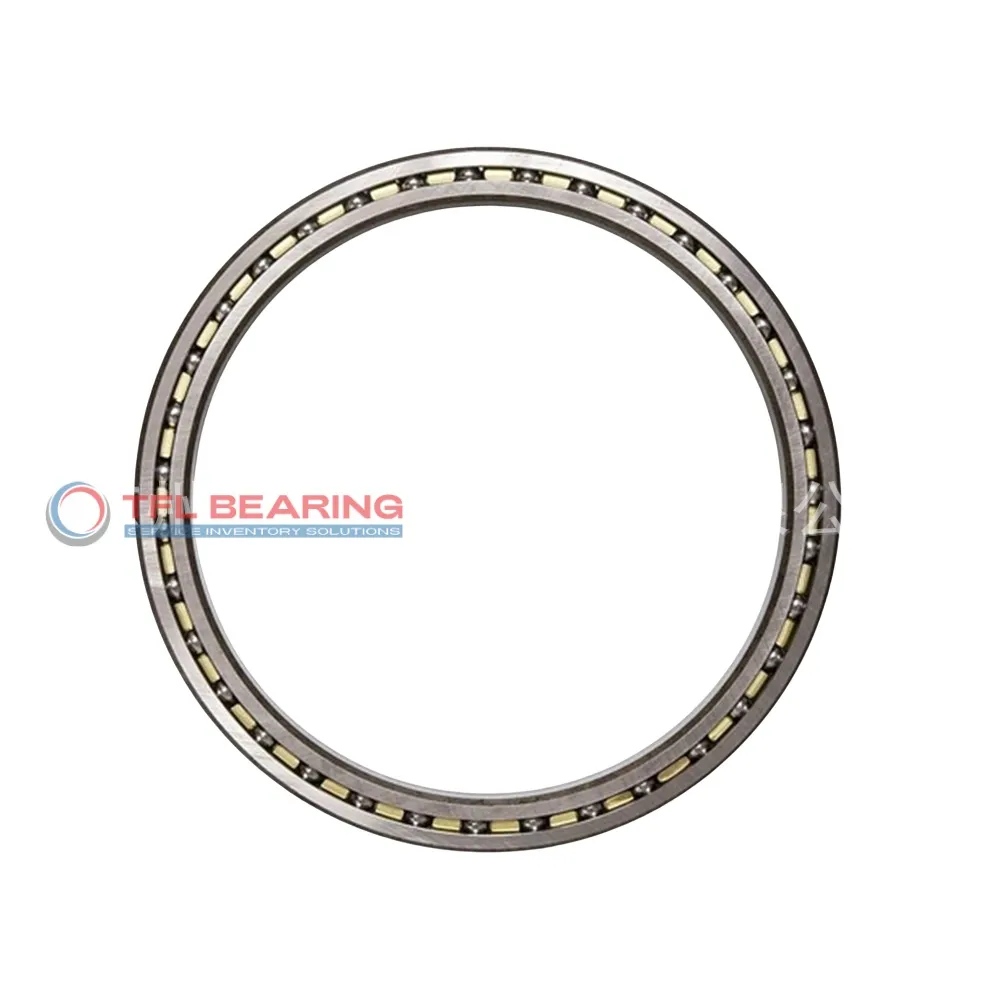

Constant Section (CS) Bearings KD065XPOZ

Brand: TFL Bearing Interchangeable: KAYDON KD065XPOZ 6.5" × 7.5" × 0.5" Inch Open
Part number: KD065XPOZ
Constant Section (CS) Bearings KD065XPOZ
In Stock
US$150.72 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia6.5"
Bore Dia Tolerance-0.0010"– 0"
Outer Dia7.5"
Outer Dia Tolerance-0.0010"– 0"
Width0.5"
Width Tolerance+.000 –.005"
External Diameter On Inner Ring6.870"
Internal Diameter On Outer Ring (Small Side Face)7.130"
Performance
Dynamic Radial Load2,980 lbf
Static Radial Load4,790 lbf
Static Thrust Load11,970 lbf
Temperature Range-30°C to 110 °C
Moment Load Rating7 lbf
Dynamic Thrust Load4,720 lbf
Characteristics
System of MeasurementInch
Bearing TypeBall
For Load DirectionFour Point Contact
ConstructionSingle Row
Seal TypeOpen
Thin Section Bearings TypeReali-Slim Open Bearings
SeriesKD 1/2" x 1/2"
Tolerance ClassABEC-1
Radial Clearance0.0000 – 0.0005"
Static Moment16,760 lbf
LubricationLubricated
Weight1.22 lbs
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
Dimension drawing · click to enlarge

Description

The KD065XPOZ is a slim, open-type ball bearing with a 6.5″ bore and 7.5″ outer diameter, crafted from sturdy chrome steel. Its compact 0.5″ width makes it ideal for space-constrained applications.

This bearing handles radial loads up to 2980 lbf and thrust loads up to 4720 lbf, with a smooth operation in temperatures from -30°C to 110°C. The brass cage ensures durability while reducing friction.

Its four-point contact design provides stability under moment loads, rated up to 7 ft-lbf. The open construction allows easy lubrication for maintenance.

Perfect for machinery requiring slim profiles, like robotics or medical equipment. Weighing 1.22 lbs, it’s lightweight yet robust, and complies with RoHS standards.

Features

Performance Features of KD065XPOZ Bearing

KD065XPOZ Bearing is designed with chrome steel rings and balls, offering strong resistance to radial and thrust loads.
Its dynamic radial load capacity reaches 2980 lbf, ensuring reliable performance in various applications.
The brass cage maintains ball alignment, reducing friction and extending service life.
With a temperature range of -30°C to 110°C, it performs well in diverse environments.

How Does KD065XPOZ Bearing Resist Wear?

KD065XPOZ Bearing’s chrome steel construction provides excellent wear resistance, even under heavy loads.
The brass cage helps distribute loads evenly, minimising wear and tear.
Its ABEC-1 tolerance ensures smooth operation, reducing friction and prolonging lifespan.
The open design allows for easy lubrication, further enhancing durability.

Designed for Durability: KD065XPOZ Bearing

KD065XPOZ Bearing features a thin-section design, making it ideal for space-constrained applications.
The chrome steel materials and brass cage work together to handle dynamic and static loads efficiently.
With a static thrust load capacity of 11970 lbf, it excels in demanding conditions.
Its wide temperature range ensures consistent performance in various environments.

Steel vs Ceramic Bearings: Strengths of KD065XPOZ Bearing

KD065XPOZ Bearing uses high-quality chrome steel for both rings and balls, providing excellent strength and durability.
This material choice ensures reliable performance under heavy radial and thrust loads.
The brass cage adds stability, reducing vibration and noise during operation.
Its compliant design meets RoHS standards, making it a safe choice for various industries.

Application

Key Fields for KD065XPOZ Bearing
KD065XPOZ Bearing is commonly used in robotics, especially for articulated arms where its thin section design saves space without sacrificing load capacity. The four-point contact ensures smooth rotation even under combined loads.

In aerospace applications, KD065XPOZ Bearing handles moment loads in control systems, thanks to its brass cage reducing friction at high speeds. Its inch sizing makes it a fit for many North American aircraft components.

For packaging machinery, KD065XPOZ Bearing’s ABEC-1 tolerance provides reliable precision in conveyor rollers. The chrome steel construction also resists wear in dusty environments, extending service life.

Where Is KD065XPOZ Bearing Used?
You’ll find KD065XPOZ Bearing in medical imaging devices, where its low-profile design fits into compact housings. The open seal allows for easy lubrication, maintaining performance in continuous-use scenarios.

Built for Heavy-Duty Use: KD065XPOZ Bearing
KD065XPOZ Bearing supports rotary tables in machining centres, handling both radial and thrust loads effortlessly. Its temperature range suits indoor industrial environments without performance drops.

Automotive vs Aerospace: Applications of KD065XPOZ Bearing
In automotive steering columns, KD065XPOZ Bearing manages moment loads with its robust chrome steel rings. For satellite mechanisms, the same bearing’s lightweight design reduces overall system mass.

Industrial Uses of KD065XPOZ Bearing
KD065XPOZ Bearing excels in printing presses, where its thin section fits tight spaces between rollers. The brass cage dampens vibrations, ensuring crisp print quality even at high speeds.

What Makes KD065XPOZ Bearing a Preferred Choice?
KD065XPOZ Bearing’s versatility shines in semiconductor equipment, where cleanroom compatibility matters. The lubricated design minimises particle generation during precision wafer handling.
