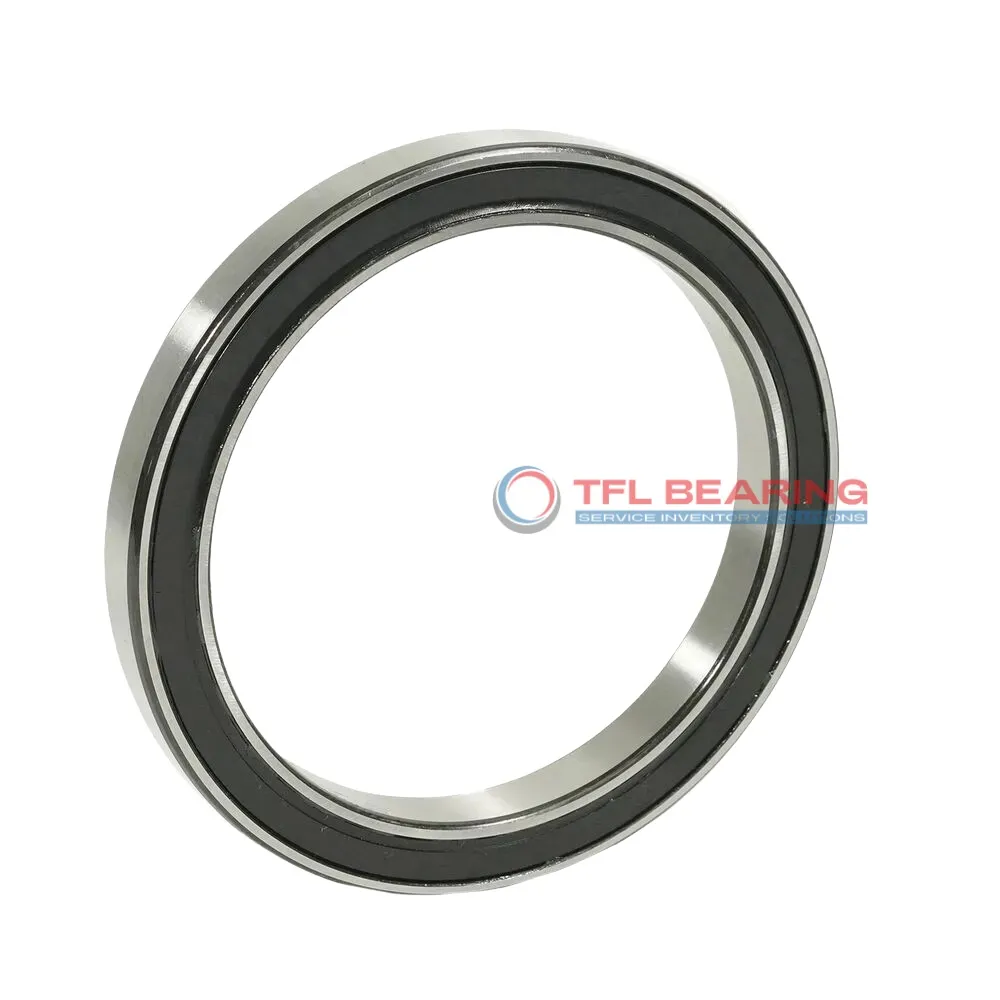

Constant Section (CS) Bearings J09008CP0

Brand: TFL Bearing Interchangeable: KAYDON J09008CP0 90 mm × 106 mm × 8 mm Metric Sealed
Part number: J09008CP0
Constant Section (CS) Bearings J09008CP0
In Stock
US$71.49 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia90 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia106 mm
Outer Dia Tolerance-0.015mm to 0
Width8 mm
Width Tolerance+.000 –.127mm
External Diameter On Inner Ring96.55 mm
Internal Diameter On Outer Ring (Small Side Face)99.42 mm
Performance
Dynamic Radial Load1,054 lbf
Static Radial Load2,114 lbf
Temperature Range-30°C to 110 °C
Characteristics
System of MeasurementMetric
Bearing TypeBall
For Load DirectionRadial
ConstructionSingle Row
Seal TypeSealed
Thin Section Bearings TypeReali-Slim mm Metric Bearings
Series8 mm
Tolerance ClassABEC-1
Radial Clearance0.0000 – 0.0005"
ISO Radial1,737 lbf
LubricationLubricated
Weight0.13 Kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
Dimension drawing · click to enlarge

Description

The J09008CP0 is a slim, sealed ball bearing with a 90mm bore and 106mm outer diameter, crafted from durable chrome steel. Its compact 8mm width makes it ideal for space-constrained applications.

This bearing handles radial loads up to 1054 lbf and operates smoothly in temperatures from -30°C to 110°C. The brass cage ensures quiet, reliable performance, while the sealed design keeps lubrication in and contaminants out.

Designed for precision, it meets ABEC-1 tolerance standards and fits interchangeably with KAYDON bearings. Perfect for robotics or medical equipment where slim profiles and consistent performance are key.

Weighing just 0.13kg, it’s lightweight yet robust. Compliant with RoHS standards, it’s a practical choice for maintenance or upgrades in tight spaces.

Features

Performance Features of J09008CP0 Bearing

J09008CP0 Bearing is built with chrome steel rings and balls, offering reliable radial load support.
Its dynamic radial load capacity reaches 1054 lbf, making it suitable for various applications.

The brass cage ensures smooth operation by keeping the balls properly aligned.
With a sealed design, J09008CP0 Bearing protects against contaminants, enhancing durability.

It operates efficiently within a temperature range of -30°C to 110°C.
The ABEC-1 tolerance class ensures consistent performance in precision tasks.

Application

Industrial Uses of J09008CP0 Bearing
J09008CP0 Bearing is commonly used in industrial automation, particularly in robotic arms and precision machinery where its thin-section design saves space without compromising performance. The sealed construction helps keep contaminants out, ensuring longer service life.

Where Is J09008CP0 Bearing Used?
You’ll often find J09008CP0 Bearing in medical imaging devices, where its smooth operation and reliability are essential for accurate diagnostics. The brass cage adds durability, making it suitable for high-use environments.

Built for Heavy-Duty Use: J09008CP0 Bearing
J09008CP0 Bearing handles radial loads effortlessly in conveyor systems, thanks to its chrome steel construction. Its compact width makes it ideal for applications where space is limited but performance can’t be sacrificed.

Automotive vs Aerospace: Applications of J09008CP0 Bearing
In automotive steering systems, J09008CP0 Bearing provides smooth rotation, while in aerospace, its lightweight design is valued for reducing overall component weight. The ABEC-1 tolerance ensures consistent performance in both fields.

Perfect Fit for Automation: J09008CP0 Bearing
J09008CP0 Bearing works well in 3D printers, where precision and low friction are key. The lubricated design reduces wear, making it a reliable choice for continuous operation in automated setups.
