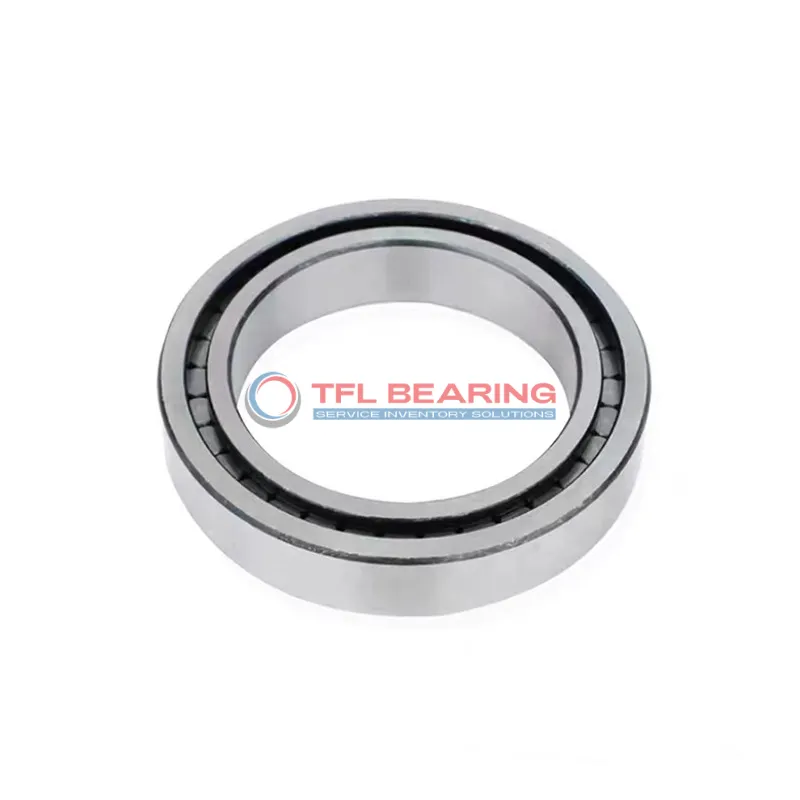

Single Row Full Complement Cylindrical Roller Bearings NCF 2917 CV

Single Row Full Complement Cylindrical Roller Bearings NCF 2917 CV

The NCF 2917 CV is a single row cylindrical roller bearing with an 85mm bore and 120mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 22950 lbf and runs smoothly at speeds up to 3000 RPM.

Its full complement design eliminates the need for a cage, offering higher load capacity and durability. The open seal type allows for easy lubrication with grease or oil.

This bearing suits applications with axial displacement up to 1mm, making it ideal for gearboxes or heavy machinery. It works well in temperatures from -30°C to 110°C.

Weighing 0.81kg, it’s a robust choice for demanding environments. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCF 2917 CV
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 22 mm
  • Width Tolerance -0.20mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Dia Of Inner Ring 96 mm
  • Shoulder Dia Outer Ring 105 mm
  • Raceway Diameter Outer Ring 109.5 mm
  • Chamfer Dimension r1,2(min.) 1.1 mm
  • Chamfer Dimension r3,4(min.) 1 mm
  • Permissible Axial Displacement(max.) 1 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Full complement of rollers (no cage)
  • Dynamic Radial Load 22950 lbf
  • Static Radial Load 37350 lbf
  • Max Speed 3000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.81 kg
Single Row Full Complement Cylindrical Roller Bearings NCF 2917 CV dimension drawing
Download DWG Download PDF

Features

Performance Features of NCF 2917 CV Bearing

NCF 2917 CV Bearing is built with a full complement of chrome steel rollers, enhancing its load-carrying capacity.
This design allows it to handle combined radial and axial loads efficiently, with a dynamic radial load of 22950 lbf.

The open construction of NCF 2917 CV Bearing simplifies lubrication, whether using grease or oil.
Its temperature range of -30° to 110 °C ensures reliable performance in various operating conditions.

NCF 2917 CV Bearing’s precise dimensions and tolerances contribute to its smooth operation at speeds up to 3000 rpm.
The absence of a cage maximises roller count, improving load distribution and durability.

With chrome steel rings and rollers, NCF 2917 CV Bearing resists wear, extending its service life.
Its static radial load capacity of 37350 lbf makes it suitable for heavy-duty applications.

Application

Industrial Uses of NCF 2917 CV Bearing
NCF 2917 CV Bearing is commonly used in heavy machinery like industrial gearboxes and power transmission systems, where its full complement design handles high radial loads efficiently. The open seal type allows for easy lubrication, extending its service life in demanding conditions.

Where Is NCF 2917 CV Bearing Used?
You’ll often find NCF 2917 CV Bearing in automotive applications such as wheel hubs and drivetrains, thanks to its combined load capacity. Its chrome steel construction ensures durability even under constant stress and high speeds.

Built for Heavy-Duty Use: NCF 2917 CV Bearing
NCF 2917 CV Bearing excels in construction equipment like cranes and excavators, where its robust design withstands extreme loads. The absence of a cage means more rollers can fit, boosting its load-bearing capacity.

Automotive vs Industrial: Applications of NCF 2917 CV Bearing
In automotive settings, NCF 2917 CV Bearing supports wheel assemblies, while in industrial settings, it’s ideal for conveyor rollers. Its metric sizing makes it versatile for various machinery across different sectors.

Perfect Fit for Automation: NCF 2917 CV Bearing
NCF 2917 CV Bearing is a reliable choice for robotic arms and automated assembly lines, where precision and load capacity are key. The grease or oil lubrication options ensure smooth operation in high-speed environments.
