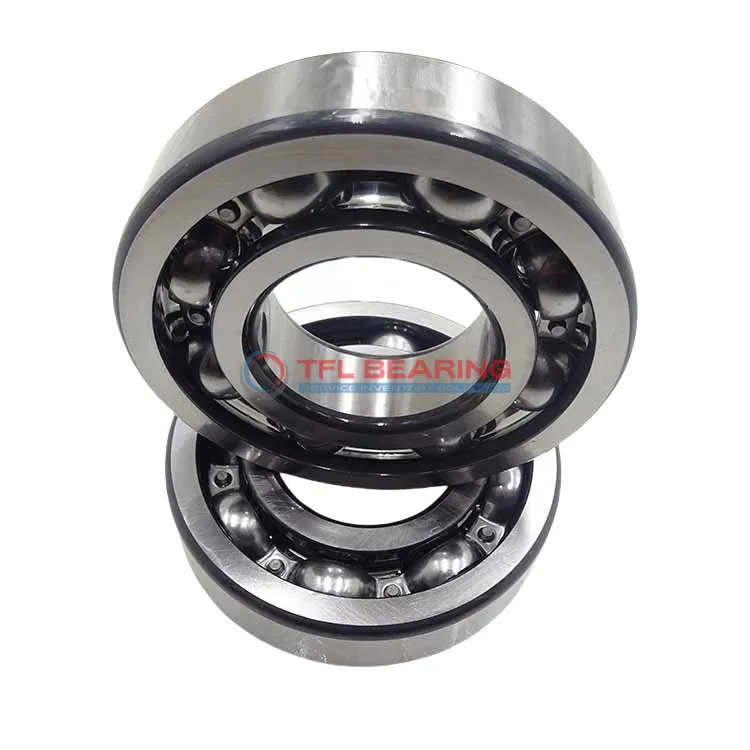

Single Row Deep Groove Ball Bearings 6348 M

Single Row Deep Groove Ball Bearings 6348 M

The 6348 M is a single-row deep groove ball bearing with a 240mm bore and 500mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 99366 lbf and operates smoothly at speeds up to 2400 RPM.

Its open design allows for easy lubrication, while the stainless steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial machinery or large equipment where radial loads are predominant.

Weighing 96.8kg, it’s built for robust performance in demanding environments. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6348 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 240 mm
  • Bore Dia Tolerance -0.022mm to 0
  • Outer Dia 500 mm
  • Outer Dia Tolerance -0.033mm to 0
  • Width 95 mm
  • Width Tolerance -0.3mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 99366 lbf
  • Static Radial Load 131513 lbf
  • Max Speed 2400 rpm
  • Weight 96800 g
Single Row Deep Groove Ball Bearings 6348 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 6348 M Bearing

6348 M Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 99366 lbf, ensuring reliable performance in heavy-duty applications.

The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 2,400 rpm, it balances durability and efficiency for industrial use.

6348 M Bearing operates in temperatures from -30° to 120°C, suitable for varied environments.
Its precision P6 tolerance class ensures consistent performance in demanding conditions.

Application

Common Applications of 6348 M Bearing
The 6348 M Bearing is widely used in industrial machinery, particularly in heavy-duty applications like large conveyor systems and industrial fans. Its robust construction and high load capacity make it reliable for continuous operation.

In automotive settings, 6348 M Bearing can be found in large vehicle components such as truck transmissions and axle systems. The open design allows for easy lubrication, ensuring longevity even under demanding conditions.

For automation equipment, 6348 M Bearing provides smooth performance in robotic arms and assembly line machinery. Its precision engineering helps maintain accuracy in repetitive tasks.

Medical imaging devices also benefit from 6348 M Bearing’s stability and low noise operation. The chrome steel material ensures durability in critical healthcare environments.

In household appliances like large washing machines, 6348 M Bearing offers quiet and efficient performance. Its metric sizing makes it compatible with various European appliance models.
