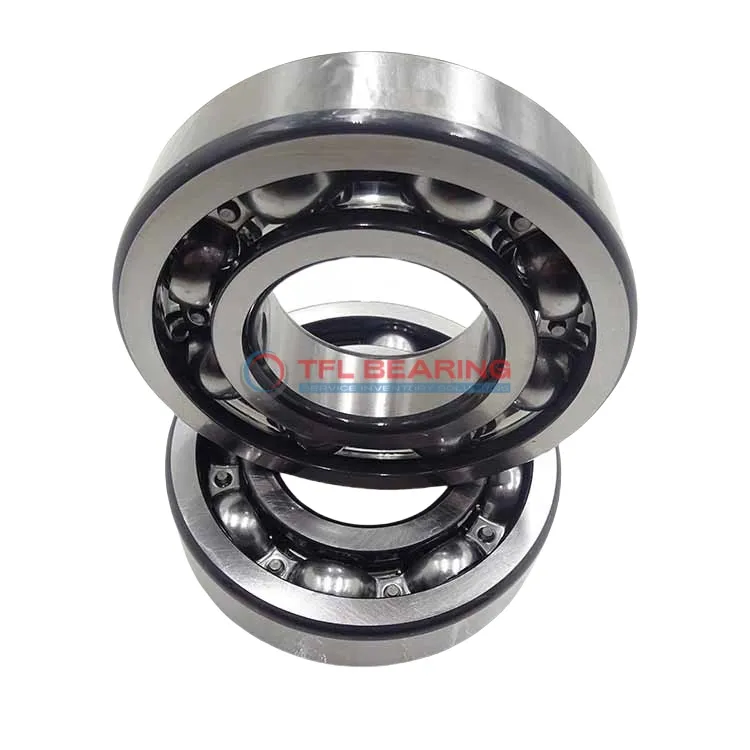

Single Row Deep Groove Ball Bearings 61852

Single Row Deep Groove Ball Bearings 61852

The 61852 is a single-row deep groove ball bearing with a 260mm bore and 320mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 24954 lbf and operates smoothly at speeds up to 2400 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial machinery or conveyor systems where radial loads are prevalent.

Weighing 4.17kg, it balances strength and practicality. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61852
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 260 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 320 mm
  • Outer Dia Tolerance -0.028mm to 0
  • Width 28 mm
  • Width Tolerance -0.35mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 24954 lbf
  • Static Radial Load 36644 lbf
  • Max Speed 2400 rpm
  • Weight 4.17 kg
  • price（$） 387.099
Single Row Deep Groove Ball Bearings 61852 dimension drawing
Download DWG Download PDF

Features

Performance Features of 61852 Bearing

61852 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 24954 lbf, ensuring reliable performance in various applications.

The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 2,400 rpm, it balances durability and efficiency.

61852 Bearing operates smoothly in temperatures ranging from -30° to 120°C.
Its open design allows for easy maintenance and lubrication.

Application

Common Applications of 61852 Bearing
61852 Bearing is widely used in industrial machinery, especially in large equipment like gearboxes and electric motors, where its radial load capacity is essential. The open design allows for easy lubrication, making it suitable for high-load environments.

In automotive applications, 61852 Bearing can be found in heavy-duty transmissions and wheel hubs, providing reliable performance under constant stress. Its metric sizing ensures compatibility with a variety of vehicle designs.

For automation systems, 61852 Bearing supports robotic arms and conveyor belts, where smooth rotation is critical. The chrome steel construction ensures durability even in continuous operation.

In household appliances like large fans or washing machines, 61852 Bearing offers quiet and efficient operation. Its stainless steel cage adds longevity, making it a cost-effective choice for manufacturers.
