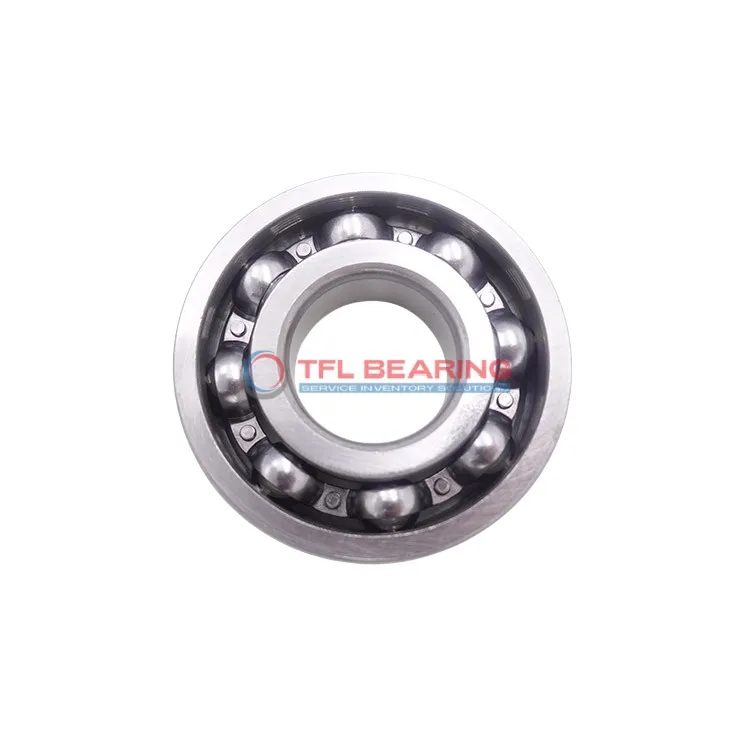

Single Row Deep Groove Ball Bearings 61819

Single Row Deep Groove Ball Bearings 61819

The 61819 is a single-row deep groove ball bearing with a 95mm bore and 120mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 4474 lbf and operates smoothly at speeds reaching 6700 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for applications like electric motors or pumps where radial loads are typical.

Weighing 0.29kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61819
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 95 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 13 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 4474 lbf
  • Static Radial Load 3957 lbf
  • Max Speed 6700 rpm
  • Weight 0.29 kg
  • price（$） 73.233
Single Row Deep Groove Ball Bearings 61819 dimension drawing
Download DWG Download PDF

Features

Performance Features of 61819 Bearing

61819 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 4474 lbf.
Its single-row deep groove design ensures smooth operation and efficient load distribution.

The stainless steel cage maintains ball alignment, reducing friction and wear over time.
With a maximum speed of 6,700 rpm, it delivers reliable performance in various applications.

61819 Bearing operates in temperatures from -30° to 120°C, suitable for diverse environments.
Its P6 tolerance class ensures precision and consistency in demanding conditions.

Application

Industrial Uses of 61819 Bearing
61819 Bearing is commonly used in machine tools, where its single row deep groove design handles radial loads efficiently.
The open seal type allows for easy lubrication, making it suitable for high-speed operations in industrial settings.

Where Is 61819 Bearing Used?
You’ll find 61819 Bearing in conveyor systems, where its chrome steel construction ensures durability under continuous use.
Its metric sizing and P6 tolerance class make it a reliable choice for precision equipment.

Built for Heavy-Duty Use: 61819 Bearing
61819 Bearing works well in electric motors, providing smooth rotation and long service life.
The stainless steel cage adds extra resistance to wear, even in demanding environments.

Automotive vs Industrial: Applications of 61819 Bearing
In automotive applications, 61819 Bearing supports components like alternators and pumps.
For industrial machinery, it’s a go-to for radial load handling in compressors and fans.

Perfect Fit for Automation: 61819 Bearing
61819 Bearing is ideal for robotic arms, where its precision and reliability are key.
The wide temperature range ensures consistent performance in various operating conditions.
