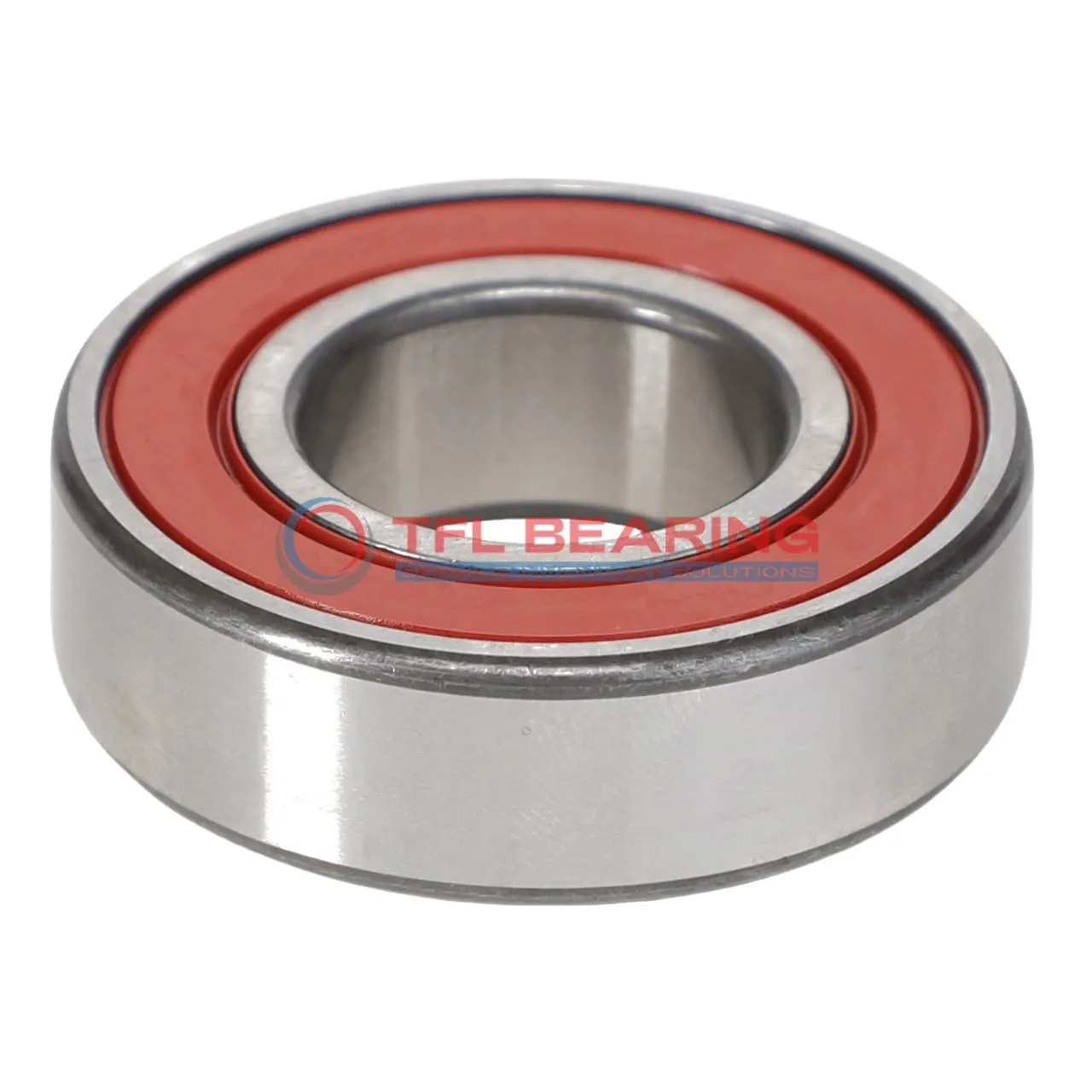

Single Row Deep Groove Ball Bearings 61815-2RS1/W64

Single Row Deep Groove Ball Bearings 61815-2RS1/W64

The 61815-2RS1/W64 is a compact single-row deep groove ball bearing, measuring 75mm by 95mm by 10mm, crafted from durable chrome steel. It handles radial loads up to 2810 lbf and spins smoothly at speeds up to 8500 RPM.

Its sealed design keeps lubrication in and contaminants out, while the solid oil lubrication ensures long-lasting performance. The bearing operates reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or small machinery where space is limited.

Weighing just 0.14kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61815-2RS1/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 95 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 10 mm
  • Width Tolerance -0.15mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2810 lbf
  • Static Radial Load 2428 lbf
  • Max Speed 8500 rpm
  • Weight 0.14 kg
  • price（$） 71.253
Single Row Deep Groove Ball Bearings 61815-2RS1/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 61815-2RS1/W64 Bearing

61815-2RS1/W64 Bearing is built with chrome steel rings and balls, offering strong radial load support up to 2810 lbf.
Its sealed design and solid oil lubrication ensure consistent performance with minimal maintenance.

The ABEC 1 tolerance class provides reliable precision for various applications.
With a maximum speed of 8,500 rpm, it delivers smooth operation in demanding conditions.

Its temperature range of -30°C to 120°C makes it suitable for diverse environments.
The chrome steel cage enhances durability, reducing wear over time.

Application

Common Applications of 61815-2RS1/W64 Bearing
61815-2RS1/W64 Bearing is widely used in industrial equipment like conveyor systems and electric motors, where its sealed design helps keep contaminants out. The solid oil lubrication ensures smooth operation even in dusty environments.

In automotive applications, 61815-2RS1/W64 Bearing fits well in components like alternators and water pumps, thanks to its radial load capacity. The chrome steel construction provides durability for long-term use.

For home appliances, 61815-2RS1/W64 Bearing works efficiently in devices like washing machines and fans. Its compact size and sealed nature make it a reliable choice for everyday use.

The bearing also finds its place in small machinery and tools, where precision and low maintenance are key. Its temperature range allows it to perform reliably in various conditions.
