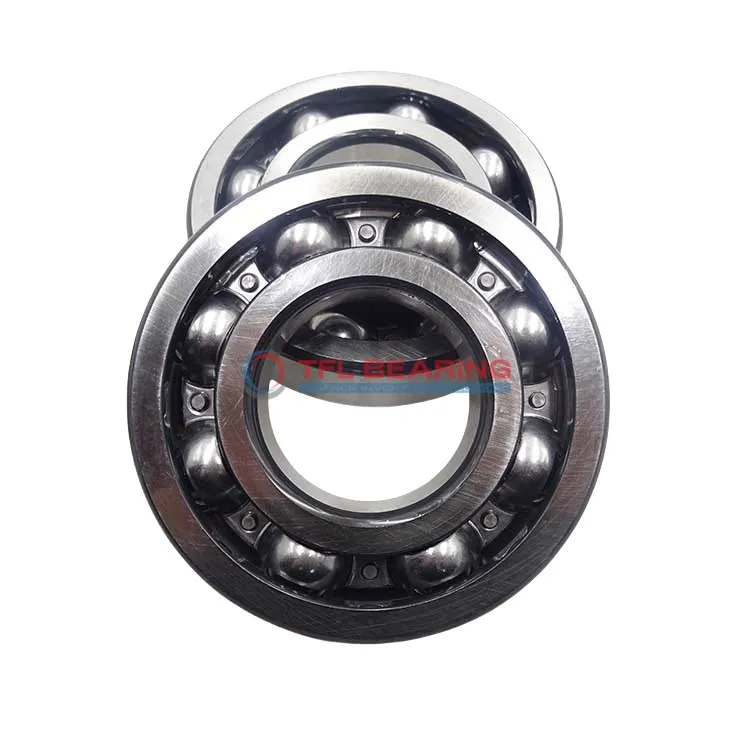

Single Row Deep Groove Ball Bearings 6338 M/C3VQ658

Single Row Deep Groove Ball Bearings 6338 M/C3VQ658

The 6338 M/C3VQ658 is a single-row deep groove ball bearing with a 190mm bore and 400mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 83404 lbf and operates smoothly at speeds up to 3000 RPM.

Its open design simplifies maintenance, while the machined metal cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial machinery or large equipment where radial loads are prevalent.

Weighing 47.5kg, it’s built for robust performance. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6338 M/C3VQ658
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 190 mm
  • Bore Dia Tolerance -0.022mm to 0
  • Outer Dia 400 mm
  • Outer Dia Tolerance -0.028mm to 0
  • Width 78 mm
  • Width Tolerance -0.3mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 83404 lbf
  • Static Radial Load 96668 lbf
  • Max Speed 3000 rpm
  • Weight 47500 g
  • price（$） 1183.239
Single Row Deep Groove Ball Bearings 6338 M/C3VQ658 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6338 M/C3VQ658 Bearing

6338 M/C3VQ658 Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 83,404 lbf, making it suitable for heavy-duty applications.

The machined metal cage ensures precise ball alignment, reducing friction and wear.
With a C3 radial clearance, it accommodates thermal expansion in various operating conditions.

6338 M/C3VQ658 Bearing operates in temperatures from -30°C to 120°C, ensuring versatility.
Its open design simplifies maintenance, while the ABEC 1 tolerance guarantees consistent performance.

Application

Industrial Uses of 6338 M/C3VQ658 Bearing
6338 M/C3VQ658 Bearing is commonly used in heavy machinery like industrial pumps and compressors, where its robust design handles radial loads with ease. The open seal type allows for efficient lubrication, extending its service life in demanding environments.

Where Is 6338 M/C3VQ658 Bearing Used?
You’ll often find 6338 M/C3VQ658 Bearing in large-scale conveyor systems, where its high load capacity ensures smooth operation. Its C3 clearance also makes it suitable for applications with thermal expansion concerns.

Built for Heavy-Duty Use: 6338 M/C3VQ658 Bearing
6338 M/C3VQ658 Bearing excels in construction equipment like cranes, thanks to its chrome steel construction and machined metal cage. The wide temperature range means it performs reliably in both hot and cold conditions.

Automotive vs Aerospace: Applications of 6338 M/C3VQ658 Bearing
In automotive settings, 6338 M/C3VQ658 Bearing supports large drivetrain components, while in aerospace, its precision fits auxiliary systems. The ABEC 1 tolerance ensures consistent performance across both industries.

Practical Applications of 6338 M/C3VQ658 Bearing
6338 M/C3VQ658 Bearing is a go-to for wind turbine gearboxes, where its dynamic load rating handles variable forces. The metric dimensions make it a versatile choice for global equipment standards.
