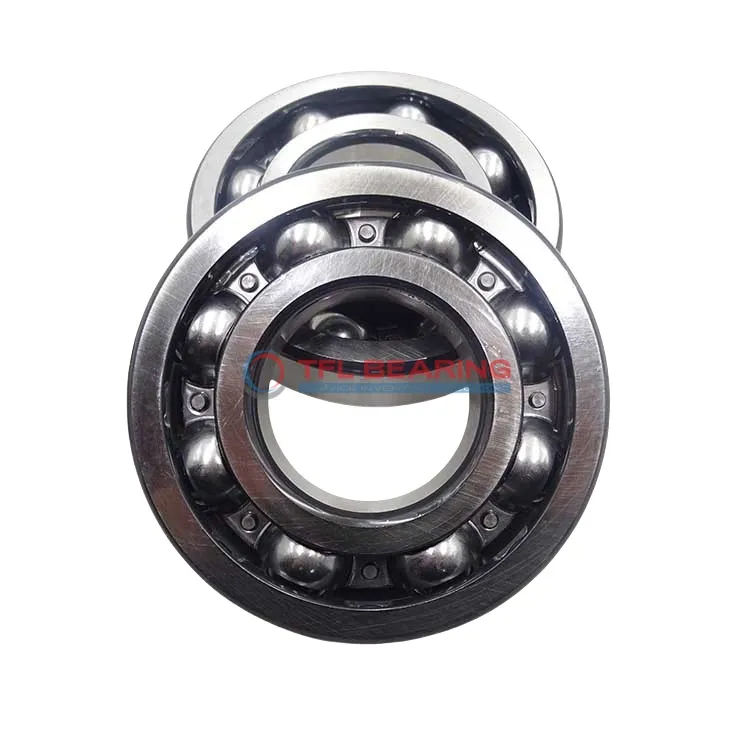

Single Row Deep Groove Ball Bearings 6338 M/C4H

Single Row Deep Groove Ball Bearings 6338 M/C4H

The 6338 M/C4H is a single-row deep groove ball bearing with a 190mm bore and 400mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 83404 lbf and operates smoothly at speeds up to 3000 RPM.

Its open design allows for easy lubrication, while the machined metal cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial machinery or large equipment where radial loads are common.

Weighing 47.5kg, it’s built to withstand demanding conditions. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6338 M/C4H
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 190 mm
  • Bore Dia Tolerance -0.022mm to 0
  • Outer Dia 400 mm
  • Outer Dia Tolerance -0.028mm to 0
  • Width 78 mm
  • Width Tolerance -0.3mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 83404 lbf
  • Static Radial Load 96668 lbf
  • Max Speed 3000 rpm
  • Weight 47500 g
  • price（$） 1290.942
Single Row Deep Groove Ball Bearings 6338 M/C4H dimension drawing
Download DWG Download PDF

Features

Performance Features of 6338 M/C4H Bearing

6338 M/C4H Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 83,404 lbf, ensuring reliable performance in heavy-duty applications.

The machined metal cage maintains ball alignment, reducing friction and extending service life.
With a maximum speed of 3,000 rpm, it balances durability and efficiency for industrial use.

6338 M/C4H Bearing operates in temperatures from -30°C to 120°C, suitable for varied environments.
Its open design simplifies maintenance, making it a practical choice for long-term use.

Application

Industrial Uses of 6338 M/C4H Bearing
6338 M/C4H Bearing is commonly used in heavy machinery like industrial fans and large conveyor systems, where its radial load capacity and durability are key. The open design and C4 clearance make it suitable for high-temperature environments.

What Makes 6338 M/C4H Bearing a Preferred Choice?
In automotive applications, 6338 M/C4H Bearing handles radial loads in large gearboxes and drivetrains, ensuring smooth operation. Its metric sizing and chrome steel construction offer compatibility and longevity.

Built for Heavy-Duty Use: 6338 M/C4H Bearing
For automation systems, 6338 M/C4H Bearing supports robotic arms and large-scale 3D printers, where precision and load capacity matter. The machined metal cage adds stability during high-speed rotations.

Light-Duty vs Heavy-Duty: Best Uses for 6338 M/C4H Bearing
In consumer electronics, 6338 M/C4H Bearing fits large appliances like industrial washing machines, balancing performance and noise reduction. Its temperature range suits varied operating conditions.
