Single Row Deep Groove Ball Bearings 16076 MA

Single Row Deep Groove Ball Bearings 16076 MA

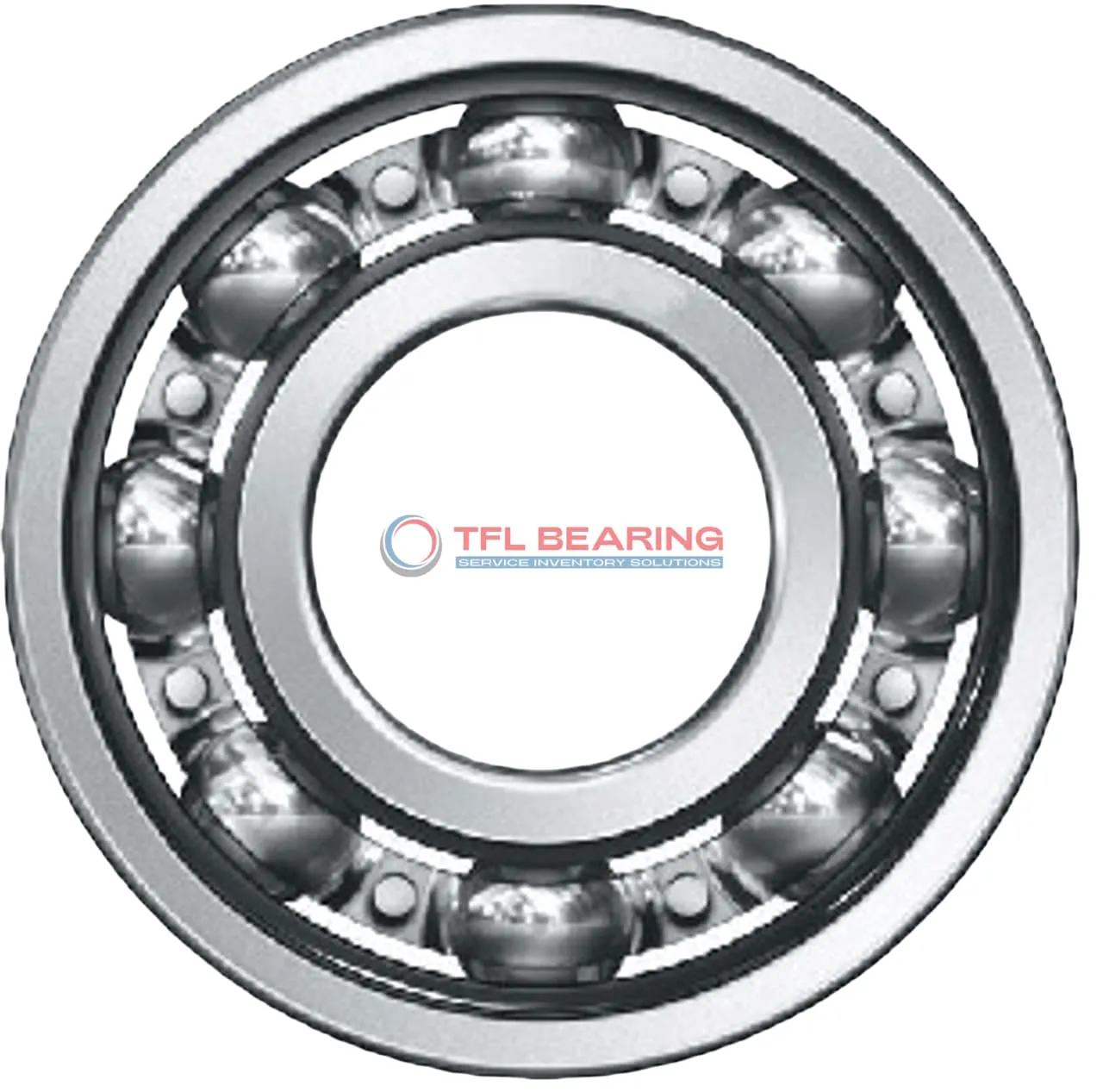

The 16076 MA is a single-row deep groove ball bearing with a 380mm bore and 560mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 84753 lbf and operates smoothly at speeds up to 1400 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial machinery or large equipment where radial load capacity is key.

Weighing 51kg, it’s built for robust performance. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 16076 MA
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 380 mm
  • Bore Dia Tolerance -0.03mm to 0
  • Outer Dia 560 mm
  • Outer Dia Tolerance -0.038mm to 0
  • Width 57 mm
  • Width Tolerance -0.4mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 84753 lbf
  • Static Radial Load 139382 lbf
  • Max Speed 1400 rpm
  • Weight 51000 g
Single Row Deep Groove Ball Bearings 16076 MA dimension drawing
Download DWG Download PDF

Features

Performance Features of 16076 MA Bearing

16076 MA Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 84,753 lbf, making it suitable for heavy-duty applications.

The stainless steel cage ensures proper ball alignment, reducing friction and wear.
With a maximum speed of 1,400 rpm, it delivers reliable performance in various conditions.

16076 MA Bearing operates in temperatures from -30° to 120°C, adapting to diverse environments.
Its open design simplifies maintenance, while the P6 tolerance class ensures precision.

Application

Industrial Uses of 16076 MA Bearing
16076 MA Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and compressors, where its robust design handles significant radial loads. The open seal type allows for easy lubrication, ensuring long service life in demanding conditions.

Where Is 16076 MA Bearing Used?
You’ll often find 16076 MA Bearing in wind turbine systems, where its high load capacity and precision tolerance (P6 class) are essential for smooth operation. The chrome steel construction also makes it suitable for harsh outdoor environments.

Built for Heavy-Duty Use: 16076 MA Bearing
16076 MA Bearing excels in mining equipment, supporting components like crushers and conveyors that face constant heavy loads. Its stainless steel cage adds durability, reducing wear even in gritty conditions.

Automotive vs Aerospace: Applications of 16076 MA Bearing
In automotive applications, 16076 MA Bearing might be used in large truck transmissions, while in aerospace, it could support ground-handling equipment. The metric sizing ensures compatibility with various international standards.

Practical Applications of 16076 MA Bearing
For industrial fans and blowers, 16076 MA Bearing offers reliable performance due to its high dynamic radial load capacity. The wide temperature range (-30° to 120°C) makes it versatile for different climates.
