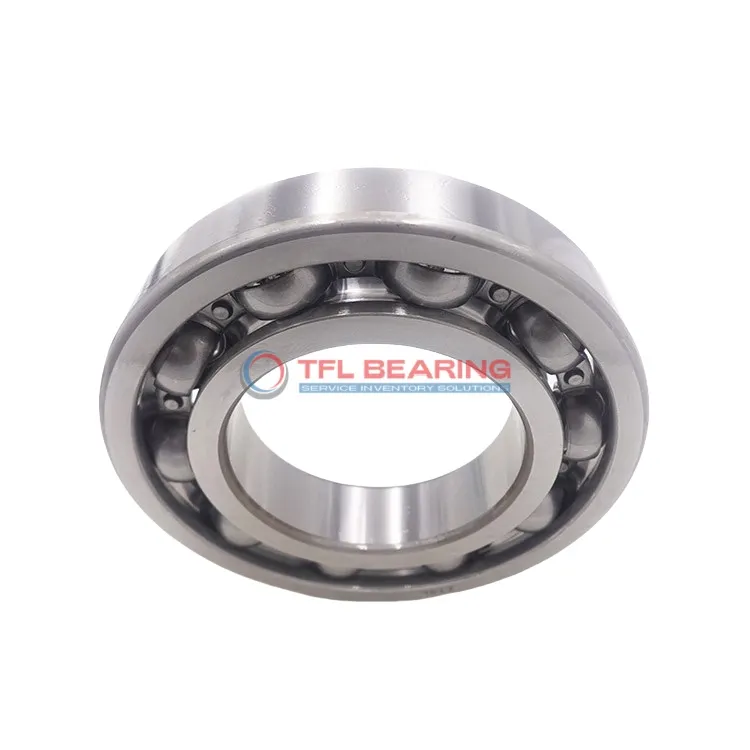

Single Row Deep Groove Ball Bearings 16028/W64H

Single Row Deep Groove Ball Bearings 16028/W64H

The 16028/W64H is a single-row deep groove ball bearing with a 140mm bore and 210mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 1812 lbf and operates smoothly at speeds up to 3000 RPM.

Its open design and solid oil lubrication ensure low maintenance, while the chrome steel cage offers durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 2000g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 16028/W64H
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 140 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 210 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 22 mm
  • Width Tolerance -0.250mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1812 lbf
  • Static Radial Load 19446 lbf
  • Max Speed 3000 rpm
  • Weight 2000 g
Single Row Deep Groove Ball Bearings 16028/W64H dimension drawing
Download DWG Download PDF

Features

Performance Features of 16028/W64H Bearing

16028/W64H Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 1812 lbf, ensuring reliable performance in various applications.

The solid oil lubrication in 16028/W64H Bearing reduces friction and extends maintenance intervals.
With a maximum speed of 3,000 rpm, it balances efficiency and durability.

16028/W64H Bearing operates smoothly in temperatures ranging from -30°C to 120°C.
Its open design simplifies installation, making it suitable for diverse industrial uses.

Application

Common Applications of 16028/W64H Bearing
In industrial settings, 16028/W64H Bearing is commonly used in machinery like pumps and electric motors, where its radial load capacity ensures reliable performance. The solid oil lubrication helps maintain smooth operation even in demanding conditions.

Where Is 16028/W64H Bearing Used?
You’ll often find 16028/W64H Bearing in automotive applications such as wheel hubs and transmissions, thanks to its durability and precise tolerances. Its chrome steel construction also makes it suitable for high-temperature environments.

Built for Heavy-Duty Use: 16028/W64H Bearing
This bearing excels in construction equipment, handling heavy radial loads with ease. The open design allows for easy inspection and maintenance, making it a practical choice for rugged applications.

Automotive vs Industrial: Applications of 16028/W64H Bearing
In automotive systems, 16028/W64H Bearing supports components like alternators and fans, while in industrial settings, it’s ideal for conveyor systems. Its versatility and robust design make it a go-to solution across sectors.

Perfect Fit for Automation: 16028/W64H Bearing
16028/W64H Bearing is well-suited for robotic arms and automated assembly lines, where precision and reliability are key. The solid oil lubrication ensures consistent performance over long periods.
