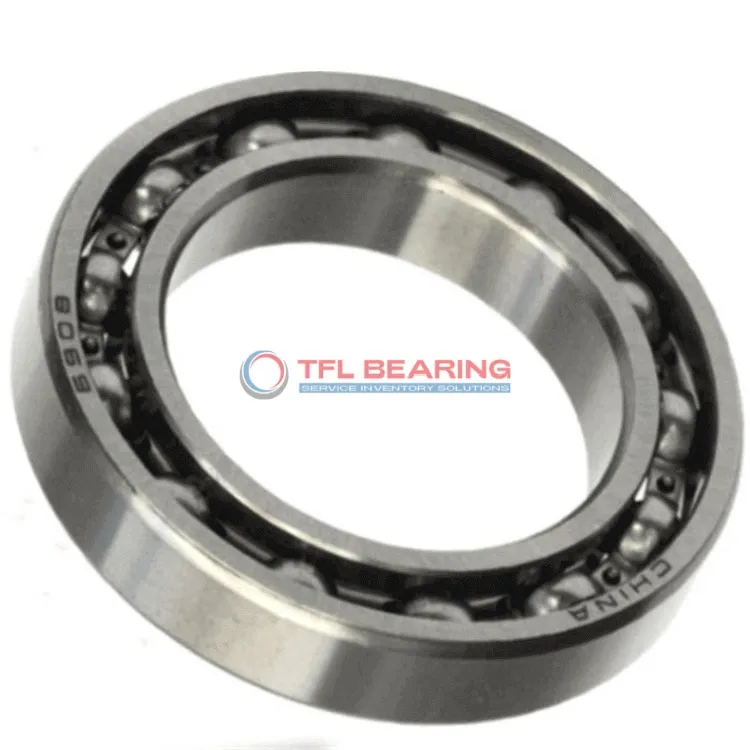

Single Row Deep Groove Ball Bearings 16014/C3W64

Single Row Deep Groove Ball Bearings 16014/C3W64

The 16014/C3W64 is a single-row deep groove ball bearing with a 70mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 6025 lbf and runs smoothly at speeds up to 5000 RPM.

Its open design and solid oil lubrication ensure low maintenance, while the C3 radial clearance allows for slight misalignment. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 430g, it’s a compact yet robust option. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 16014/C3W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 13 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 6025 lbf
  • Static Radial Load 5305 lbf
  • Max Speed 5000 rpm
  • Weight 430 g
Single Row Deep Groove Ball Bearings 16014/C3W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 16014/C3W64 Bearing

16014/C3W64 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 6025 lbf.
Its single row deep groove design ensures smooth operation and efficient load distribution.
The solid oil lubrication reduces maintenance needs while extending the bearing’s service life.
With a maximum speed of 5,000 rpm, it performs reliably in various industrial applications.

Application

Key Fields for 16014/C3W64 Bearing
In industrial settings, 16014/C3W64 Bearing is commonly used in electric motors and pumps, where its radial load capacity ensures steady operation. The open design and solid oil lubrication make it suitable for environments with moderate contamination.

How Does 16014/C3W64 Bearing Support High-Speed Operations?
With a max speed of 5000 rpm, 16014/C3W64 Bearing works well in machinery like conveyor systems and gearboxes. The C3 clearance allows for thermal expansion, making it reliable in varying temperatures.

Built for Heavy-Duty Use: 16014/C3W64 Bearing
This bearing’s chrome steel construction provides durability in automotive applications such as wheel hubs and transmissions. Its metric sizing ensures compatibility with a range of vehicle designs.

Automotive vs Industrial: Applications of 16014/C3W64 Bearing
In automotive systems, 16014/C3W64 Bearing handles radial loads in components like alternators. For industrial use, it’s found in machinery where consistent performance and easy maintenance are key.

Perfect Fit for Automation: 16014/C3W64 Bearing
In robotic arms and automated assembly lines, 16014/C3W64 Bearing offers smooth motion thanks to its deep groove design. The solid oil lubrication reduces friction, extending service life.
