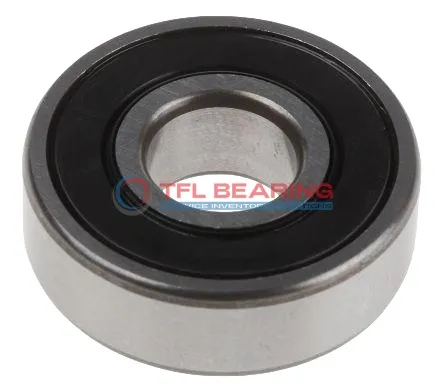

Single Row Deep Groove Ball Bearings 16005-2RS1

Single Row Deep Groove Ball Bearings 16005-2RS1

The 16005-2RS1 is a compact single-row deep groove ball bearing, measuring 25mm by 47mm by 8mm, made from sturdy chrome steel. It handles radial loads up to 1574 lbf and can spin at speeds up to 11000 RPM.

Sealed on both sides, it keeps dirt out and grease in, making it low-maintenance. The chrome steel cage adds durability, ensuring smooth operation over time.

With a temperature range of -30°C to 120°C, it’s suitable for various environments. This model is interchangeable with SKF bearings, offering a reliable replacement option.

Ideal for small electric motors or appliances where space is tight but performance matters. Compliant with RoHS and REACH standards, it’s safe for most applications. Weighing just 60g, it’s lightweight yet robust.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 16005-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 8 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1574 lbf
  • Static Radial Load 1034 lbf
  • Max Speed 11000 rpm
  • Weight 60 g
Single Row Deep Groove Ball Bearings 16005-2RS1 dimension drawing
Download DWG Download PDF

Features

How Does 16005-2RS1 Bearing Reduce Friction?

16005-2RS1 Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
Its sealed construction protects against dust and moisture, ensuring consistent performance.

The chrome steel rings and balls in 16005-2RS1 Bearing minimise friction, enhancing efficiency.
With a dynamic radial load capacity of 1574 lbf, it handles demanding applications reliably.

16005-2RS1 Bearing operates quietly, making it suitable for precision equipment.
Its temperature range of -30°C to 120°C ensures adaptability in various environments.

Application

Common Applications of 16005-2RS1 Bearing
16005-2RS1 Bearing is widely used in small electric motors, such as those found in household appliances and power tools. Its sealed design helps keep out dust and moisture, ensuring longer service life in everyday conditions.

In automotive applications, 16005-2RS1 Bearing fits well in components like alternators and cooling fans. The chrome steel construction provides good wear resistance, while the ABEC 1 tolerance offers reliable performance for standard vehicle systems.

For light industrial machinery, 16005-2RS1 Bearing handles radial loads in equipment like conveyor rollers and small gearboxes. The compact size and sealed features make it suitable for environments where space and cleanliness are considerations.

You might also find 16005-2RS1 Bearing in office equipment like printers and scanners. Its smooth operation and low maintenance needs make it a practical choice for devices requiring quiet and consistent performance.
