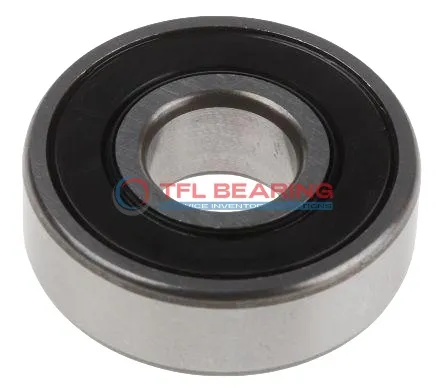

Single Row Deep Groove Ball Bearings 61905-2RS1/C3

Single Row Deep Groove Ball Bearings 61905-2RS1/C3

The 61905-2RS1/C3 is a compact single-row deep groove ball bearing, measuring 25mm by 42mm by 9mm, crafted from durable chrome steel. It supports radial loads up to 1578 lbf and operates smoothly at speeds up to 22000 RPM.

Its sealed design keeps dirt out and grease in, reducing maintenance needs. The C3 radial clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. It’s well-suited for small electric motors or appliances where space is limited.

Weighing just 0.043kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s safe for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61905-2RS1/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 9 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1578 lbf
  • Static Radial Load 967 lbf
  • Max Speed 22000 rpm
  • Weight 0.043 kg
  • price（$） 16.992
Single Row Deep Groove Ball Bearings 61905-2RS1/C3 dimension drawing
Download DWG Download PDF

Features

Why Choose 61905-2RS1/C3 Bearing for Precision Tasks?

61905-2RS1/C3 Bearing features a sealed design, protecting it from dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 1578 lbf, it handles demanding conditions while maintaining smooth operation.
The bearing’s C3 clearance allows for thermal expansion, making it suitable for varied temperature ranges.

Operating at speeds up to 22,000 rpm, it balances high performance with reliability.
Its compact size (25 mm×42 mm×9 mm) makes it ideal for space-constrained applications.

Application

Common Applications of 61905-2RS1/C3 Bearing
In industrial settings, 61905-2RS1/C3 Bearing is commonly used in electric motors and pumps, where its sealed design helps keep contaminants out. The C3 clearance ensures smooth operation even under varying thermal conditions.

Where Is 61905-2RS1/C3 Bearing Used?
You’ll often find 61905-2RS1/C3 Bearing in automotive applications like alternators and small gearboxes, thanks to its reliable radial load handling. Its compact size makes it a great fit for space-constrained designs.

Built for Heavy-Duty Use: 61905-2RS1/C3 Bearing
This bearing works well in household appliances like washing machines, where its chrome steel construction offers long-lasting performance. The sealed design also reduces maintenance needs.

Automotive vs Industrial: Applications of 61905-2RS1/C3 Bearing
In automotive systems, 61905-2RS1/C3 Bearing supports components like fans and small transmissions. For industrial use, it’s a go-to choice for light machinery and conveyor systems.

Perfect Fit for Automation: 61905-2RS1/C3 Bearing
61905-2RS1/C3 Bearing is ideal for robotics and automated systems, where precision and low maintenance are key. Its high-speed capability ensures consistent performance in repetitive tasks.
