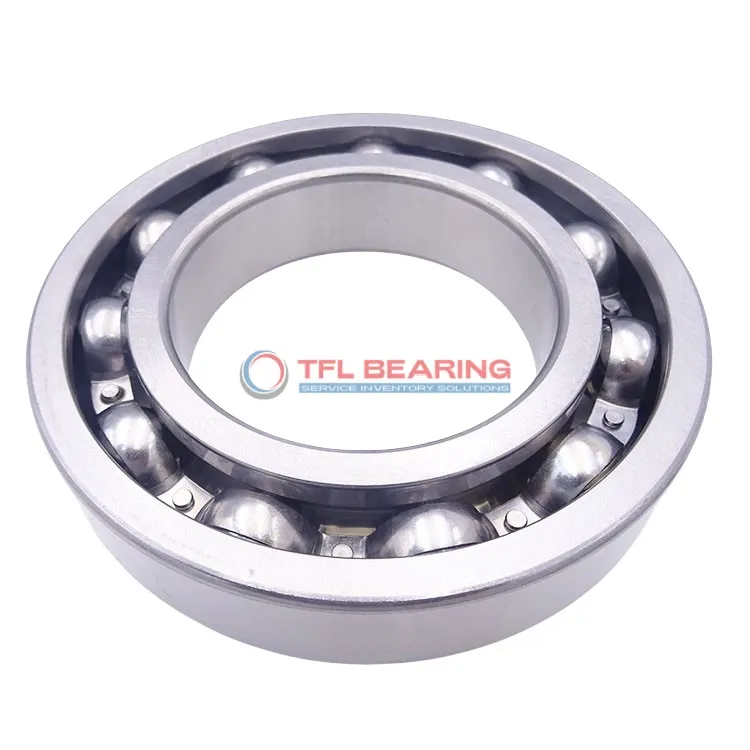

Single Row Deep Groove Ball Bearings 61926

Single Row Deep Groove Ball Bearings 61926

The 61926 is a single-row deep groove ball bearing with a 130mm bore and 180mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 14613 lbf and runs smoothly at speeds up to 4500 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing operates reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 1.6kg, it balances strength and manageability. Compliant with RoHS and REACH standards for safe usage.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61926
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 130 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 24 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 14613 lbf
  • Static Radial Load 15062 lbf
  • Max Speed 4500 rpm
  • Weight 1.6 kg
  • price（$） 253.08
Single Row Deep Groove Ball Bearings 61926 dimension drawing
Download DWG Download PDF

Features

Performance Features of 61926 Bearing

61926 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 14613 lbf, ensuring dependable performance in various applications.

The stainless steel cage maintains ball alignment, reducing friction and extending operational life.
With a maximum speed of 4,500 rpm, it delivers a balance of durability and smooth operation.

61926 Bearing operates efficiently in temperatures ranging from -30° to 120°C.
Its precision P6 tolerance class ensures consistent performance in demanding conditions.

Application

Common Applications of 61926 Bearing
In industrial settings, 61926 Bearing is frequently used in machine tools and pumps due to its ability to handle radial loads efficiently. The open design simplifies lubrication, ensuring long service life in demanding conditions.

Where Is 61926 Bearing Used?
You’ll find 61926 Bearing in automotive components like electric motors and transmissions, where its chrome steel construction offers reliable performance. Its metric dimensions make it a versatile fit for various vehicle designs.

Ideal for Precision: 61926 Bearing
For medical devices such as diagnostic equipment, 61926 Bearing provides smooth operation thanks to its stainless steel cage. The tight tolerances ensure consistent performance in critical applications.

Automotive vs Industrial: Applications of 61926 Bearing
In automotive systems, 61926 Bearing supports high-speed rotations in gearboxes, while in industrial machinery, it excels in conveyor systems. Its durability makes it suitable for both light and heavy-duty tasks.

Practical Applications of 61926 Bearing
In household appliances like washing machines, 61926 Bearing ensures quiet and efficient operation. The wide temperature range allows it to perform reliably in various environments.
