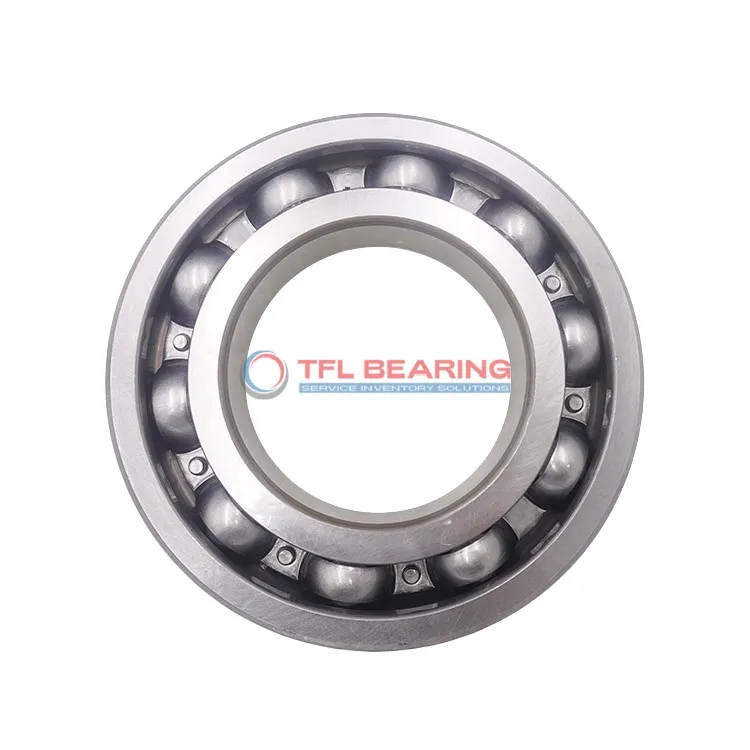

Single Row Deep Groove Ball Bearings 6026 M/C3S0

Single Row Deep Groove Ball Bearings 6026 M/C3S0

The 6026 M/C3S0 is a single row deep groove ball bearing with a 130mm bore and 200mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 25179 lbf and operates smoothly at speeds up to 5600 RPM.

Its open design and machined metal cage ensure durability and easy maintenance. The bearing performs reliably in temperatures ranging from -30°C to 150°C.

With a C3 radial clearance, it offers flexibility in various applications. This model is interchangeable with SKF bearings, making it a practical choice for replacements.

Ideal for industrial machinery or heavy equipment where radial loads are common. Weighing 3.75kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6026 M/C3S0
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 130 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 33 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 150 °C
  • Dynamic Radial Load 25179 lbf
  • Static Radial Load 22481 lbf
  • Max Speed 5600 rpm
  • Weight 3.75 kg
  • price（$） 81.378
Single Row Deep Groove Ball Bearings 6026 M/C3S0 dimension drawing
Download DWG Download PDF

Features

How Does 6026 M/C3S0 Bearing Reduce Friction?

6026 M/C3S0 Bearing features a single row deep groove design, optimised for smooth radial load distribution.
Its chrome steel construction ensures durability while reducing friction during operation.

The machined metal cage maintains ball alignment, enhancing performance under heavy loads.
With a dynamic radial load capacity of 25179 lbf, it handles demanding applications efficiently.

6026 M/C3S0 Bearing operates within a wide temperature range of -30° to 150°C, suitable for various environments.
Its open design allows for easy maintenance and lubrication adjustments.

The ABEC 1 tolerance class ensures reliable precision in industrial settings.
At 5,600 rpm maximum speed, it balances performance and longevity.

Application

Industrial Uses of 6026 M/C3S0 Bearing
This bearing is commonly used in heavy machinery like industrial pumps and compressors, where its deep groove design handles radial loads efficiently. The C3 clearance ensures reliable performance even under thermal expansion.

Where Is 6026 M/C3S0 Bearing Used?
You’ll often find it in automotive applications such as wheel hubs and transmissions, thanks to its robust chrome steel construction. The open seal design simplifies lubrication for long-term use.

Perfect Fit for Automation: 6026 M/C3S0 Bearing
It works well in robotic arms and conveyor systems, where smooth rotation is essential. The machined metal cage adds durability in high-speed scenarios.

Medical vs Industrial: Where 6026 M/C3S0 Bearing Excels
While it’s suitable for industrial gearboxes, its precision also makes it a fit for medical imaging devices. The temperature range accommodates various operating conditions.

Essential Roles of 6026 M/C3S0 Bearing
In household appliances like washing machines, it ensures quiet and efficient operation. The ABEC 1 tolerance balances cost and performance for everyday use.
