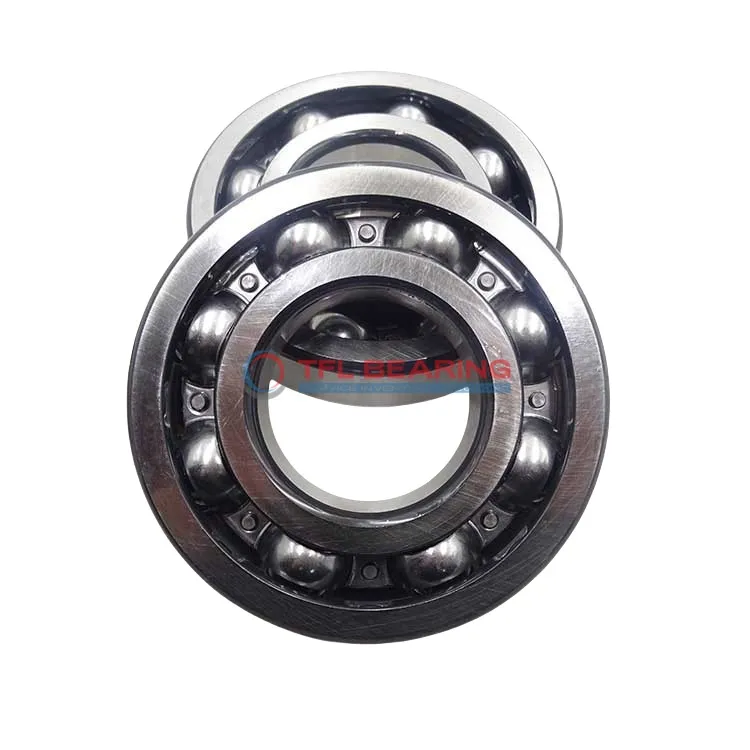

Single Row Deep Groove Ball Bearings 61938 MA

Single Row Deep Groove Ball Bearings 61938 MA

The 61938 MA is a single-row deep groove ball bearing with a 190mm bore and 260mm outer diameter, crafted from sturdy chrome steel for reliable performance. It handles radial loads up to 26303 lbf and operates smoothly at speeds up to 4300 RPM.

Its open design allows for easy lubrication, while the stainless steel cage ensures durability under heavy use. The bearing works efficiently in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for industrial machinery or electric motors where radial load support is essential.

Weighing 5.21kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61938 MA
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 190 mm
  • Bore Dia Tolerance -0.022mm to 0
  • Outer Dia 260 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 33 mm
  • Width Tolerance -0.3mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 26303 lbf
  • Static Radial Load 30124 lbf
  • Max Speed 4300 rpm
  • Weight 5.21 kg
  • price（$） 602.244
Single Row Deep Groove Ball Bearings 61938 MA dimension drawing
Download DWG Download PDF

Features

Performance Features of 61938 MA Bearing

61938 MA Bearing is crafted with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 26303 lbf, ensuring reliable performance in various applications.

The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 4,300 rpm, it delivers a balance of durability and efficiency.

61938 MA Bearing operates smoothly in temperatures ranging from -30° to 120°C.
Its open design allows for easy lubrication and maintenance, enhancing its service life.

The precision P6 tolerance ensures consistent performance in demanding conditions.
This makes 61938 MA Bearing a dependable choice for industrial applications.

Application

Industrial Uses of 61938 MA Bearing
61938 MA Bearing is commonly used in heavy machinery like industrial pumps and electric motors, where its deep groove design handles radial loads efficiently. The open seal type allows for easy lubrication, extending its service life in demanding conditions.

Where Is 61938 MA Bearing Used?
You’ll often find 61938 MA Bearing in conveyor systems and gearboxes, thanks to its robust chrome steel construction. Its P6 tolerance class ensures precise performance, even in high-speed applications.

Built for Heavy-Duty Use: 61938 MA Bearing
This bearing excels in applications like agricultural equipment and construction machinery, where durability is key. The stainless steel cage adds extra resistance to wear, making it a reliable choice for harsh environments.

Automotive vs Industrial: Applications of 61938 MA Bearing
In automotive systems, 61938 MA Bearing supports components like wheel hubs, while in industrial settings, it’s ideal for large fans and compressors. Its metric sizing makes it versatile across different equipment types.

Perfect Fit for Automation: 61938 MA Bearing
61938 MA Bearing works well in robotic arms and automated assembly lines, where smooth rotation is essential. The wide temperature range ensures consistent performance, even in varying operational conditions.
