Single Row Deep Groove Ball Bearings 6015 JEM

Single Row Deep Groove Ball Bearings 6015 JEM

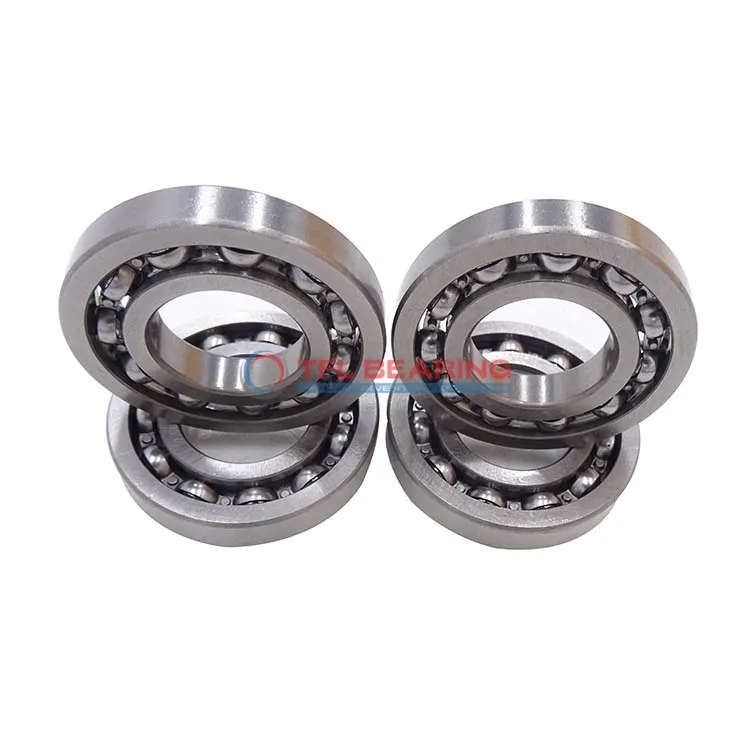

The 6015 JEM is a single-row deep groove ball bearing with a 75mm bore and 115mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 8902 lbf and operates smoothly at speeds up to 5600 RPM.

Its open design simplifies maintenance, while the chrome steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 638g, it balances strength and compactness. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6015 JEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 115 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 20 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 8902 lbf
  • Static Radial Load 7531 lbf
  • Max Speed 5600 rpm
  • Weight 638 g
  • price（$） 17.172
Single Row Deep Groove Ball Bearings 6015 JEM dimension drawing
Download DWG Download PDF

Features

Core Advantages of 6015 JEM Bearing

6015 JEM Bearing features a single row deep groove design, ideal for handling radial loads efficiently.

Its chrome steel construction ensures durability and resistance to wear in various applications.

With a dynamic radial load capacity of 8902 lbf, it performs reliably under demanding conditions.

The open seal type allows for easy maintenance and lubrication adjustments as needed.

Application

Industrial Uses of 6015 JEM Bearing
The 6015 JEM Bearing is commonly used in industrial machinery like pumps and electric motors, where its radial load capacity ensures reliable performance. Its open design simplifies lubrication and maintenance, making it suitable for continuous operation.

What Makes 6015 JEM Bearing a Preferred Choice?
In automotive applications, 6015 JEM Bearing fits well in wheel hubs and transmission systems, thanks to its durable chrome steel construction. The metric sizing ensures compatibility with a variety of vehicle designs.

Perfect Fit for Automation: 6015 JEM Bearing
For robotics and automation, 6015 JEM Bearing offers smooth rotation in robotic arms and conveyor systems. Its ABEC 1 tolerance provides sufficient precision for most automated tasks.

Light-Duty vs Heavy-Duty: Best Uses for 6015 JEM Bearing
In light-duty applications like household appliances, 6015 JEM Bearing ensures quiet and efficient operation. For heavier tasks, it handles radial loads in industrial gearboxes without compromising durability.

Medical vs Industrial: Where 6015 JEM Bearing Excels
While 6015 JEM Bearing isn’t typically used in medical devices, it shines in industrial settings like compressors and fans. Its temperature range and load capacity make it versatile for various environments.
