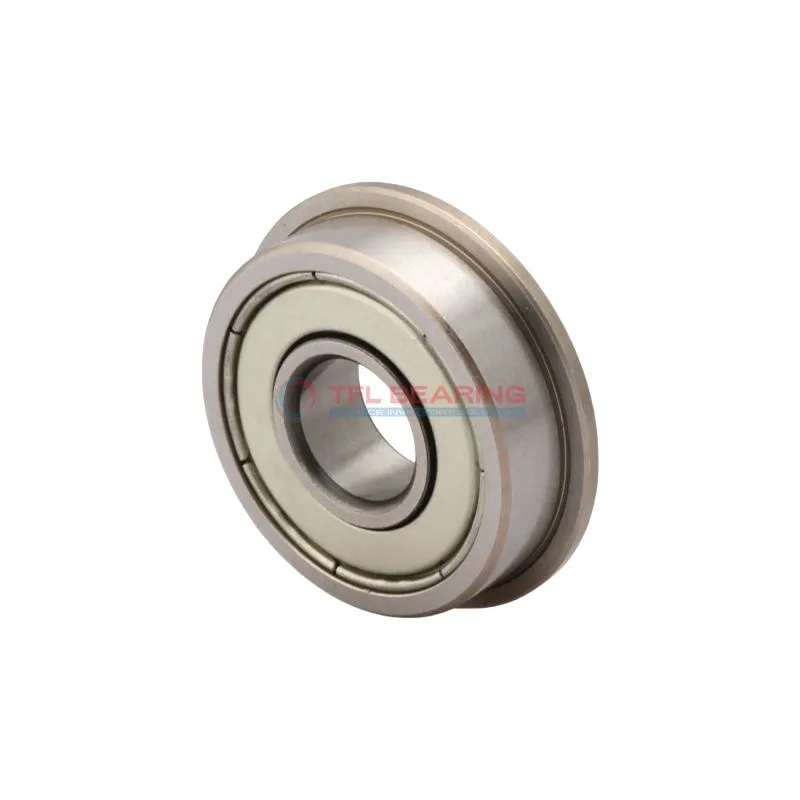

Flanged Deep Groove Ball Bearings W 626 R-2Z

Flanged Deep Groove Ball Bearings W 626 R-2Z

The W 626 R-2Z is a compact flanged deep groove ball bearing, measuring 6mm by 19mm with a 6mm width. Made entirely from stainless steel, it offers good corrosion resistance and durability.

Its shielded design keeps dirt out while maintaining smooth rotation at speeds up to 43,000 RPM. The flange provides secure mounting, preventing slippage during operation.

With a dynamic radial load capacity of 344 lbf, it’s suitable for small machinery and precision equipment. The grease lubrication ensures quiet performance across a temperature range of -30°C to 120°C.

This lightweight bearing (just 8.8 grams) is ideal for applications like small motors, medical devices, or office equipment where space is limited. It’s interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 626 R-2Z
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 6 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 22 mm
  • Flange Thickness 1.5 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 344 lbf
  • Static Radial Load 132 lbf
  • Max Speed 43000 rpm
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0088 kg
  • Price（$） 2
Flanged Deep Groove Ball Bearings W 626 R-2Z dimension drawing
Download DWG Download PDF

Features

How Does W 626 R-2Z Bearing Reduce Friction?

W 626 R-2Z Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.
The shielded design protects against contaminants, maintaining consistent performance over time.

Its dynamic radial load capacity of 344 lbf makes it suitable for various applications.
The grease lubrication further reduces friction, enhancing efficiency and longevity.

With a maximum speed of 43,000 rpm, it delivers reliable performance in high-speed scenarios.
The flanged design provides secure mounting, preventing misalignment during operation.

Application

Industrial Uses of W 626 R-2Z Bearing
W 626 R-2Z Bearing is commonly used in small industrial motors and pumps, where its shielded design helps keep contaminants out. The stainless steel construction ensures it performs well in humid or corrosive environments.

How Does W 626 R-2Z Bearing Improve Performance?
In automation systems, W 626 R-2Z Bearing reduces friction in compact gearboxes, enhancing efficiency. Its flanged design provides better alignment in tight spaces, making installation simpler.

Built for Heavy-Duty Use: W 626 R-2Z Bearing
W 626 R-2Z Bearing handles radial loads smoothly in conveyor rollers and small machinery. The grease lubrication ensures long service life with minimal maintenance required.

Medical vs Industrial: Where W 626 R-2Z Bearing Excels
W 626 R-2Z Bearing is suitable for medical devices like dental tools, offering quiet operation. In industrial settings, it’s reliable for light-duty applications such as small fans or printers.

Practical Applications of W 626 R-2Z Bearing
W 626 R-2Z Bearing works well in household appliances like blenders, where its small size and durability are key. The metric dimensions make it easy to replace in various European-made devices.
