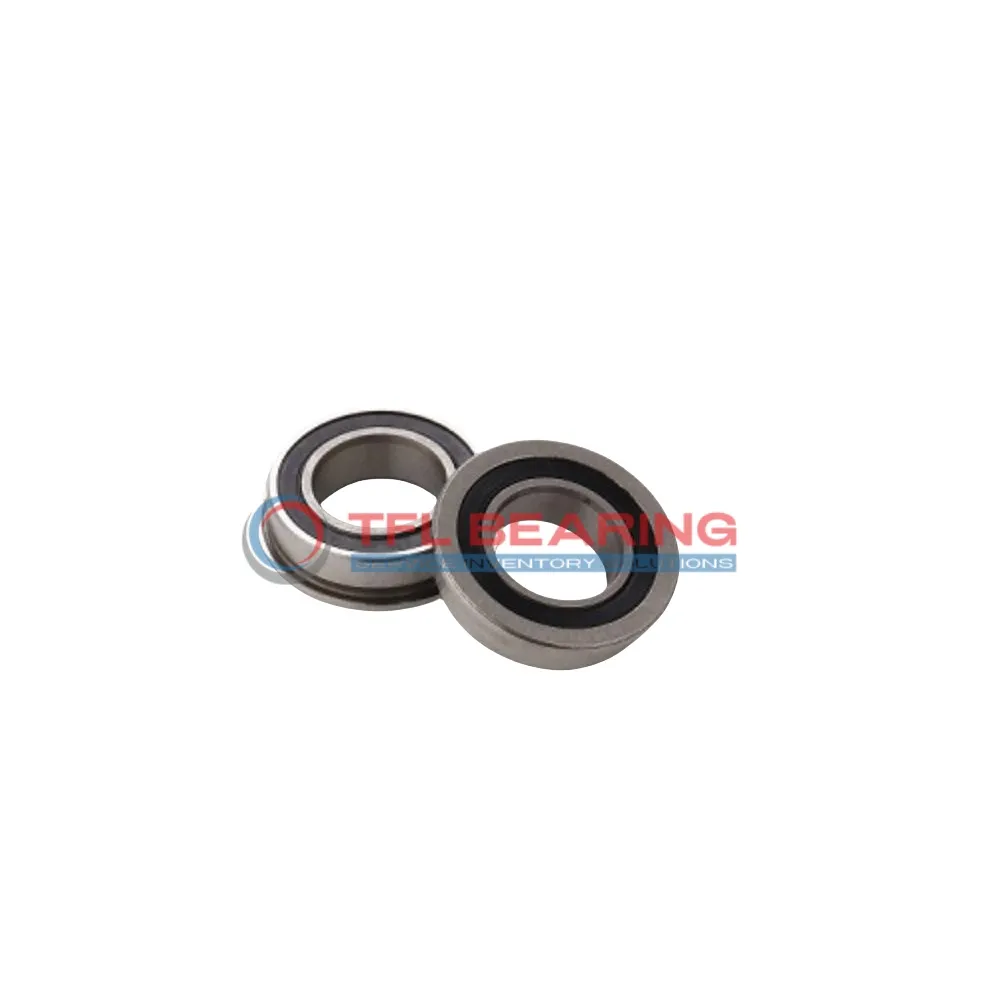

Flanged Deep Groove Ball Bearings W 619/5 R-2RS1

Flanged Deep Groove Ball Bearings W 619/5 R-2RS1

The W 619/5 R-2RS1 is a compact flanged deep groove ball bearing, measuring just 5mm by 13mm with a 4mm width. Made entirely from stainless steel, it offers good resistance to wear and corrosion.

This sealed bearing handles radial loads up to 171 lbf and spins smoothly at speeds up to 32,000 RPM. Its grease lubrication ensures quiet operation and requires minimal maintenance.

The integrated flange provides secure mounting, preventing slippage in tight spaces. With a temperature range of -30°C to 120°C, it’s versatile for various environments.

Ideal for small machinery or precision instruments where space is limited. Compliant with RoHS and REACH standards, it’s a reliable choice for eco-conscious applications. Weighing only 2.6 grams, it’s lightweight yet durable.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 619/5 R-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 13 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 4 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 15 mm
  • Flange Thickness 1 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 171 lbf
  • Static Radial Load 75 lbf
  • Max Speed 32000 rpm
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0026 kg
  • Price（$） 1.7

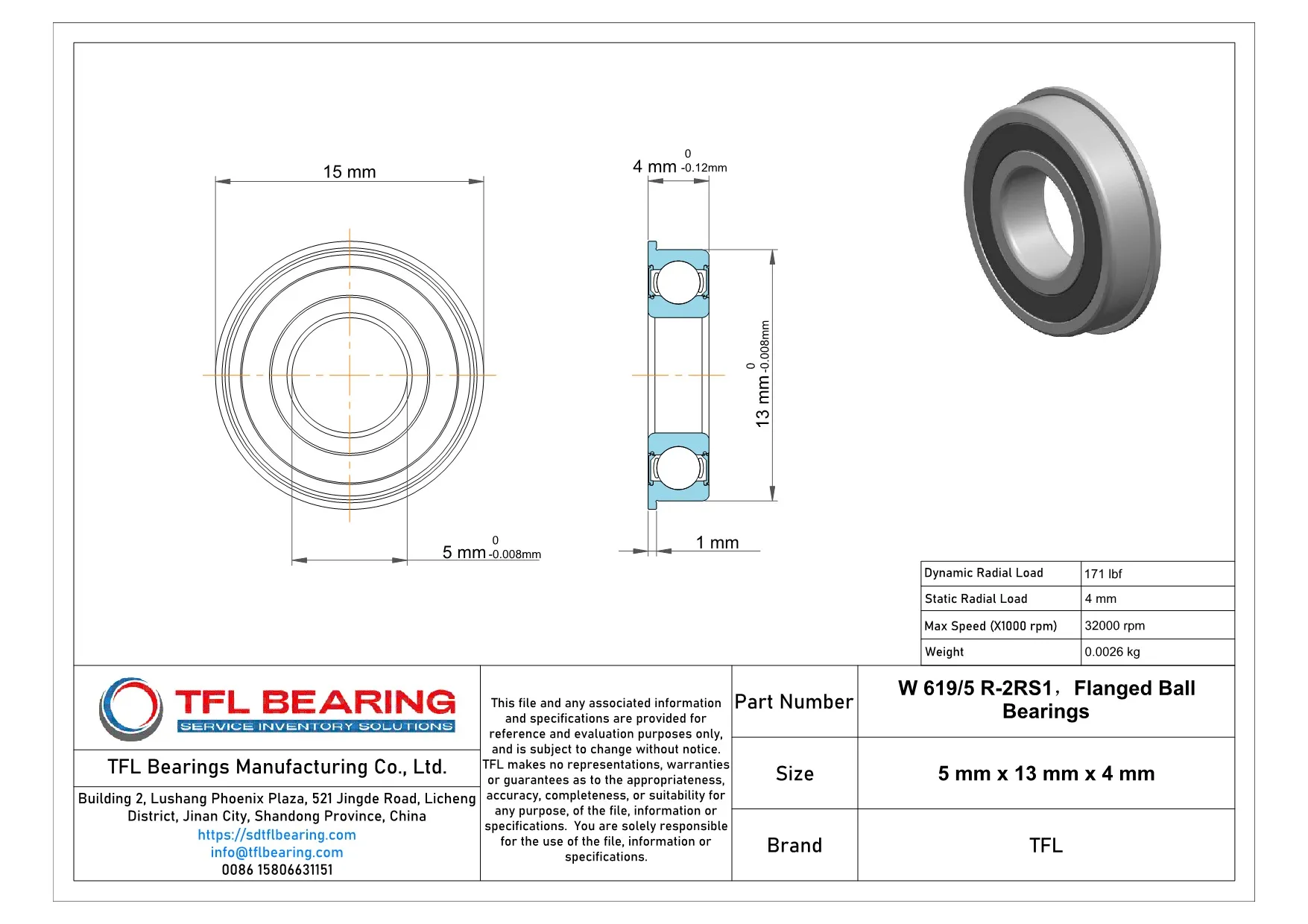

Flanged Deep Groove Ball Bearings W 619/5 R-2RS1 dimension drawing
Download DWG Download PDF

Features

How Does W 619/5 R-2RS1 Bearing Reduce Friction?

W 619/5 R-2RS1 Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.

Its sealed design retains lubrication effectively, reducing wear and maintenance needs.

The single-row construction and precision engineering allow it to handle radial loads efficiently.

With a maximum speed of 32,000 rpm, it offers reliable performance in various applications.

Application

Common Applications of W 619/5 R-2RS1 Bearing
W 619/5 R-2RS1 Bearing is widely used in small electric motors, such as those found in cooling fans or household appliances. Its compact size and sealed design help keep dust and moisture out, ensuring smooth operation over time.

In automation systems, W 619/5 R-2RS1 Bearing fits well in compact robotic arms or precision-guided mechanisms. The stainless steel construction offers good resistance to corrosion, which is handy in humid or demanding environments.

For medical devices like dental tools or small diagnostic equipment, W 619/5 R-2RS1 Bearing provides reliable performance due to its low friction and quiet operation. The grease lubrication ensures it runs smoothly without frequent maintenance.

You might also find W 619/5 R-2RS1 Bearing in consumer electronics, such as printers or small gadgets, where space is limited but durability matters. The flange design helps with easy mounting in tight spots.
