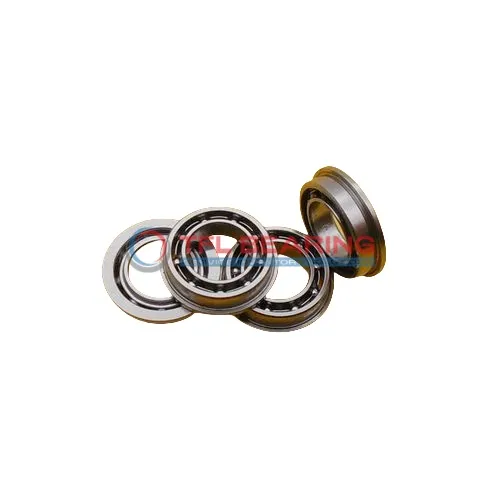

Flanged Deep Groove Ball Bearings D/W R4 R

Flanged Deep Groove Ball Bearings D/W R4 R

The D/W R4 R is a compact flanged deep groove ball bearing, measuring 0.25″ in bore and 0.625″ in outer diameter, with a flange extending to 0.69″. Made entirely from stainless steel, it offers good resistance to corrosion and wear.

It handles radial loads up to 192 lbf and can spin at speeds up to 60,000 RPM, making it suitable for high-speed applications. The open design allows for easy lubrication if needed.

The flange provides extra stability, helping to keep the bearing securely in place during operation. Its lightweight design, at just 0.0042 kg, makes it easy to handle and install.

Ideal for small machinery or instruments where space is limited but performance is key. Compliant with RoHS and REACH standards, ensuring safe and environmentally friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number D/W R4 R
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 0.25"
  • Bore Dia Tolerance -0.00019" to 0.00019"
  • Outer Dia 0.625"
  • Outer Dia Tolerance -0.0007" to -0.00031"
  • Width 0.19598"
  • Width Tolerance -0.005" to 0"
  • Flange Outer Dia 0.69"
  • Flange Thickness 0.04201"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 192 lbf
  • Static Radial Load 71 lbf
  • Max Speed 60000 rpm
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0042 kg
  • Price（$） 1.3
Flanged Deep Groove Ball Bearings D/W R4 R dimension drawing
Download DWG Download PDF

Features

Why Choose D/W R4 R Bearing for Precision Tasks?

D/W R4 R Bearing features a stainless steel construction, ensuring resistance to corrosion and wear.
Its single-row design with open seal type allows for smooth radial load handling.

The bearing’s dynamic radial load capacity of 192 lbf makes it suitable for high-precision applications.
With a maximum speed of 60,000 rpm, it delivers reliable performance in demanding conditions.

D/W R4 R Bearing’s tight tolerances ensure consistent operation, ideal for precision instruments.
The stainless steel cage maintains ball alignment, reducing friction and extending service life.

Application

Common Applications of D/W R4 R Bearing
D/W R4 R Bearing is widely used in small electric motors, where its compact size and stainless steel construction ensure reliable performance. The flanged design helps with easy mounting in tight spaces, making it ideal for hobbyist projects.

In conveyor systems, D/W R4 R Bearing handles radial loads efficiently, thanks to its durable stainless steel components. Its inch sizing makes it a convenient choice for equipment requiring precise measurements.

For medical devices like dental tools, D/W R4 R Bearing offers smooth operation due to its low friction design. The open seal allows for easy cleaning, which is essential in hygiene-sensitive environments.

Automotive applications such as dashboard mechanisms benefit from D/W R4 R Bearing’s resistance to wear. Its high-speed capability ensures consistent performance in various driving conditions.

In consumer electronics like printers, D/W R4 R Bearing provides quiet and efficient operation. The lightweight design helps reduce overall device weight without compromising durability.
