Single Row Deep Groove Ball Bearings 6206-2RSH/VA947

Single Row Deep Groove Ball Bearings 6206-2RSH/VA947

The 6206-2RSH/VA947 is a sealed single row deep groove ball bearing with a 30mm bore and 62mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 4564 lbf and runs smoothly at speeds up to 7500 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance, while the stainless steel cage adds durability. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. It’s ideal for electric motors, pumps, or other machinery where radial loads and sealed protection are needed.

Weighing just 0.2kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use in various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6206-2RSH/VA947
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 4564 lbf
  • Static Radial Load 2518 lbf
  • Max Speed 7500 rpm
  • Weight 0.2 kg

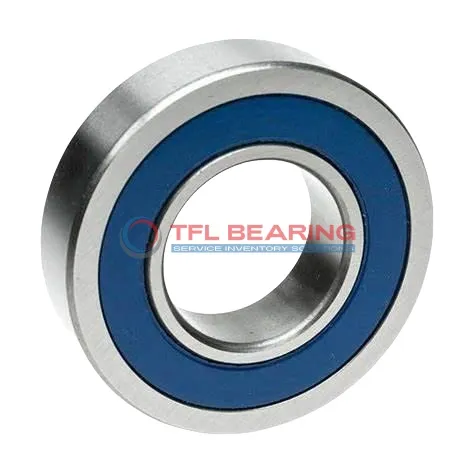

Single Row Deep Groove Ball Bearings 6206-2RSH/VA947 dimension drawing
Download DWG Download PDF

Features

Why Choose 6206-2RSH/VA947 Bearing for Precision Tasks?

6206-2RSH/VA947 Bearing features a single row deep groove design, optimised for radial load applications.
Its sealed construction protects against contaminants, ensuring smooth operation in various environments.

The chrome steel rings and balls provide durability, while the stainless steel cage maintains alignment.
With a dynamic radial load capacity of 4564 lbf, it handles demanding tasks with ease.

6206-2RSH/VA947 Bearing operates efficiently at speeds up to 7,500 rpm, balancing performance and longevity.
Its temperature range of -30° to 120°C makes it suitable for diverse working conditions.

Application

Industrial Uses of 6206-2RSH/VA947 Bearing
6206-2RSH/VA947 Bearing is commonly used in conveyor systems and electric motors, where its sealed design protects against dust and debris. The chrome steel construction ensures durability in demanding industrial environments.

What Makes 6206-2RSH/VA947 Bearing a Preferred Choice?
In automotive applications like alternators and water pumps, 6206-2RSH/VA947 Bearing offers reliable performance with its grease lubrication and stainless steel cage. Its metric sizing makes it a versatile fit for various vehicle models.

Perfect Fit for Automation: 6206-2RSH/VA947 Bearing
6206-2RSH/VA947 Bearing works well in robotic arms and automated assembly lines, thanks to its smooth operation and high-speed capability. The sealed design also reduces maintenance needs in continuous-use scenarios.

Medical vs Industrial: Where 6206-2RSH/VA947 Bearing Excels
While 6206-2RSH/VA947 Bearing handles industrial machinery with ease, it also suits medical devices like centrifuges, where precision and cleanliness are key. The temperature range ensures stability in varied operating conditions.

Where to Use 6206-2RSH/VA947 Bearing
For household appliances like washing machines, 6206-2RSH/VA947 Bearing provides quiet and efficient performance. Its sealed construction helps prolong lifespan in humid or dusty environments.
