Miniature Thrust Ball Bearings F7-17M

Miniature Thrust Ball Bearings F7-17M

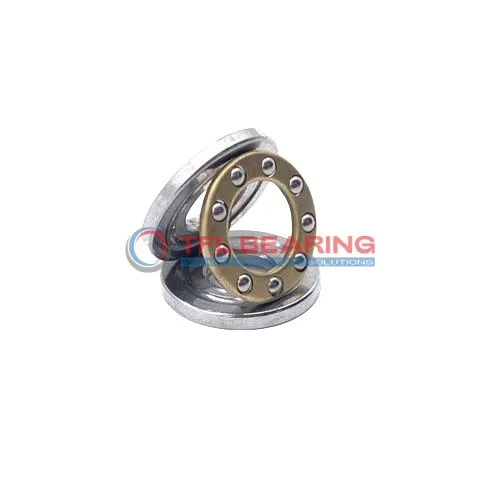

The F7-17M is a compact thrust ball bearing measuring 7mm by 17mm by 6mm, crafted from sturdy chrome steel for reliable performance. It supports thrust loads up to 585 lbf and operates smoothly at speeds up to 3500 RPM.

Its grooved raceway design ensures stable movement, while the brass cage adds durability. The open seal type makes lubrication straightforward, keeping maintenance simple.

This bearing works in temperatures from -30°C to 110°C, making it versatile for various environments. Weighing only 6.5g, it’s lightweight yet robust for its size.

Ideal for small machinery or precision equipment where space is limited. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F7-17M
  • Brand TFL
  • Interchangeable EZO
  • Bore Dia 7 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 17 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Outer Dia Shaft Washer 16.8 mm
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Ball Qty 8
  • Ball Dia 2.778 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Washers Type grooved raceway
  • For Load Direction Thrust
  • Inner Ring Type Standard
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Thrust Load 585 lbf
  • Static Thrust Load 508 lbf
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 3500 rpm
  • Weight 6.5 g
  • Price（$） 1.65

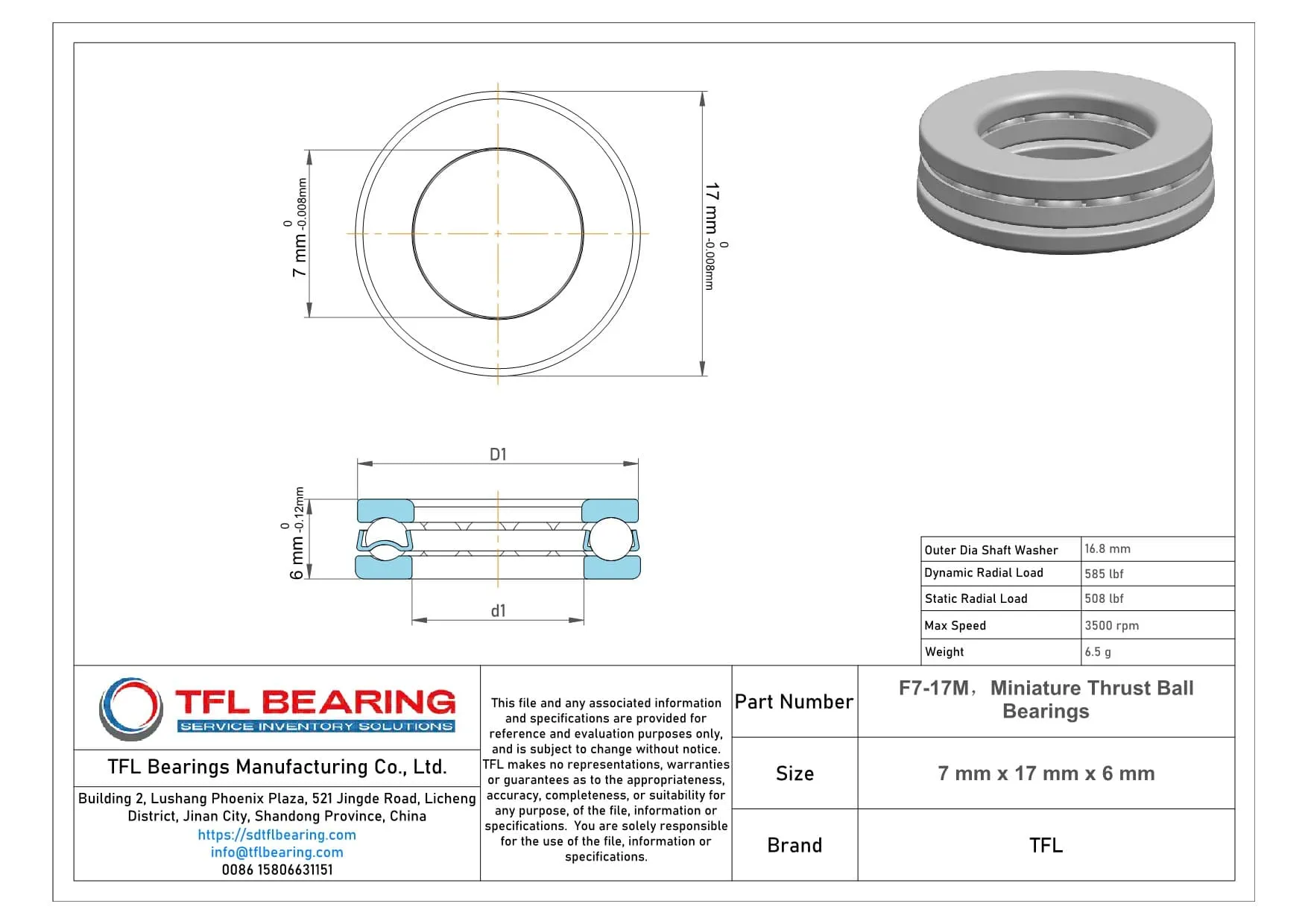

Miniature Thrust Ball Bearings F7-17M dimension drawing
Download DWG Download PDF

Features

How Does F7-17M Bearing Reduce Friction?

F7-17M Bearing features a grooved raceway design, which helps in reducing friction during operation.
The chrome steel rings and balls ensure smooth movement, even under thrust loads.

With a dynamic thrust load capacity of 585 lbf, it performs reliably in various applications.
The brass cage maintains ball alignment, contributing to its efficiency and longevity.

F7-17M Bearing operates well within a temperature range of -30° to 110 °C.
Its compact size of 7 mm×17 mm×6 mm makes it suitable for miniature applications.

The open seal design allows for easy lubrication, ensuring consistent performance.
Its maximum speed of 3,500 rpm makes it a practical choice for moderate-speed uses.

Application

Industrial Uses of F7-17M Bearing
F7-17M Bearing is commonly used in small industrial equipment like precision instruments and compact machinery, where its miniature size and grooved raceway design handle axial loads efficiently. The brass cage ensures smooth operation even in high-speed scenarios.

Where Is F7-17M Bearing Used?
In automotive applications, F7-17M Bearing fits well in gear shift mechanisms and small electric motors, thanks to its 7 mm bore and 17 mm outer diameter. Its chrome steel construction offers durability under frequent thrust loads.

Perfect Fit for Automation: F7-17M Bearing
For robotics and automation, F7-17M Bearing works reliably in compact robotic arms and 3D printers, where space is limited but performance can’t be compromised. The open seal design allows for easy lubrication maintenance.

Medical vs Industrial: Where F7-17M Bearing Excels
In medical devices like dental drills or lab equipment, F7-17M Bearing provides precise movement due to its tight tolerances. Meanwhile, in industrial settings, it’s valued for handling repetitive thrust loads in assembly line tools.

Essential Roles of F7-17M Bearing
F7-17M Bearing is a go-to for consumer electronics, such as small cooling fans or printer mechanisms, where its lightweight (6.5 g) and compact dimensions are ideal. The brass cage reduces friction, ensuring quiet operation.
