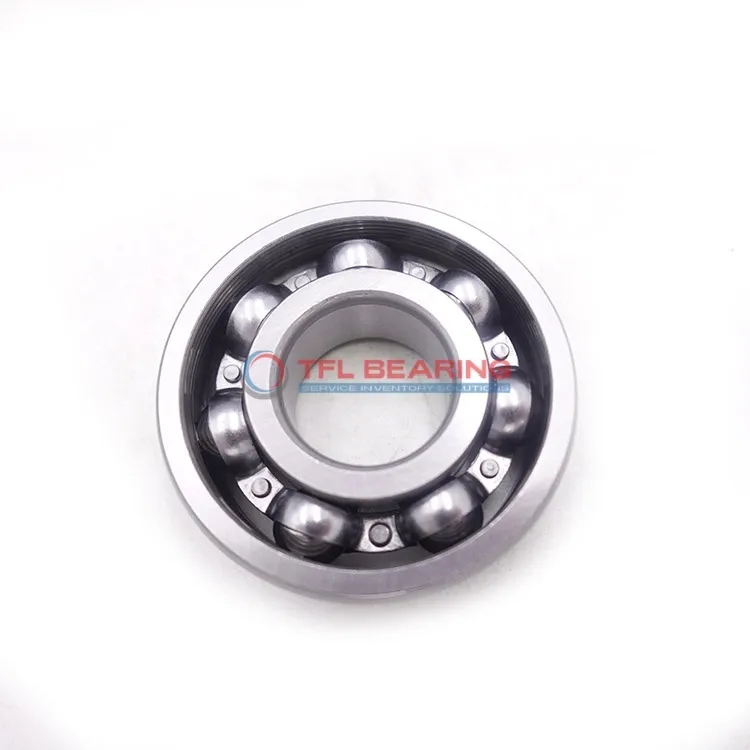

Single Row Deep Groove Ball Bearings 16018

Single Row Deep Groove Ball Bearings 16018

The 16018 is a single-row deep groove ball bearing with a 90mm bore and 140mm outer diameter, crafted from sturdy chrome steel for reliable performance. It supports radial loads up to 897 lbf and operates smoothly at speeds up to 4200 RPM.

Its open design simplifies lubrication, while the stainless steel cage enhances durability. The bearing functions well in temperatures ranging from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for applications like electric motors or pumps where radial load handling is key.

Weighing 670g, it balances strength and manageability. Compliant with RoHS and REACH standards, it’s a safe choice for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 16018
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No CN
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 140 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 16 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Required
  • REACH Compliant
  • Temperature Range -30° to 110 °C
  • Dynamic Radial Load 897 lbf
  • Static Radial Load 8318 lbf
  • Max Speed 4200 rpm
  • Weight 670 g
  • price（$） 29.43
Single Row Deep Groove Ball Bearings 16018 dimension drawing
Download DWG Download PDF

Features

Performance Features of 16018 Bearing

16018 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 897 lbf, making it suitable for various industrial applications.

The stainless steel cage ensures proper ball alignment, reducing friction and extending operational life.
With a maximum speed of 4,200 rpm, it provides a balance between performance and durability.

16018 Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its open design simplifies maintenance, though lubrication is required for optimal performance.

The ABEC-1 tolerance class ensures reliable precision in everyday use.
At 670 g, it remains lightweight while maintaining structural integrity.

Application

Common Applications of 16018 Bearing
16018 Bearing is widely used in industrial machinery, such as pumps and electric motors, where its radial load capacity ensures reliable performance. The open design allows for easy lubrication, extending its service life in demanding conditions.

In automotive systems, 16018 Bearing fits well in components like alternators and water pumps, providing smooth rotation under radial loads. Its metric sizing makes it a versatile choice for various vehicle models.

For automation equipment, 16018 Bearing’s chrome steel construction offers durability in robotic arms and conveyor systems. The stainless steel cage adds resistance to wear, making it suitable for continuous operation.

In household appliances like washing machines, 16018 Bearing handles moderate loads while maintaining quiet operation. Its compact design and reliable performance make it a practical choice for everyday use.

Medical devices such as centrifuges benefit from 16018 Bearing’s precision and stability. The consistent performance ensures accurate results in laboratory and diagnostic equipment.
