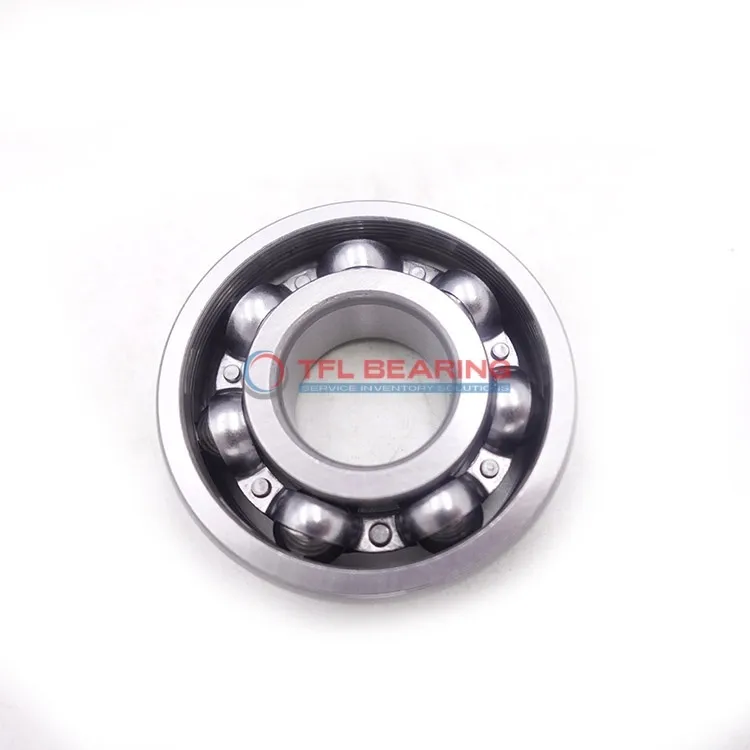

Single Row Deep Groove Ball Bearings 16018/W64

Single Row Deep Groove Ball Bearings 16018/W64

The 16018/W64 is a single-row deep groove ball bearing with a 90mm bore and 140mm outer diameter, crafted from sturdy chrome steel for reliable performance. It supports radial loads up to 897 lbf and operates smoothly at speeds up to 4200 RPM.

Its open design and solid oil lubrication ensure low maintenance, while the chrome steel cage enhances durability. The bearing functions well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 670g, it balances strength and compactness. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 16018/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 140 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 16 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 897 lbf
  • Static Radial Load 8318 lbf
  • Max Speed 4200 rpm
  • Weight 670 g
Single Row Deep Groove Ball Bearings 16018/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 16018/W64 Bearing

16018/W64 Bearing is constructed with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load rating of 897 lbf ensures steady performance in various applications.

The solid oil lubrication reduces friction, enhancing smooth operation and longevity.
With a maximum speed of 4,200 rpm, it balances efficiency and durability.

16018/W64 Bearing operates in temperatures from -30°C to 120°C, suitable for diverse environments.
Its open design allows for easy maintenance and inspection.

The ABEC 1 tolerance class ensures reliable precision for standard applications.
This bearing is interchangeable with SKF models, providing flexibility in replacements.

Application

Industrial Uses of 16018/W64 Bearing
16018/W64 Bearing is commonly used in industrial machinery like pumps and electric motors, where its radial load capacity ensures reliable performance. The solid oil lubrication reduces maintenance needs, making it suitable for continuous operation.

Where Is 16018/W64 Bearing Used?
In automotive applications, 16018/W64 Bearing fits well in components such as alternators and fans, thanks to its durable chrome steel construction. Its open design allows for easy inspection and cleaning, extending service life.

Perfect Fit for Automation: 16018/W64 Bearing
For automated systems, 16018/W64 Bearing provides smooth rotation in conveyor belts and robotic arms. The ABEC 1 tolerance ensures consistent performance without excessive precision requirements.

Medical vs Industrial: Where 16018/W64 Bearing Excels
While 16018/W64 Bearing handles industrial equipment well, its temperature range also makes it suitable for medical devices like sterilisation units. The chrome steel cage offers added durability in both environments.

Light-Duty vs Heavy-Duty: Best Uses for 16018/W64 Bearing
16018/W64 Bearing works efficiently in light-duty applications like office machinery, while its robust design can also handle moderate loads in agricultural equipment. The metric sizing ensures compatibility across various systems.
