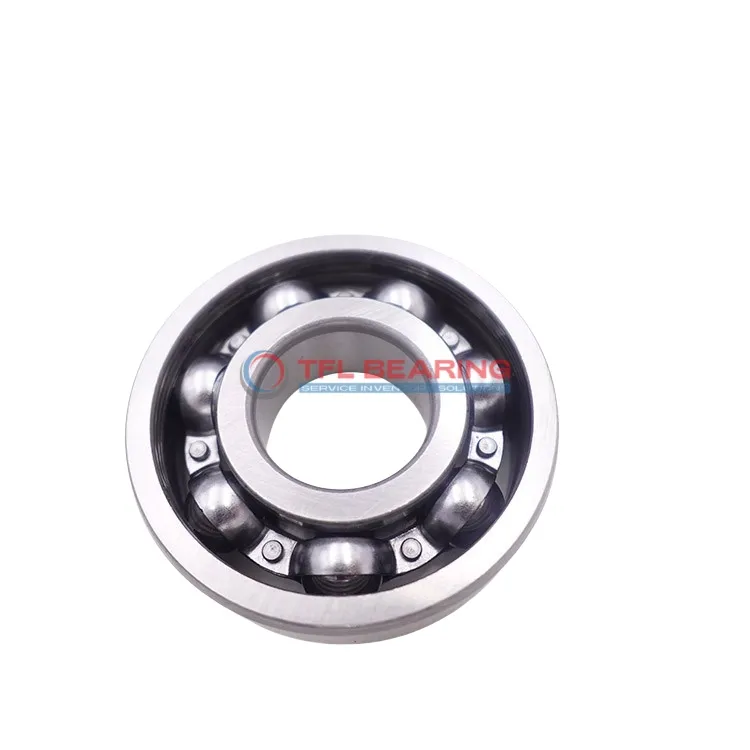

Single Row Deep Groove Ball Bearings 16017

Single Row Deep Groove Ball Bearings 16017

The 16017 is a single-row deep groove ball bearing with an 85mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 7329 lbf and runs smoothly at speeds up to 4200 RPM.

Its open design simplifies lubrication, while the stainless steel cage ensures durability. The bearing operates reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative. Perfect for machinery like pumps or electric motors where radial loads are common.

Weighing 570g, it balances strength and lightness. Compliant with RoHS and REACH standards for safe industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 16017
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No CN
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 14 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Required
  • REACH Compliant
  • Temperature Range -30° to 110 °C
  • Dynamic Radial Load 7329 lbf
  • Static Radial Load 7104 lbf
  • Max Speed 4200 rpm
  • Weight 570 g
  • price（$） 27
Single Row Deep Groove Ball Bearings 16017 dimension drawing
Download DWG Download PDF

Features

Performance Features of 16017 Bearing

16017 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 7329 lbf, ensuring reliable performance in various applications.

The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 4,200 rpm, it balances durability and efficiency.

16017 Bearing operates smoothly in temperatures from -30° to 110°C.
Its open design allows for easy lubrication, extending service life.

The ABEC-1 tolerance class ensures consistent performance.
Its compact size (85 mm×130 mm×14 mm) makes it suitable for space-constrained applications.

Application

Industrial Uses of 16017 Bearing
The 16017 Bearing is commonly used in industrial machinery like pumps and electric motors, where its single-row design handles radial loads efficiently. Its open seal type simplifies lubrication and maintenance in dusty environments.

In automotive applications, 16017 Bearing fits well in wheel hubs and transmission systems, thanks to its durable chrome steel construction. The ABEC-1 tolerance ensures reliable performance without over-engineering for standard vehicle needs.

For home appliances, 16017 Bearing works smoothly in washing machines and fans, balancing cost and performance. The stainless steel cage prevents corrosion, even with frequent exposure to moisture.

Where Is 16017 Bearing Used?
You’ll find 16017 Bearing in conveyor systems, where its 130mm outer diameter provides stability for medium-duty loads. The CN radial clearance offers a good balance between precision and durability.

In small-scale automation, 16017 Bearing supports robotic arms with consistent radial load capacity. Its 85mm bore size makes it compatible with various motor shafts in compact setups.

Built for Heavy-Duty Use: 16017 Bearing
The 16017 Bearing handles tough conditions in agricultural equipment, like harvesters, due to its high static radial load rating. Chrome steel rings resist wear from abrasive particles.

In construction tools, 16017 Bearing’s 14mm width suits space-constrained gearboxes. The -30° to 110°C range ensures performance in both hot and cold environments.

Light-Duty vs Heavy-Duty: Best Uses for 16017 Bearing
For light-duty tasks like office printers, 16017 Bearing’s 4.2k rpm limit is more than adequate. The 570g weight keeps devices portable without sacrificing durability.

In heavier applications like industrial fans, its 7104 lbf static load rating prevents deformation under constant stress. The metric sizing simplifies replacements in global equipment.
