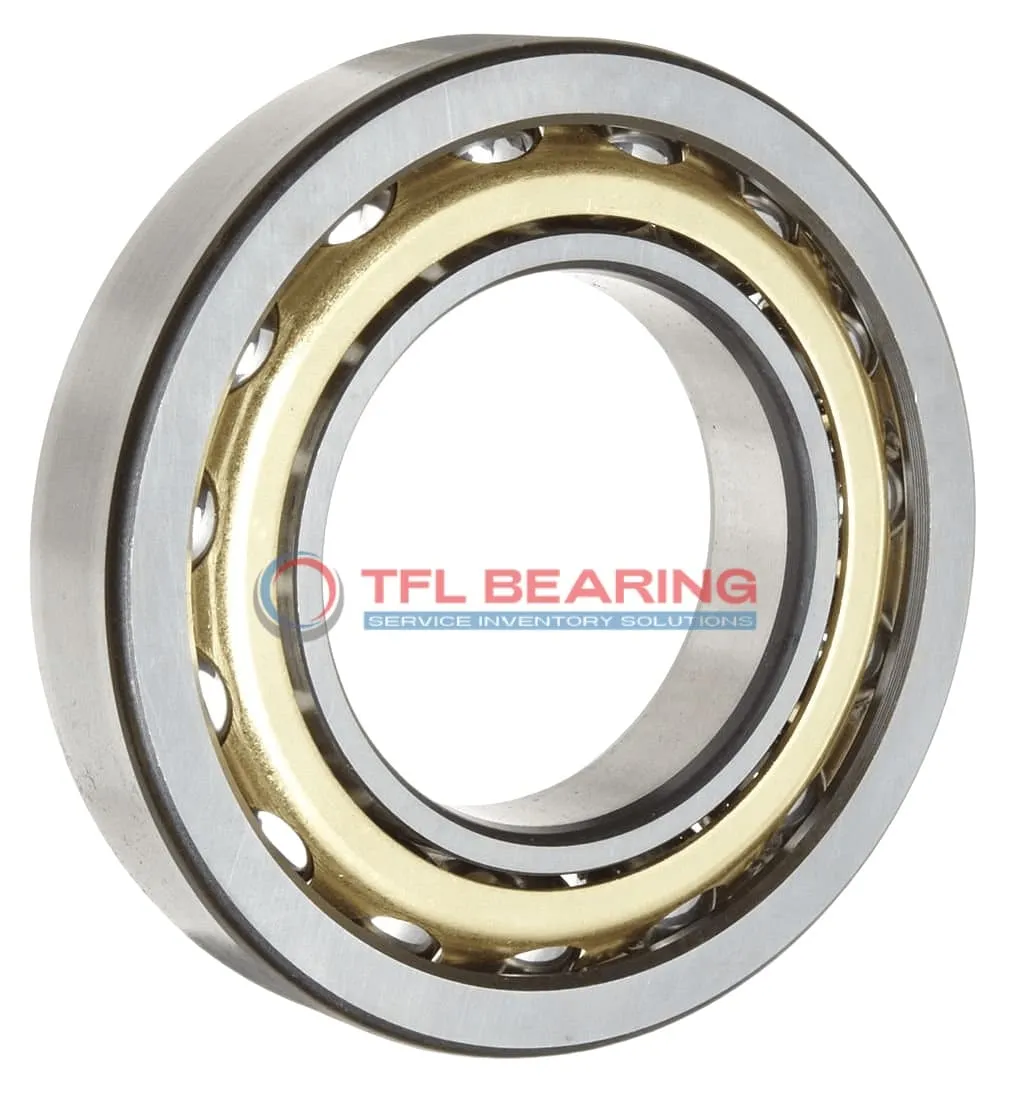

Single Row Angular Contact Ball Bearings (General) 7416 M

Single Row Angular Contact Ball Bearings (General) 7416 M

The 7416 M is a single-row angular contact ball bearing with an 80mm bore and 200mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 40050 lbf and operates smoothly at speeds up to 4300 RPM.

With a 40° contact angle, it efficiently handles combined radial and axial loads. The brass cage enhances durability and reduces friction, ensuring reliable performance.

Its open design simplifies lubrication, while the P6 tolerance class offers precise operation. Suitable for temperatures from -30°C to 110°C, it meets RoHS and REACH standards.

Ideal for industrial machinery, pumps, or gearboxes where angular contact bearings are needed. Weighing 8.1kg, it balances strength and practicality for demanding applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7416 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.02mm to 0
  • Width 48 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 117.23 mm
  • Internal Diameter On Outer Ring 161.85 mm
  • Chamfer Dimension 3 mm
  • Distance Pressure Point (a) 83 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 40050 lbf
  • Static Radial Load 34425 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 4300 rpm
  • Weight 8.1 kg
  • Price（$） 262.11
Single Row Angular Contact Ball Bearings (General) 7416 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 7416 M Bearing

7416 M Bearing is crafted with a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls provide strength, while the brass cage ensures smooth operation.

The dynamic radial load capacity of 7416 M Bearing reaches 40050 lbf, making it suitable for heavy-duty applications.
With a maximum speed of 4,300 rpm, it balances performance and durability.

7416 M Bearing operates efficiently in temperatures from -30° to 110°C, ensuring reliability in various conditions.
Its P6 tolerance class (ABEC-3) guarantees precision and consistent performance.

Application

Industrial Uses of 7416 M Bearing
7416 M Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. The brass cage ensures smooth operation even at moderate speeds, making it suitable for spindle applications.

Where Is 7416 M Bearing Used?
You’ll often find 7416 M Bearing in automotive transmissions, supporting gear shifts with its high dynamic radial load capacity. Its P6 tolerance class also makes it a reliable choice for precision-driven systems.

Built for Heavy-Duty Use: 7416 M Bearing
7416 M Bearing excels in conveyor systems, thanks to its chrome steel construction and robust load ratings. The open design allows for easy lubrication, extending service life in demanding environments.

Automotive vs Aerospace: Applications of 7416 M Bearing
In automotive wheel hubs, 7416 M Bearing provides stability under angular loads, while its metric sizing ensures compatibility. For aerospace applications, its temperature range and precision tolerance meet rigorous standards.

Perfect Fit for Automation: 7416 M Bearing
7416 M Bearing is ideal for robotic arms, where its single-row design reduces friction during repetitive movements. The lubricated setup ensures consistent performance in high-cycle operations.
