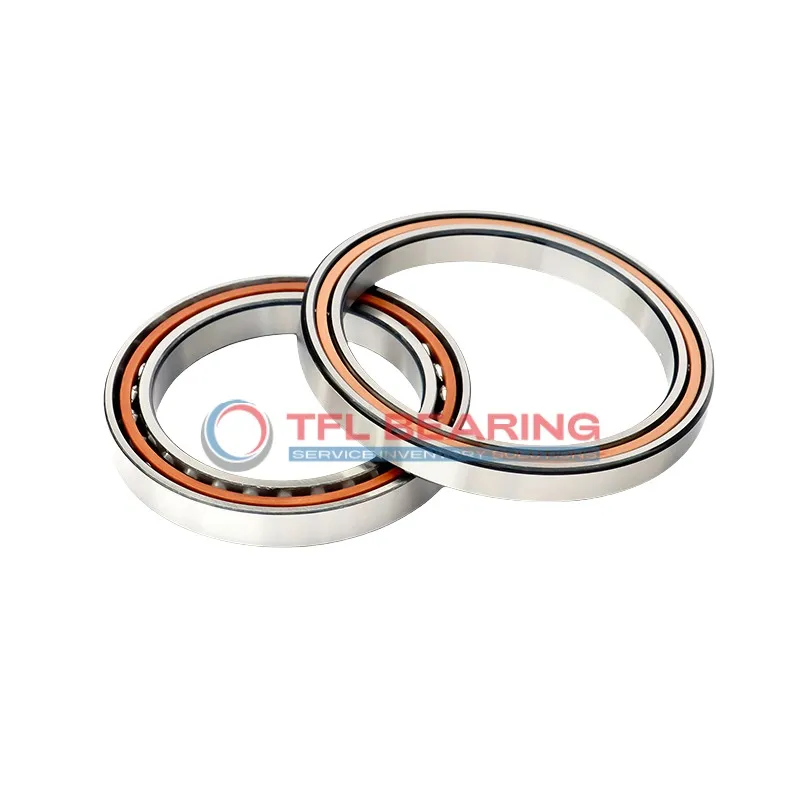

Single Row Angular Contact Ball Bearings (General) ALS 32 ABP

Brand: TFL Bearing Interchangeable: SKF ALS 32 ABP 101.6 mm × 184.15 mm × 31.75 mm Metric Open
Part number: ALS 32 ABP
Single Row Angular Contact Ball Bearings (General) ALS 32 ABP
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia101.6 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia184.15 mm
Outer Dia Tolerance-0.02mm to 0
Width31.75 mm
Width Tolerance-0.05mm to 0
External Diameter On Inner Ring (Large Side Face)124.7 mm
External Diameter On Inner Ring (Small Side Face)115.13 mm
Internal Diameter On Outer Ring155.25 mm
Chamfer Dimension3.2 mm
Performance
Dynamic Radial Load35,775 lbf
Static Radial Load32,175 lbf
Temperature Range-30° to 110 °C
Max Speed4,500 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Contact Angle30°
For Load DirectionAngular Contact
ConstructionSingle Row
Seal TypeOpen
Distance Pressure Point (a)41 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight3.15 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The ALS 32 ABP is a single-row angular contact ball bearing with a 101.6mm bore and 184.15mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 35775 lbf and operates smoothly at speeds up to 4500 RPM.

With a 30° contact angle, it efficiently manages combined loads, while the open design allows for easy lubrication. The nylon cage reduces friction and noise, enhancing performance.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for applications like pumps or gearboxes where angular contact is needed.

Weighing 3.15kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for various industrial uses.

Its P6 tolerance class ensures reliable precision, ideal for demanding environments. Works well in temperatures from -30°C to 110°C, offering consistent performance.

Features

Performance Features of ALS 32 ABP Bearing

ALS 32 ABP Bearing is built with a 30° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls provide strength, while the nylon cage ensures smooth operation.
The bearing can handle dynamic radial loads up to 35,775 lbf, making it suitable for heavy-duty applications.
With a maximum speed of 4,500 rpm, it offers reliable performance in various industrial settings.

How Does ALS 32 ABP Bearing Reduce Friction?

ALS 32 ABP Bearing’s precision-engineered design minimises friction, thanks to its smooth chrome steel surfaces.
The nylon cage reduces contact between balls, further lowering friction and wear.
Its open seal type allows for easy lubrication, ensuring consistent performance.
The bearing operates efficiently within a temperature range of -30° to 110°C.

Engineered for Precision: ALS 32 ABP Bearing

ALS 32 ABP Bearing is designed for high precision, meeting P6 (ABEC-3) tolerance standards.
Its single-row construction ensures accurate load distribution, enhancing stability.
The bearing’s chamfer dimension of 3.2 mm facilitates easier installation and alignment.
With a weight of 3.15 kg, it balances durability and ease of handling.

Application

Industrial Uses of ALS 32 ABP Bearing
ALS 32 ABP Bearing is commonly used in heavy machinery, such as industrial pumps and compressors, where its angular contact design handles combined loads effectively. The chrome steel construction ensures durability in demanding environments.

Where Is ALS 32 ABP Bearing Used?
You’ll find ALS 32 ABP Bearing in automotive applications like wheel hubs and transmissions, where its 30° contact angle provides stability under high-speed conditions. The nylon cage reduces friction, enhancing performance.

Built for Heavy-Duty Use: ALS 32 ABP Bearing
ALS 32 ABP Bearing excels in construction equipment, supporting axial and radial loads in cranes and excavators. Its P6 tolerance class ensures precision even under heavy stress.

Automotive vs Aerospace: Applications of ALS 32 ABP Bearing
In automotive systems, ALS 32 ABP Bearing manages loads in drivetrains, while in aerospace, it’s suited for auxiliary gearboxes. The metric sizing offers compatibility across industries.

Perfect Fit for Automation: ALS 32 ABP Bearing
ALS 32 ABP Bearing is ideal for robotic arms and CNC machines, where its lubricated design ensures smooth operation. The 31.75 mm width fits compact spaces without compromising load capacity.
