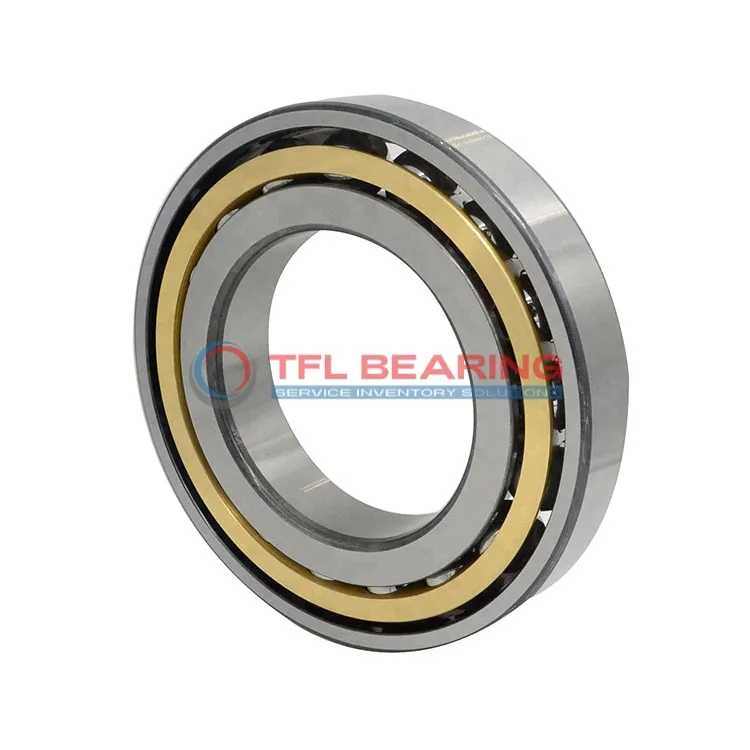

Single Row Angular Contact Ball Bearings (General) 7028 BGM

Brand: TFL Bearing Interchangeable: SKF 7028 BGM 140 mm × 210 mm × 33 mm Metric Open
Part number: 7028 BGM
Single Row Angular Contact Ball Bearings (General) 7028 BGM
In Stock
US$193.14 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia140 mm
Bore Dia Tolerance-0.018mm to 0
Outer Dia210 mm
Outer Dia Tolerance-0.02mm to 0
Width33 mm
Width Tolerance-0.05mm to 0
External Diameter On Inner Ring (Large Side Face)167.4 mm
External Diameter On Inner Ring (Small Side Face)154.95 mm
Internal Diameter On Outer Ring184.35 mm
Chamfer Dimension2 mm
Performance
Dynamic Radial Load25,650 lbf
Static Radial Load29,025 lbf
Temperature Range-30° to 110 °C
Max Speed3,400 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Contact Angle40°
For Load DirectionAngular Contact
ConstructionSingle Row
Seal TypeOpen
Distance Pressure Point (a)90 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight3.85 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 7028 BGM is a single-row angular contact ball bearing with a 140mm bore and 210mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 25650 lbf and operates smoothly at speeds up to 3400 RPM.

Its 40° contact angle efficiently handles combined loads, while the brass cage ensures durability and quiet performance. The open design allows easy lubrication and maintenance.

This bearing suits applications like pumps or gearboxes where angular contact is needed. It works in temperatures from -30°C to 110°C and meets P6 tolerance standards for precision.

Weighing 3.85kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH, it’s a reliable choice for industrial use. Interchangeable with SKF bearings for easy replacement.

Features

Performance Features of 7028 BGM Bearing

7028 BGM Bearing is built with a 40° contact angle, optimising its ability to handle angular contact loads.
The chrome steel rings and balls enhance durability, while the brass cage ensures smooth operation.

With a dynamic radial load capacity of 25650 lbf, 7028 BGM Bearing performs reliably under heavy loads.
Its P6 tolerance class (ABEC-3) ensures precision, making it suitable for high-accuracy applications.

The open design allows for easy lubrication, extending the bearing’s service life.
It operates efficiently within a temperature range of -30° to 110°C, adapting to various working conditions.

Application

Industrial Uses of 7028 BGM Bearing
7028 BGM Bearing is commonly used in heavy machinery, such as industrial gearboxes and large pumps, where its angular contact design efficiently handles combined radial and axial loads. The brass cage ensures smooth operation even under high rotational speeds.

Where Is 7028 BGM Bearing Used?
You’ll often find 7028 BGM Bearing in automotive applications like wheel hubs and transmissions, thanks to its robust chrome steel construction. Its precise P6 tolerance makes it suitable for systems requiring reliable performance.

Built for Heavy-Duty Use: 7028 BGM Bearing
7028 BGM Bearing excels in construction equipment, supporting components like crane swivels and excavator arms. The 40° contact angle provides excellent load distribution, enhancing durability in tough conditions.

Automotive vs Aerospace: Applications of 7028 BGM Bearing
In automotive settings, 7028 BGM Bearing is ideal for high-load scenarios like differential systems. For aerospace, its precision and temperature stability make it suitable for auxiliary aircraft machinery.

Practical Applications of 7028 BGM Bearing
7028 BGM Bearing is a reliable choice for wind turbine systems, where its ability to handle dynamic loads ensures long-term performance. The lubricated design reduces maintenance needs in remote installations.
