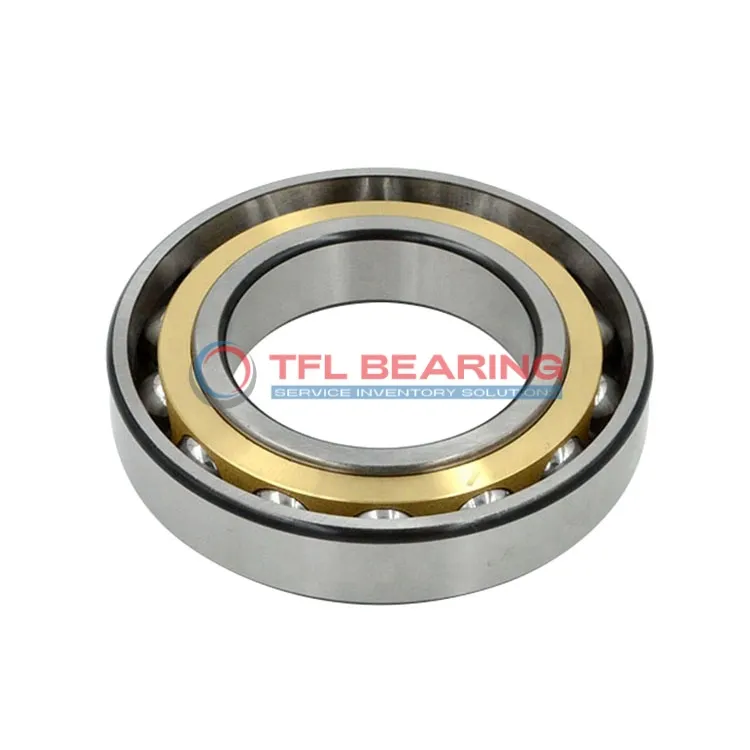

Single Row Angular Contact Ball Bearings (General) 7030 BGM

Brand: TFL Bearing Interchangeable: SKF 7030 BGM 150 mm × 225 mm × 35 mm Metric Open
Part number: 7030 BGM
Single Row Angular Contact Ball Bearings (General) 7030 BGM
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia150 mm
Bore Dia Tolerance-0.018mm to 0
Outer Dia225 mm
Outer Dia Tolerance-0.02mm to 0
Width35 mm
Width Tolerance-0.05mm to 0
External Diameter On Inner Ring (Large Side Face)179.4 mm
External Diameter On Inner Ring (Small Side Face)166 mm
Internal Diameter On Outer Ring197.5 mm
Chamfer Dimension2.1 mm
Performance
Dynamic Radial Load29,925 lbf
Static Radial Load32,850 lbf
Temperature Range-30° to 110 °C
Max Speed3,200 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Contact Angle40°
For Load DirectionAngular Contact
ConstructionSingle Row
Seal TypeOpen
Distance Pressure Point (a)96 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight4.7 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 7030 BGM is a single-row angular contact ball bearing with a 150mm bore and 225mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 29925 lbf and operates smoothly at speeds up to 3200 RPM.

Its 40° contact angle efficiently manages combined loads, while the brass cage ensures durability and quiet performance. The open design allows for easy lubrication and maintenance.

This bearing suits applications like pumps or gearboxes where angular contact is needed. It works in temperatures from -30°C to 110°C and meets P6 tolerance standards.

Weighing 4.7kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH, it’s a reliable choice for replacements, interchangeable with SKF models.

Features

Why Choose 7030 BGM Bearing for Precision Tasks?

7030 BGM Bearing features a 40° contact angle, ideal for handling combined radial and axial loads with precision.
Its chrome steel rings and balls ensure durability, while the brass cage maintains alignment for smooth operation.
With a dynamic radial load capacity of 29,925 lbf, it performs reliably in demanding applications.
The P6 tolerance class guarantees consistent accuracy, making it suitable for high-precision machinery.

How Is 7030 BGM Bearing Engineered for Reliability?

7030 BGM Bearing is constructed with chrome steel components, offering excellent resistance to wear and fatigue.
The brass cage design reduces friction, enhancing the bearing’s operational efficiency.
It supports a maximum speed of 3,200 rpm, balancing performance and longevity.
Its open seal type allows for easy lubrication, ensuring consistent performance over time.

Built for Durability: 7030 BGM Bearing

7030 BGM Bearing’s robust chrome steel construction withstands heavy loads and harsh conditions.
The brass cage ensures smooth ball movement, minimising wear and extending service life.
With a static radial load capacity of 32,850 lbf, it delivers reliable performance in industrial applications.
Its temperature range of -30° to 110°C makes it versatile for various operating environments.

Application

Industrial Uses of 7030 BGM Bearing
7030 BGM Bearing is commonly used in heavy machinery like industrial pumps and compressors, where its angular contact design handles combined radial and axial loads efficiently. The brass cage ensures smooth operation even under high stress.

Where Is 7030 BGM Bearing Used?
You’ll find 7030 BGM Bearing in automotive applications such as wheel hubs and transmissions, thanks to its robust chrome steel construction. Its P6 tolerance class makes it suitable for precision-driven systems.

Built for Heavy-Duty Use: 7030 BGM Bearing
7030 BGM Bearing excels in conveyor systems and gearboxes, where its 40° contact angle optimises load distribution. The lubricated design reduces friction, extending service life in demanding environments.

Medical vs Industrial: Where 7030 BGM Bearing Excels
In medical devices like MRI scanners, 7030 BGM Bearing’s precision ensures quiet and reliable performance. Industrial settings benefit from its high dynamic load capacity, ideal for continuous operation.

Automotive vs Aerospace: Applications of 7030 BGM Bearing
7030 BGM Bearing supports automotive drivetrains with its durable design, while aerospace applications leverage its lightweight yet strong construction for auxiliary systems. The metric sizing ensures broad compatibility.
