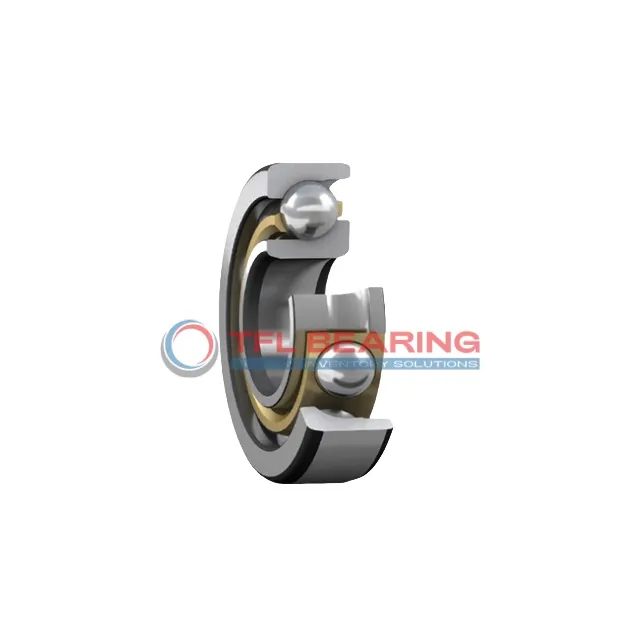

Single Row Angular Contact Ball Bearings (General) 7076 AM

Single Row Angular Contact Ball Bearings (General) 7076 AM

The 7076 AM is a single-row angular contact ball bearing with a 380mm bore and 560mm outer diameter, built from sturdy chrome steel. It handles radial loads up to 114075 lbf and operates at speeds up to 1200 RPM.

With a 30° contact angle, it manages combined radial and axial loads effectively. The brass cage adds durability while the open design simplifies lubrication.

Its P6 tolerance class ensures precise performance, suitable for demanding applications. Ideal for heavy machinery or industrial equipment where high load capacity is needed.

Weighing 64kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7076 AM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 30°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 380 mm
  • Bore Dia Tolerance -0.03mm to 0
  • Outer Dia 560 mm
  • Outer Dia Tolerance -0.038mm to 0
  • Width 82 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 451.1 mm
  • External Diameter On Inner Ring (Small Side Face) 417.23 mm
  • Internal Diameter On Outer Ring 494.45 mm
  • Chamfer Dimension 5 mm
  • Distance Pressure Point (a) 177 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 114075 lbf
  • Static Radial Load 213750 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 1200 rpm
  • Weight 64 kg
Single Row Angular Contact Ball Bearings (General) 7076 AM dimension drawing
Download DWG Download PDF

Features

Performance Features of 7076 AM Bearing

7076 AM Bearing is built with a 30° contact angle, ideal for handling combined radial and axial loads efficiently.
Its chrome steel rings and balls provide strong resistance to wear, ensuring reliable performance under heavy loads.

The brass cage maintains ball alignment, reducing friction and extending the bearing’s service life.
With a dynamic radial load capacity of 114075 lbf, it excels in demanding industrial applications.

7076 AM Bearing operates smoothly within a temperature range of -30° to 110°C, suitable for various environments.
Its P6 tolerance class ensures precision and consistency in performance.

Application

Industrial Uses of 7076 AM Bearing
The 7076 AM Bearing is commonly used in heavy machinery, such as large pumps and compressors, where its angular contact design handles combined radial and axial loads effectively. Its brass cage ensures smooth operation even under high stress.

In automotive applications, 7076 AM Bearing supports components like wheel hubs and transmissions, providing stability and durability. The metric sizing makes it a versatile choice for various vehicle designs.

For automation systems, 7076 AM Bearing is ideal for robotic arms and precision equipment, thanks to its P6 tolerance class. The chrome steel construction offers long-lasting performance in demanding environments.

Medical imaging devices also benefit from 7076 AM Bearing’s reliable performance, where consistent accuracy is essential. Its open design allows for easy lubrication, ensuring minimal maintenance.

In consumer electronics, 7076 AM Bearing can be found in high-end appliances like industrial fans, where its robust build ensures quiet and efficient operation. The temperature range makes it suitable for diverse climates.
