Snap Ring Groove Ball Bearings 6208-ZNR/C3

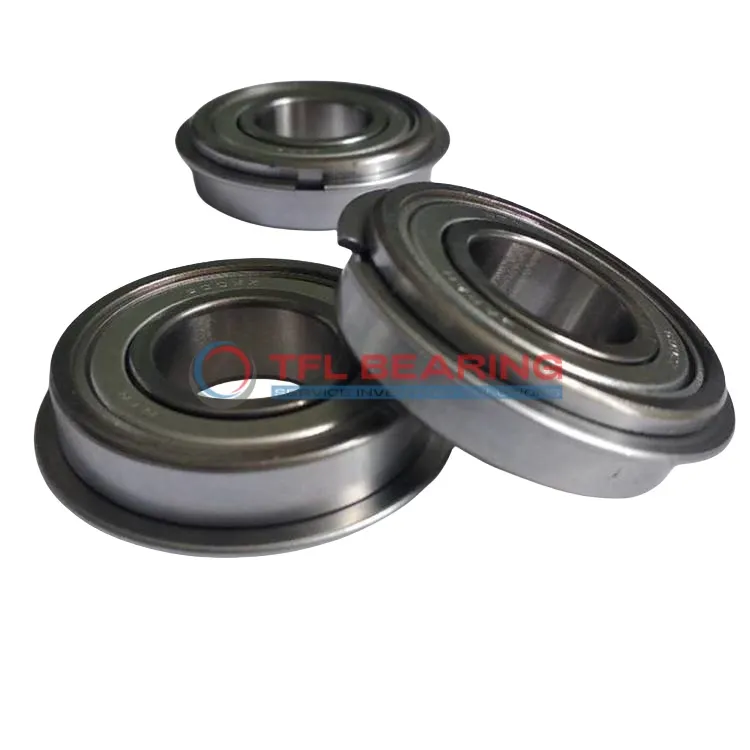

Snap Ring Groove Ball Bearings 6208-ZNR/C3

The 6208-ZNR/C3 is a shielded snap ring groove ball bearing with a 40mm bore and 80mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 6542 lbf and operates smoothly at speeds up to 8300 RPM.

Its snap ring design on the outer ring ensures secure fitting, while the shielded construction keeps contaminants out. The bearing works reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads and secure mounting are key.

Weighing 366g, it offers a sturdy build for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6208-ZNR/C3
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 86.6 mm
  • Width Of Snap Ring 1.7 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 6542 lbf
  • Static Radial Load 4002 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 8300 rpm
  • Weight 366 g
  • Price（$） 9.4
Snap Ring Groove Ball Bearings 6208-ZNR/C3 dimension drawing
Download DWG Download PDF

Features

How Does 6208-ZNR/C3 Bearing Reduce Friction?

6208-ZNR/C3 Bearing features chrome steel rings and balls, designed to minimise friction during operation.
Its shielded design helps keep contaminants out, ensuring smoother performance over time.
The snap ring groove on the outer ring provides secure fitting, reducing vibration and wear.
With a maximum speed of 8,300 rpm, it offers reliable efficiency for radial load applications.

Application

Industrial Uses of 6208-ZNR/C3 Bearing
6208-ZNR/C3 Bearing is commonly used in conveyor systems and industrial fans, where its shielded design helps keep out dust and debris. The snap ring feature ensures secure mounting, making it ideal for high-vibration environments.

Where Is 6208-ZNR/C3 Bearing Used?
In automotive applications, 6208-ZNR/C3 Bearing fits well in electric motors and gearboxes, thanks to its radial load capacity. The C3 clearance allows for slight thermal expansion, which is handy in variable temperature conditions.

Built for Heavy-Duty Use: 6208-ZNR/C3 Bearing
You’ll find 6208-ZNR/C3 Bearing in agricultural machinery, where its chrome steel construction handles rough conditions. The snap ring groove simplifies installation, saving time during maintenance.

Automotive vs Industrial: Applications of 6208-ZNR/C3 Bearing
While 6208-ZNR/C3 Bearing works well in car alternators, it’s equally at home in factory pumps. Its balanced performance suits both light-duty and heavy-duty tasks without fuss.

Perfect Fit for Automation: 6208-ZNR/C3 Bearing
6208-ZNR/C3 Bearing is a go-to choice for robotic arms, offering smooth rotation under radial loads. The shielded seals help prolong service life by reducing contamination risks.
