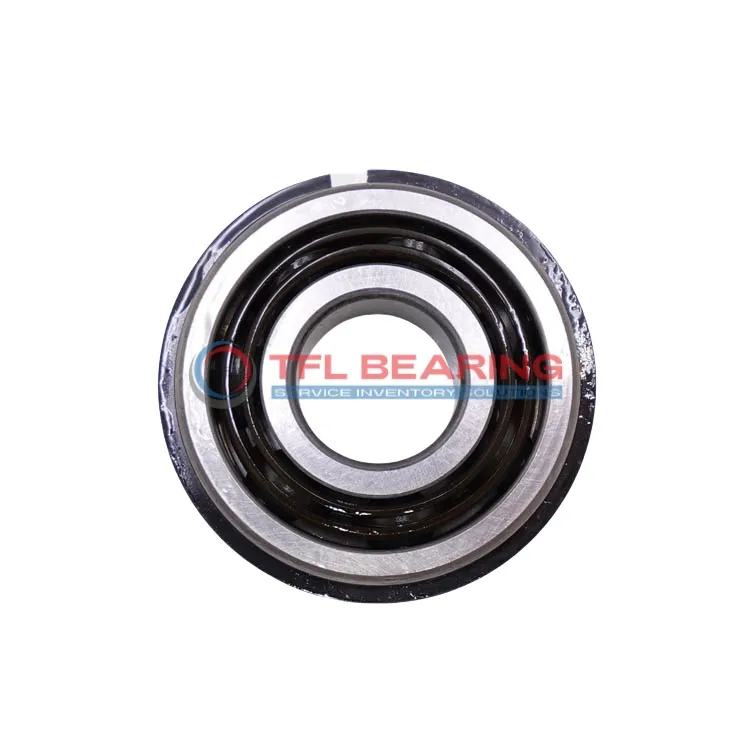

Snap Ring Groove Ball Bearings 6209NRJ/C3

Snap Ring Groove Ball Bearings 6209NRJ/C3

The 6209NRJ/C3 is a snap ring groove ball bearing with a 45mm bore and 85mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 7351 lbf and operates smoothly at speeds up to 7700 RPM.

Its snap ring design on the outer ring ensures secure fitting, while the C3 radial clearance allows for thermal expansion in various conditions. The open seal type makes maintenance straightforward.

This bearing suits applications like electric motors or pumps where radial loads are common. It works well in temperatures from -30°C to 120°C and is interchangeable with SKF models.

Weighing just 0.38kg, it offers a balance of strength and compactness. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6209NRJ/C3
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012 mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015 mm to 0
  • Width 19 mm
  • Width Tolerance -0.12 mm to 0
  • Outside Diameter Of Snap Ring 81.6 mm
  • Width Of Snap Ring 1.7 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 7351 lbf
  • Static Radial Load 4564 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 7700 rpm
  • Price（$） 12.16

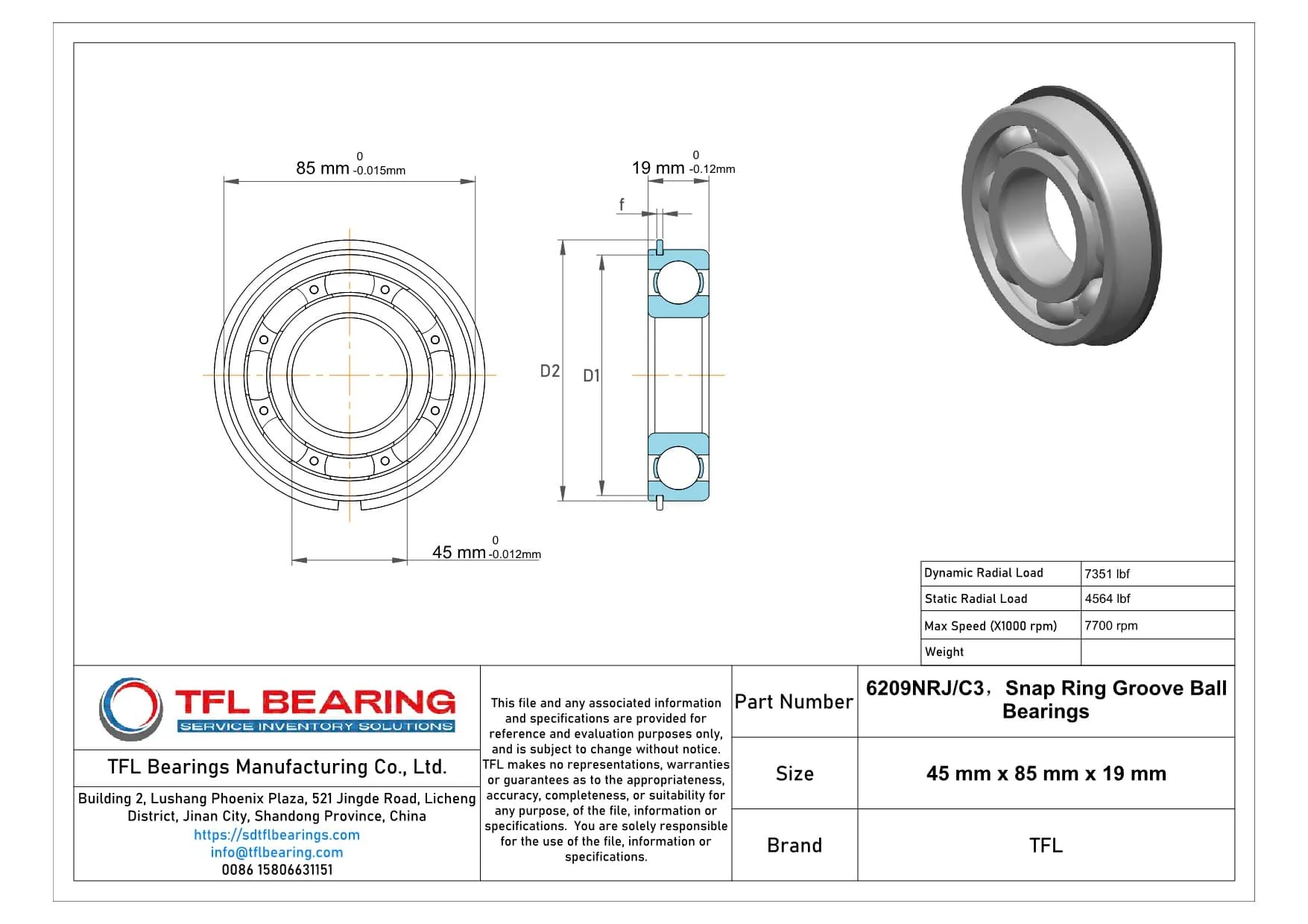

Snap Ring Groove Ball Bearings 6209NRJ/C3 dimension drawing
Download DWG Download PDF

Features

How Does 6209NRJ/C3 Bearing Reduce Friction?

6209NRJ/C3 Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.

Its single-row design and open seal type allow for efficient radial load handling, up to 7351 lbf.

The snap ring groove on the outer ring provides secure fitting, reducing movement and wear.

With a maximum speed of 7,700 rpm, it offers reliable performance in various applications.

Application

Industrial Uses of 6209NRJ/C3 Bearing
The 6209NRJ/C3 Bearing is commonly used in industrial machinery like pumps and gearboxes, where its snap ring design ensures secure outer ring positioning. Its C3 radial clearance allows for thermal expansion in high-speed applications.

In automotive applications, 6209NRJ/C3 Bearing fits well in alternators and transmission systems, providing reliable radial load support. The chrome steel construction offers good wear resistance for long service life.

For automation equipment, 6209NRJ/C3 Bearing works smoothly in conveyor rollers and robotic joints. The open seal design makes it suitable for environments where frequent lubrication is possible.

Where Is 6209NRJ/C3 Bearing Used?
You’ll often find 6209NRJ/C3 Bearing in electric motors and fans, where its balanced performance handles moderate radial loads effectively. The snap ring groove simplifies installation in housings.

Built for Versatility: 6209NRJ/C3 Bearing
This bearing adapts well to various industrial fans and blowers, with its temperature range covering most working conditions. The metric sizing ensures compatibility with standard European equipment designs.

Light-Duty vs Heavy-Duty: Best Uses for 6209NRJ/C3 Bearing
While suitable for light industrial machinery, 6209NRJ/C3 Bearing also performs well in agricultural equipment like small tractors. Its construction handles both continuous and intermittent loads reliably.
