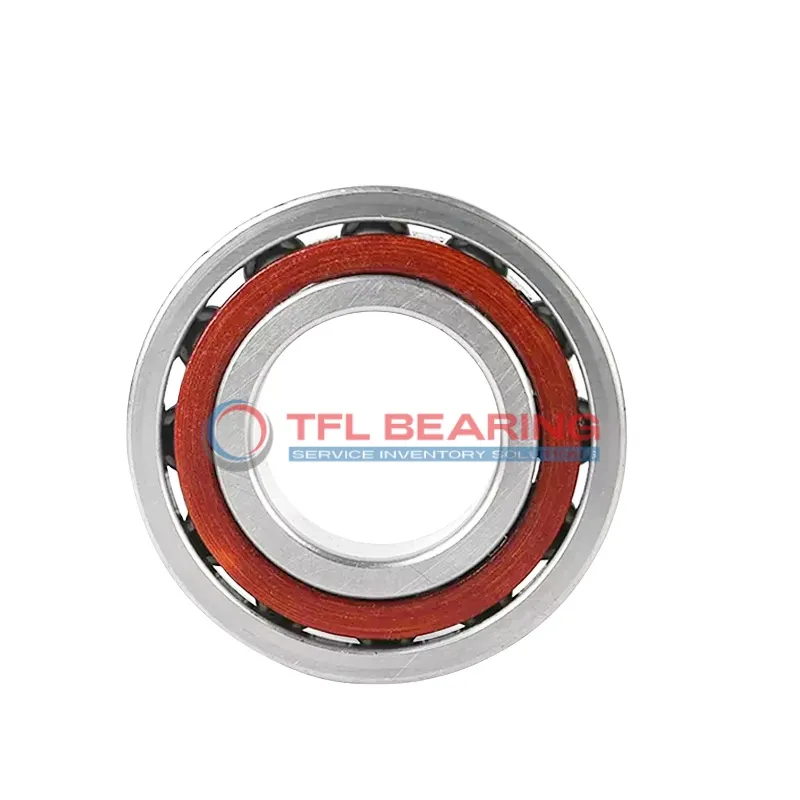

Single Row Angular Contact Ball Bearings (General) 7213 BEP

Single Row Angular Contact Ball Bearings (General) 7213 BEP

The 7213 BEP is a single-row angular contact ball bearing with a 65mm bore and 120mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 14918 lbf and operates smoothly at speeds up to 6300 RPM.

Its 40° contact angle efficiently manages combined loads, while the nylon cage reduces friction for quieter performance. The open design allows easy lubrication, extending its service life.

This bearing suits applications like pumps or gearboxes where angular loads are present. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing 1kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it works in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7213 BEP
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 23 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 86.35 mm
  • External Diameter On Inner Ring (Small Side Face) 75.48 mm
  • Internal Diameter On Outer Ring 100 mm
  • Chamfer Dimension 1.5 mm
  • Distance Pressure Point (a) 50 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 14918 lbf
  • Static Radial Load 12150 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 6300 rpm
  • Weight 1 kg
  • Price（$） 54.72
Single Row Angular Contact Ball Bearings (General) 7213 BEP dimension drawing
Download DWG Download PDF

Features

Performance Features of 7213 BEP Bearing

7213 BEP Bearing is designed with a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls ensure durability and resistance to wear under heavy loads.

The nylon cage in 7213 BEP Bearing reduces friction and noise, making it suitable for precision applications.
With a dynamic radial load capacity of 14918 lbf, it performs reliably in demanding conditions.

7213 BEP Bearing operates smoothly at speeds up to 6,300 rpm, balancing efficiency and longevity.
Its open design allows for easy lubrication, ensuring consistent performance over time.

The P6 tolerance class of 7213 BEP Bearing ensures high precision and reliable operation.
It functions effectively in temperatures ranging from -30° to 110 °C, adapting to various environments.

Application

Industrial Uses of 7213 BEP Bearing
The 7213 BEP Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. Its open design and nylon cage make it suitable for high-speed operations in industrial settings.

Where Is 7213 BEP Bearing Used?
You’ll find 7213 BEP Bearing in automotive applications like wheel hubs and transmissions, thanks to its durable chrome steel construction. The metric sizing ensures compatibility with a variety of vehicle designs.

Built for Heavy-Duty Use: 7213 BEP Bearing
In robotics, 7213 BEP Bearing supports precise movements in robotic arms and automated systems. The P6 tolerance class ensures reliable performance in demanding environments.

Automotive vs Aerospace: Applications of 7213 BEP Bearing
While 7213 BEP Bearing excels in automotive systems, it’s also found in aerospace equipment where precision and durability are key. Its temperature range and lubrication make it versatile for different industries.

Perfect Fit for Automation: 7213 BEP Bearing
For 3D printers and CNC machines, 7213 BEP Bearing offers smooth operation and long service life. The lightweight nylon cage reduces friction, enhancing efficiency in automated processes.
