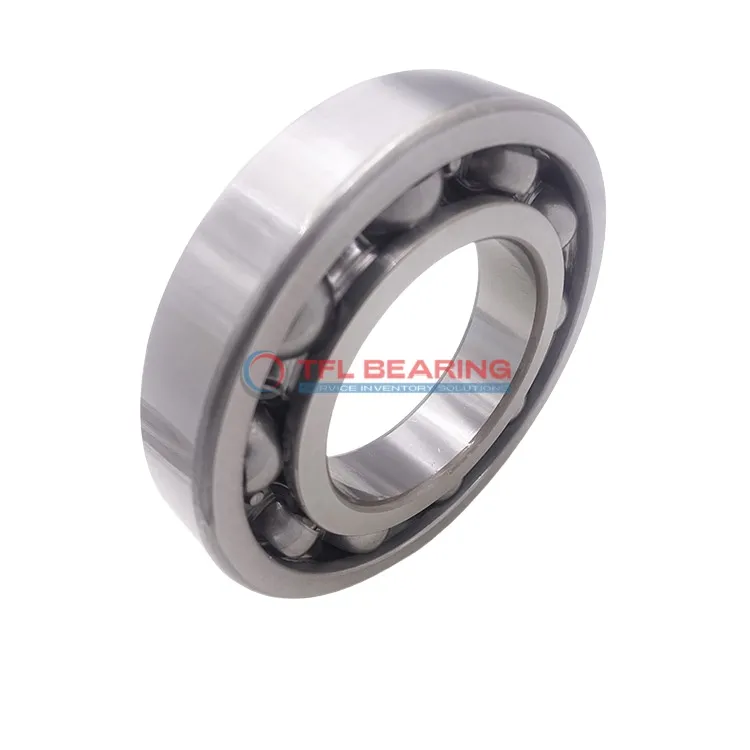

Single Row Deep Groove Ball Bearings 6232

Single Row Deep Groove Ball Bearings 6232

The 6232 is a single-row deep groove ball bearing with a 160mm bore and 290mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 41814 lbf and operates smoothly at speeds up to 3000 RPM.

Its open design simplifies maintenance, while the P6 tolerance ensures precise performance. The bearing functions well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Suitable for industrial machinery or heavy equipment where radial load capacity is key.

Weighing 12.9kg, it’s built for durability in demanding environments. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6232
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 160 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 290 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 48 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 41814 lbf
  • Static Radial Load 41814 lbf
  • Max Speed 3000 rpm
  • Weight 12900 g
  • price（$） 268.929
Single Row Deep Groove Ball Bearings 6232 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6232 Bearing

6232 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 41,814 lbf, ensuring reliable performance in various applications.

The open design of 6232 Bearing allows for easy lubrication and maintenance.
With a maximum speed of 3,000 rpm, it balances durability and efficiency.

6232 Bearing operates smoothly in temperatures ranging from -30°C to 120°C.
Its precision engineering ensures long service life and consistent performance.

Application

Industrial Uses of 6232 Bearing
6232 Bearing is commonly used in heavy machinery like industrial pumps and compressors, where its deep groove design handles radial loads efficiently.
The open seal type allows for easy lubrication, extending its service life in demanding environments.

What Makes 6232 Bearing a Preferred Choice?
In automotive applications, 6232 Bearing supports wheel hubs and transmission systems, offering reliable performance under high radial loads.
Its chrome steel construction ensures durability, even in fluctuating temperatures.

Built for Heavy-Duty Use: 6232 Bearing
For automation equipment, 6232 Bearing provides smooth operation in robotic arms and conveyor systems.
The P6 tolerance class ensures precise alignment, reducing wear and tear over time.

Medical vs Industrial: Where 6232 Bearing Excels
In medical devices like centrifuges, 6232 Bearing’s consistent performance is vital for accurate results.
Meanwhile, in industrial settings, it excels in gearboxes and electric motors due to its robust design.

Perfect Fit for Automation: 6232 Bearing
6232 Bearing is ideal for 3D printers and CNC machines, where precision and reliability are key.
Its metric sizing makes it compatible with a wide range of equipment, simplifying maintenance.
