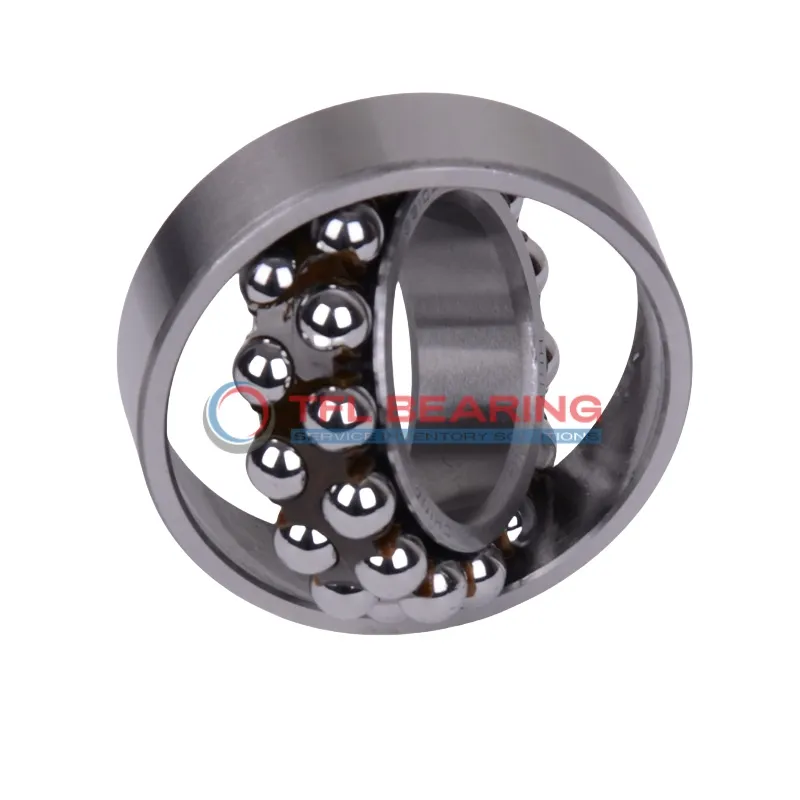

Self Aligning Ball Bearings 2212-K-TVH-C3

Self Aligning Ball Bearings 2212-K-TVH-C3

The 2212-K-TVH-C3 is a self-aligning ball bearing with a 60mm tapered bore and 110mm outer diameter, designed for radial loads. It features a double-row construction and sealed design for added durability.

Made from chrome steel with a nylon cage, it handles dynamic radial loads up to 7020 lbf and operates smoothly at speeds up to 3800 RPM. The C3 radial clearance allows for slight misalignment in applications.

Its sealed design keeps lubrication in and contaminants out, reducing maintenance needs. The bearing works well in temperatures from -30°C to 110°C.

Ideal for machinery where alignment might be imperfect, such as conveyor systems or agricultural equipment. Weighing 1.05kg, it’s a sturdy choice for industrial use. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2212-K-TVH-C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 28 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 73.2 mm
  • Internal Diameter On Outer Ring 97 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 7020 lbf
  • Static Radial Load 2745 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 3800 rpm
  • Weight 1.05 kg
  • Price（$） 79.52
Self Aligning Ball Bearings 2212-K-TVH-C3 dimension drawing
Download DWG Download PDF

Features

Why Choose 2212-K-TVH-C3 Bearing for Precision Tasks?

2212-K-TVH-C3 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load reaches 7020 lbf, making it suitable for demanding applications.

The sealed construction and nylon cage provide smooth operation with minimal maintenance.
With a maximum speed of 3,800 rpm, it balances performance and durability.

2212-K-TVH-C3 Bearing operates efficiently in temperatures from -30° to 110°C.
Its C3 radial clearance ensures reliable performance under varying conditions.

Application

Industrial Uses of 2212-K-TVH-C3 Bearing
2212-K-TVH-C3 Bearing is commonly used in conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. The sealed design helps keep contaminants out, extending service life in dusty environments.

In automotive applications, 2212-K-TVH-C3 Bearing fits well in heavy-duty truck axles, handling radial loads efficiently. Its tapered bore ensures a secure fit, reducing slippage during high-stress operations.

For robotics, 2212-K-TVH-C3 Bearing’s double-row construction provides stability in articulated joints. The nylon cage reduces friction, making it suitable for repetitive motion tasks.

In household appliances like washing machines, 2212-K-TVH-C3 Bearing offers quiet operation due to its balanced design. The lubricated seals further enhance smooth performance over long periods.
