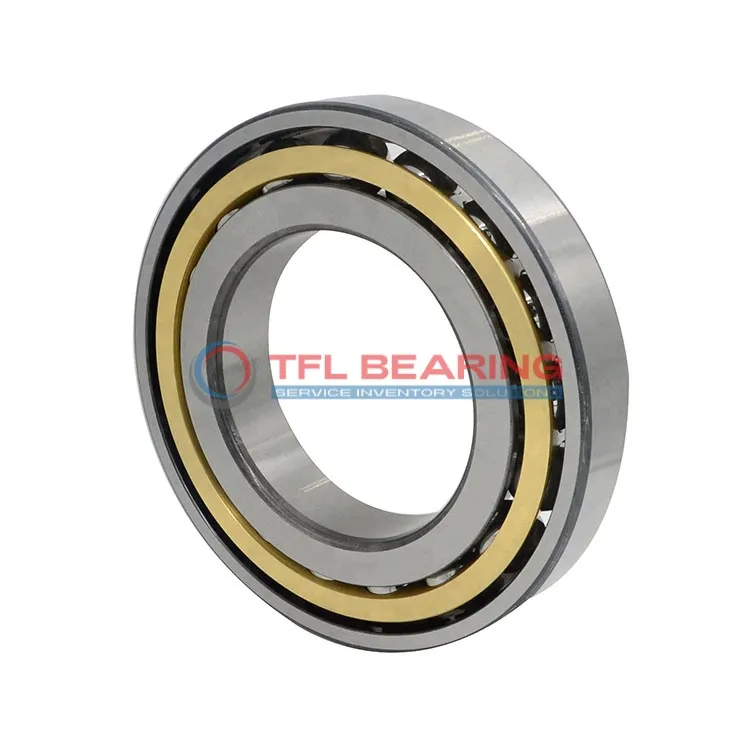

Single Row Angular Contact Ball Bearings (General) 7332 BCBM

Single Row Angular Contact Ball Bearings (General) 7332 BCBM

The 7332 BCBM is a single-row angular contact ball bearing with a 160mm bore and 340mm outer diameter, built from sturdy chrome steel. It handles radial loads up to 80550 lbf and operates smoothly at speeds up to 2600 RPM.

With a 40° contact angle, it efficiently manages combined radial and axial loads. The brass cage enhances durability, while the open design allows for easy lubrication.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for industrial machinery like pumps or gearboxes where angular contact is needed.

Weighing 30.3kg, it’s robust for heavy-duty applications. Compliant with RoHS and REACH standards, it works in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7332 BCBM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 160 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 340 mm
  • Outer Dia Tolerance -0.028mm to 0
  • Width 68 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 229.9 mm
  • External Diameter On Inner Ring (Small Side Face) 195.85 mm
  • Internal Diameter On Outer Ring 275.1 mm
  • Chamfer Dimension 4 mm
  • Distance Pressure Point (a) 139 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 80550 lbf
  • Static Radial Load 99000 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 2600 rpm
  • Weight 30.3 kg
Single Row Angular Contact Ball Bearings (General) 7332 BCBM dimension drawing
Download DWG Download PDF

Features

Performance Features of 7332 BCBM Bearing

7332 BCBM Bearing features a 40° contact angle, optimised for handling combined radial and axial loads.
Its chrome steel rings and balls provide strength, while the brass cage ensures smooth operation.

With a dynamic radial load capacity of 80550 lbf, it performs reliably in demanding applications.
The P6 tolerance class ensures precision, making it suitable for high-accuracy machinery.

Designed for a temperature range of -30° to 110°C, 7332 BCBM Bearing adapts to various working conditions.
Its open design allows for easy lubrication, extending service life and reducing maintenance needs.

Application

Industrial Uses of 7332 BCBM Bearing
This bearing is commonly used in heavy machinery like industrial pumps and compressors, where its angular contact design handles combined radial and axial loads efficiently. The brass cage ensures smooth operation even under high stress.

Where Is 7332 BCBM Bearing Used?
You’ll often find 7332 BCBM Bearing in wind turbine gearboxes, where its 40° contact angle provides stability against varying loads. Its P6 tolerance class makes it reliable for precision applications.

Built for Heavy-Duty Use: 7332 BCBM Bearing
In mining equipment, 7332 BCBM Bearing’s chrome steel construction withstands harsh conditions, while its lubricated design reduces maintenance needs. The large bore size accommodates heavy shafts effortlessly.

Automotive vs Aerospace: Applications of 7332 BCBM Bearing
In automotive systems, 7332 BCBM Bearing supports wheel hubs and transmissions, offering durability. For aerospace, its precision and load capacity make it suitable for landing gear mechanisms.

Perfect Fit for Automation: 7332 BCBM Bearing
Robotic arms benefit from 7332 BCBM Bearing’s ability to manage angular loads with minimal friction. The open seal type allows for easy lubrication in high-speed automation setups.
