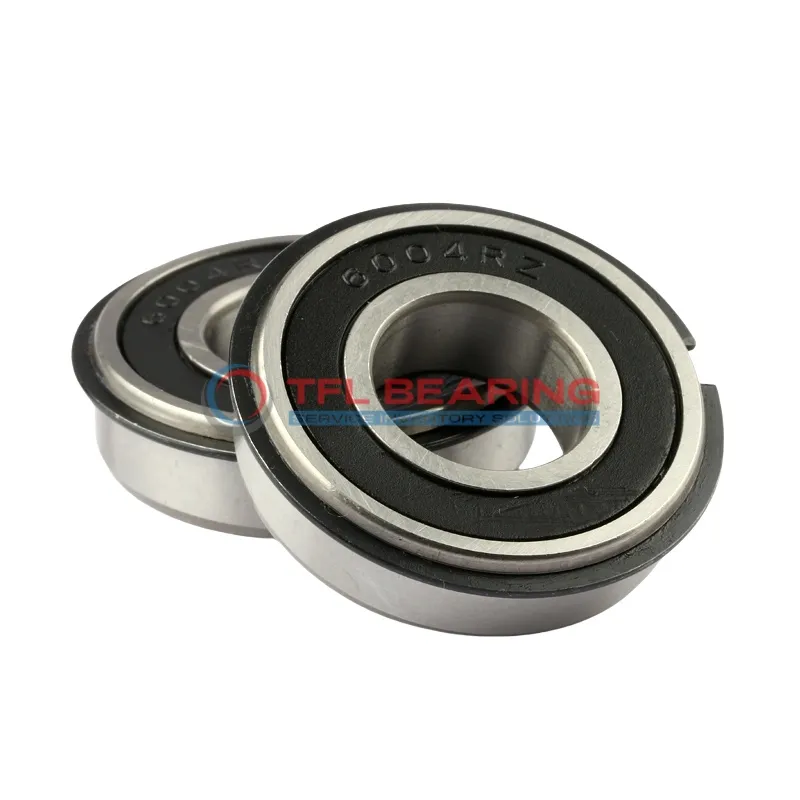

Snap Ring Groove Ball Bearings 6309-2RS1NR (CN)

The 6309-2RS1NR is a sealed snap ring groove ball bearing with a 45mm bore and 100mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 11915 lbf and operates smoothly at speeds up to 6700 RPM.

Its sealed design keeps dirt out and grease in, reducing maintenance needs. The snap ring on the outer ring ensures secure fitting, making installation straightforward.

This bearing is ideal for applications like electric motors or pumps where radial loads are common. It performs well in temperatures from -30°C to 120°C.

Weighing 811g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a reliable choice for various industrial uses.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6309-2RS1NR (CN)
Brand TFL
Interchangeable SKF
Bore Dia 45 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 100 mm
Outer Dia Tolerance -0.015mm to 0
Width 25 mm
Width Tolerance -0.120mm to 0
Outside Diameter Of Snap Ring 106.5 mm
Width Of Snap Ring 2.46 mm
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Locating Feature Bearing Outer Ring Snap Ring (fitted)
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
Dynamic Radial Load 11915 lbf
Static Radial Load 7194 lbf
Temperature Range -30°to 120 °C
ROHS Compliant
REACH Compliant
Max Speed 6700 rpm
Weight 811 g
Price（$） 21.36

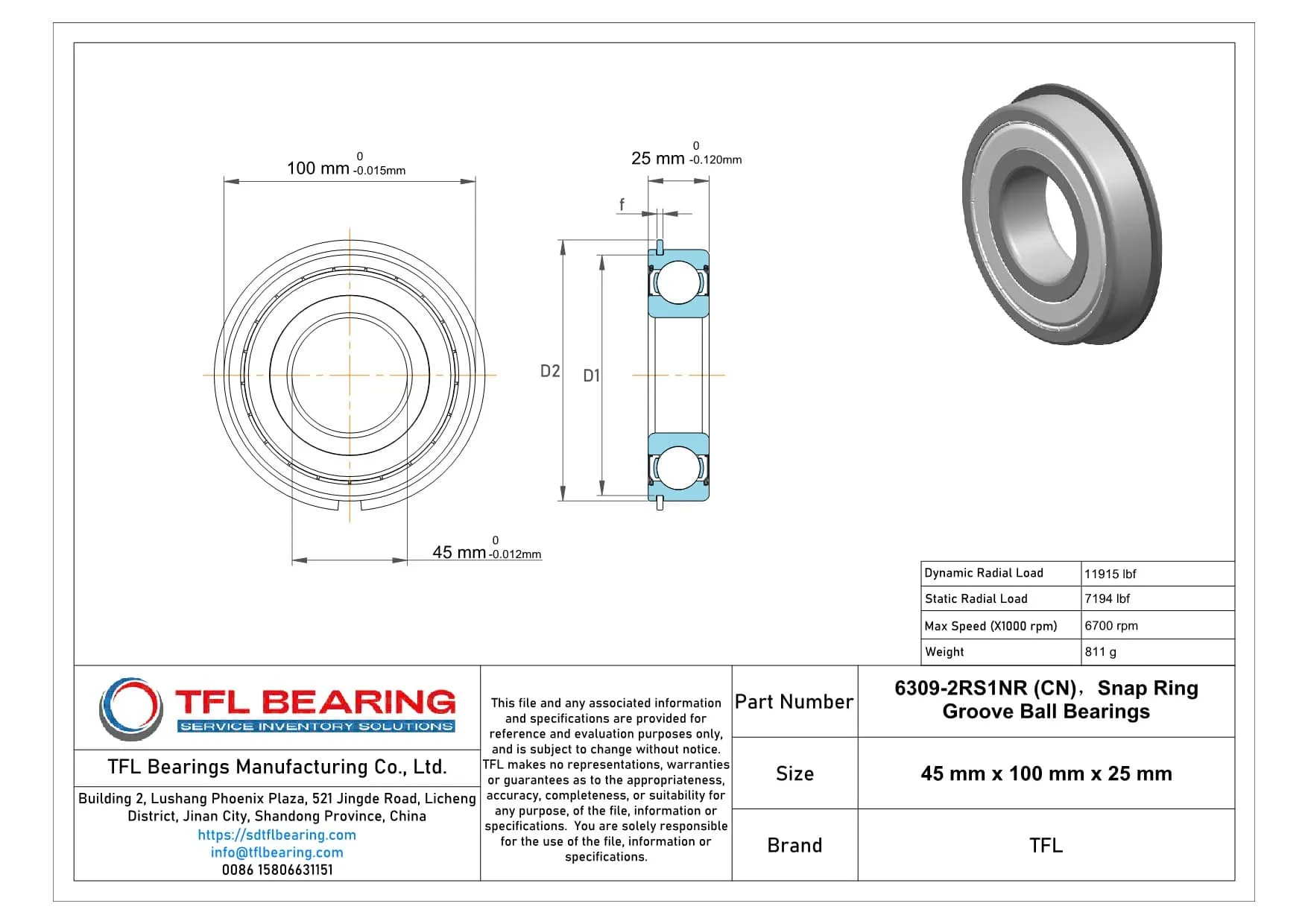

Snap Ring Groove Ball Bearings 6309-2RS1NR (CN) dimension drawing

Download DWG Download PDF

Features

How Is 6309-2RS1NR (CN) Bearing Engineered for Reliability?

6309-2RS1NR (CN) Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability, even under high radial loads up to 11915 lbf.

The snap ring on the outer ring provides secure mounting, reducing the risk of misalignment during operation.
With a maximum speed of 6,700 rpm, it delivers reliable performance in various applications.

6309-2RS1NR (CN) Bearing operates smoothly within a wide temperature range of -30° to 120°C.
Its precision engineering and quality materials make it a dependable choice for industrial use.

Application

Common Applications of 6309-2RS1NR (CN) Bearing
The 6309-2RS1NR (CN) Bearing is widely used in industrial machinery, such as pumps and gearboxes, where its sealed design helps keep contaminants out. Its snap ring feature ensures secure mounting, making it ideal for high-vibration environments.

In automotive applications, 6309-2RS1NR (CN) Bearing is often found in wheel hubs and transmissions, providing reliable radial load support. The chrome steel construction offers durability, even under demanding driving conditions.

For automation systems, 6309-2RS1NR (CN) Bearing works well in robotic arms and conveyor belts, where smooth rotation is essential. The sealed design also reduces maintenance needs, keeping operations running smoothly.

In household appliances like washing machines, 6309-2RS1NR (CN) Bearing ensures quiet and efficient performance. Its robust design handles frequent use without compromising reliability.
