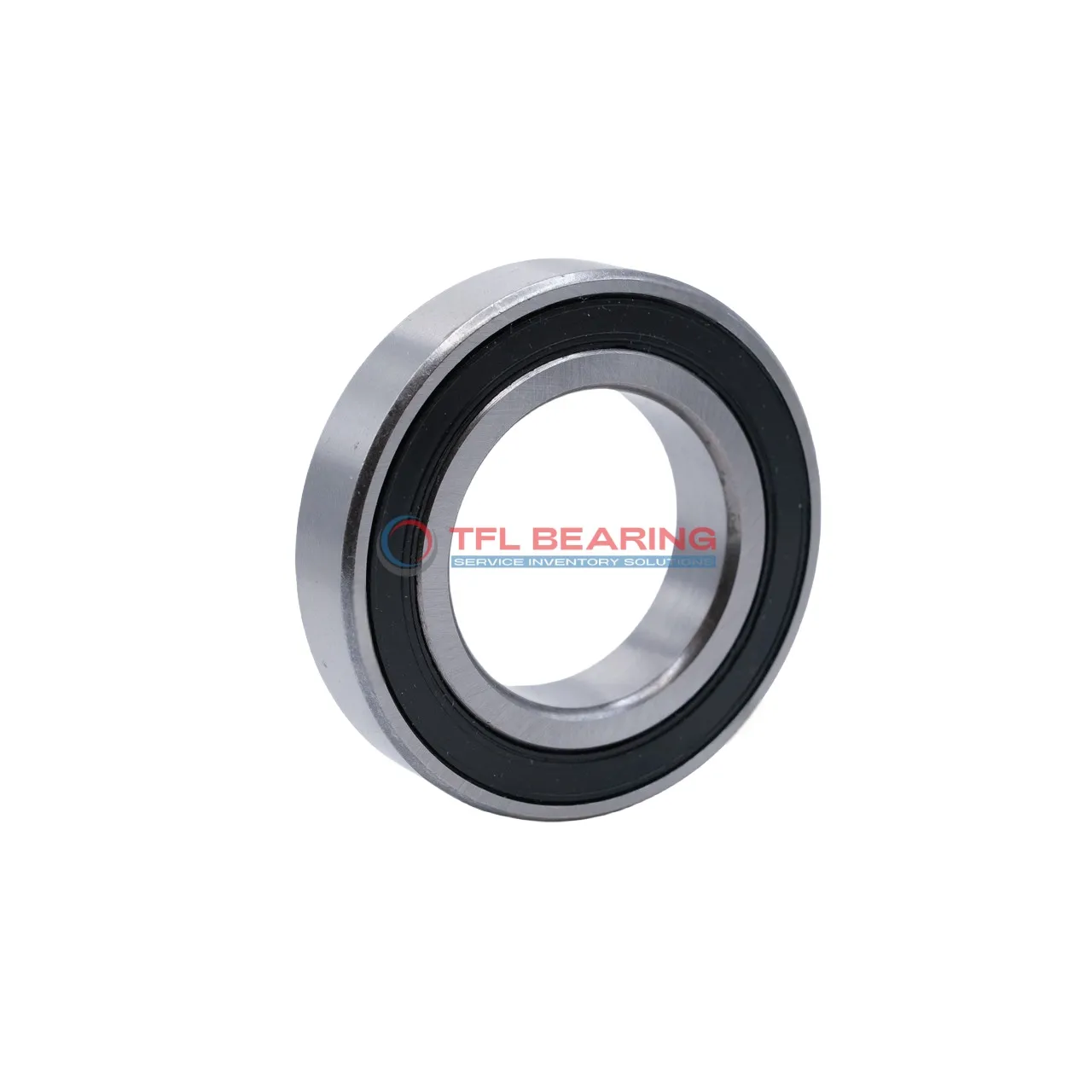

Single Row Deep Groove Ball Bearings 6208-2RS1 (CN)

Single Row Deep Groove Ball Bearings 6208-2RS1 (CN)

The 6208-2RS1 is a sealed single-row deep groove ball bearing with a 40mm bore and 80mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 6542 lbf and operates smoothly at speeds up to 8300 RPM.

Its sealed design keeps dirt out and grease in, reducing maintenance needs. The chrome steel cage ensures reliable performance even under continuous use.

This bearing works well in temperatures from -30°C to 120°C, making it suitable for various environments. It’s interchangeable with SKF bearings, offering a cost-effective alternative.

Ideal for applications like electric motors or pumps where radial loads and moderate speeds are common. Compliant with RoHS and REACH standards, it’s a safe and practical choice.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6208-2RS1 (CN)
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C0
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 6542 lbf
  • Static Radial Load 4002 lbf
  • Max Speed 8300 rpm
  • Weight 366 g
  • price（$） 8.046
Single Row Deep Groove Ball Bearings 6208-2RS1 (CN) dimension drawing
Download DWG Download PDF

Features

Why Choose 6208-2RS1 (CN) Bearing for Precision Tasks?

6208-2RS1 (CN) Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.
With a dynamic radial load capacity of 6542 lbf, it handles demanding tasks with ease.
The bearing operates smoothly at speeds up to 8,300 rpm, making it suitable for high-speed machinery.

Application

Common Applications of 6208-2RS1 (CN) Bearing
In industrial settings, 6208-2RS1 (CN) Bearing is widely used in electric motors and pumps, thanks to its sealed design that keeps contaminants out. The chrome steel construction ensures durability even in demanding environments.

Where Is 6208-2RS1 (CN) Bearing Used?
You’ll often find 6208-2RS1 (CN) Bearing in automotive applications like alternators and water pumps, where its radial load capacity and sealed protection are key. It’s also a reliable choice for light machinery requiring consistent performance.

Built for Heavy-Duty Use: 6208-2RS1 (CN) Bearing
6208-2RS1 (CN) Bearing handles radial loads effortlessly in conveyor systems and gearboxes, making it a staple in manufacturing plants. Its ABEC 1 tolerance ensures smooth operation without unnecessary complexity.

Automotive vs Industrial: Applications of 6208-2RS1 (CN) Bearing
In cars, 6208-2RS1 (CN) Bearing supports components like fans and pulleys, while in factories, it’s trusted for machinery requiring low maintenance. The temperature range suits both environments perfectly.

Perfect Fit for Automation: 6208-2RS1 (CN) Bearing
6208-2RS1 (CN) Bearing works well in robotic arms and assembly line equipment, where precision and reliability matter. The sealed design reduces downtime by keeping lubrication in and dirt out.
