Single Row Angular Contact Ball Bearings (General) 7330 BGAM

Brand: TFL Bearing Interchangeable: SKF 7330 BGAM 150 mm × 320 mm × 65 mm Metric Open
Part number: 7330 BGAM
Single Row Angular Contact Ball Bearings (General) 7330 BGAM
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia150 mm
Bore Dia Tolerance-0.018mm to 0
Outer Dia320 mm
Outer Dia Tolerance-0.028mm to 0
Width65 mm
Width Tolerance-0.05mm to 0
External Diameter On Inner Ring (Large Side Face)216.1 mm
External Diameter On Inner Ring (Small Side Face)183.85 mm
Internal Diameter On Outer Ring258.65 mm
Chamfer Dimension4 mm
Performance
Dynamic Radial Load74,700 lbf
Static Radial Load87,750 lbf
Temperature Range-30° to 110 °C
Max Speed2,800 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Contact Angle40°
For Load DirectionAngular Contact
ConstructionSingle Row
Seal TypeOpen
Distance Pressure Point (a)131 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight26 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

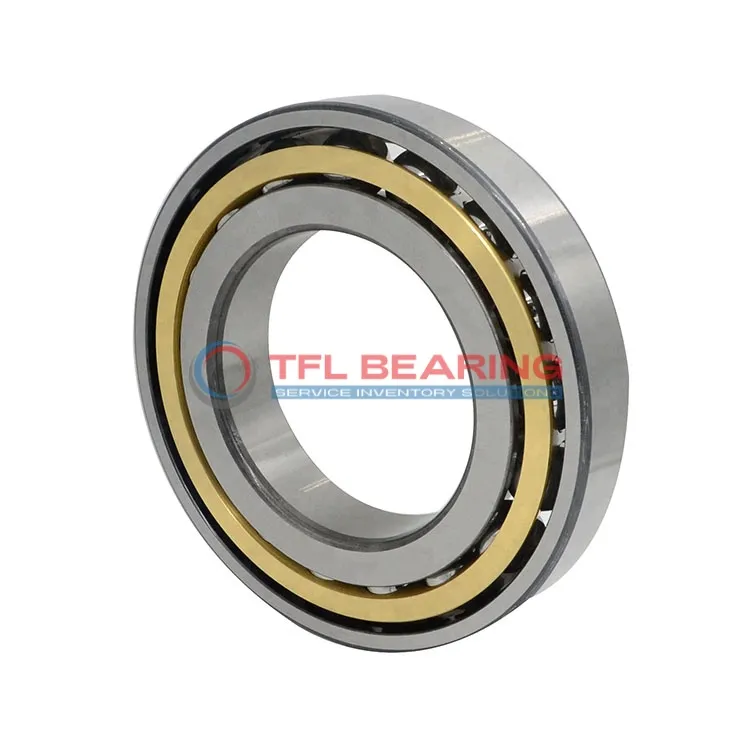

The 7330 BGAM is a single-row angular contact ball bearing with a 150mm bore and 320mm outer diameter, crafted from sturdy chrome steel. Its 40° contact angle efficiently manages combined radial and axial loads, supporting up to 74700 lbf dynamically.

The open design allows for easy lubrication, while the brass cage enhances durability and smooth operation. It handles speeds up to 2800 RPM and operates reliably in temperatures from -30°C to 110°C.

With a P6 tolerance class, this bearing offers precise performance for demanding applications. It’s interchangeable with SKF models, making it a practical choice for replacements. Ideal for heavy-duty machinery like pumps or gearboxes where angular contact loads are common.

Weighing 26kg, it’s built for robust performance in industrial settings. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

Performance Features of 7330 BGAM Bearing

7330 BGAM Bearing is designed with a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls provide strength, while the brass cage ensures smooth operation.

With a dynamic radial load capacity of 74,700 lbf, 7330 BGAM Bearing performs reliably under heavy loads.
The P6 tolerance class ensures precision, making it suitable for high-accuracy applications.

7330 BGAM Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open design allows for easy lubrication, extending service life and reducing maintenance needs.

The bearing’s dimensions (150 mm×320 mm×65 mm) make it suitable for industrial machinery.
Its maximum speed of 2,800 rpm balances performance and durability in demanding conditions.

Application

Industrial Uses of 7330 BGAM Bearing
The 7330 BGAM Bearing is commonly used in heavy machinery like industrial pumps and compressors, where its angular contact design handles combined radial and axial loads efficiently. Its brass cage ensures smooth operation even under high-speed conditions.

In automotive applications, 7330 BGAM Bearing is found in wheel hubs and transmissions, providing reliable performance under varying loads. The P6 tolerance class makes it suitable for precision automotive components.

For automation systems, 7330 BGAM Bearing supports robotic arms and CNC machines, where its 40° contact angle enhances stability. The chrome steel construction offers durability in continuous operation.

Medical imaging devices also benefit from 7330 BGAM Bearing’s precision, ensuring accurate movement in scanners and diagnostic equipment. Its lubricated design reduces maintenance needs in sterile environments.

In household appliances like washing machines, 7330 BGAM Bearing’s robust design handles frequent load changes. The metric sizing ensures compatibility with a wide range of European and Asian models.
