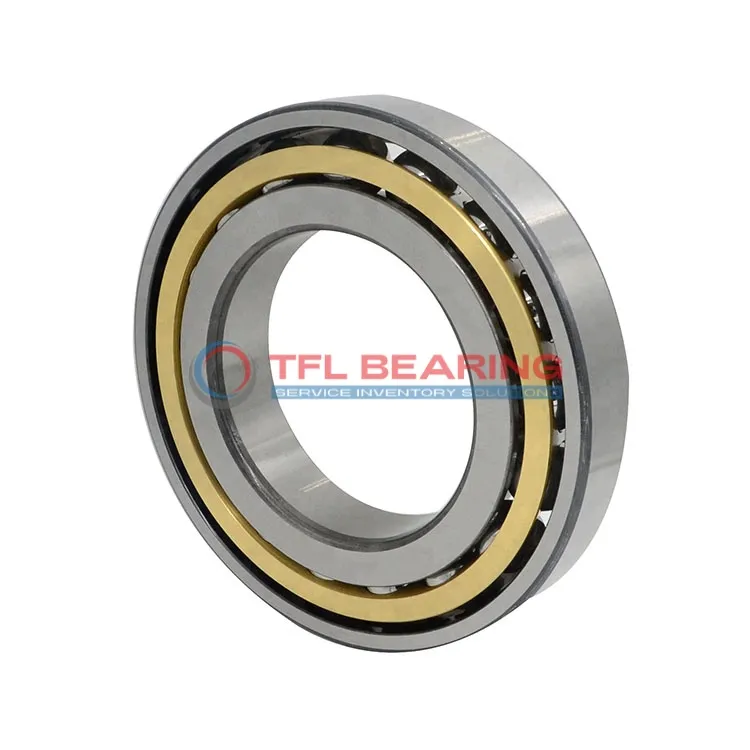

Single Row Angular Contact Ball Bearings (General) 7236 BCBM

Single Row Angular Contact Ball Bearings (General) 7236 BCBM

The 7236 BCBM is a single-row angular contact ball bearing with a 180mm bore and 320mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 65475 lbf and operates smoothly at speeds up to 2600 RPM.

Its 40° contact angle efficiently manages combined loads, while the brass cage enhances durability. The open design allows for easy lubrication and maintenance.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for machinery like pumps or compressors where angular contact is needed.

Weighing 18kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for various industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7236 BCBM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 180 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 320 mm
  • Outer Dia Tolerance -0.028mm to 0
  • Width 52 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 234.9 mm
  • External Diameter On Inner Ring (Small Side Face) 209.6 mm
  • Internal Diameter On Outer Ring 268.75 mm
  • Chamfer Dimension 4 mm
  • Distance Pressure Point (a) 131 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 65475 lbf
  • Static Radial Load 84375 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 2600 rpm
  • Weight 18 kg
  • Price（$） 1051.58
Single Row Angular Contact Ball Bearings (General) 7236 BCBM dimension drawing
Download DWG Download PDF

Features

Performance Features of 7236 BCBM Bearing

7236 BCBM Bearing is constructed with a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls ensure durability, while the brass cage maintains smooth operation.

With a dynamic radial load capacity of 65475 lbf, it performs reliably in demanding conditions.
The P6 tolerance class ensures precision, making it suitable for high-accuracy applications.

Operating within a temperature range of -30° to 110°C, 7236 BCBM Bearing adapts to various environments.
Its open design allows for easy lubrication, enhancing its service life and reducing maintenance needs.

Application

Industrial Uses of 7236 BCBM Bearing
7236 BCBM Bearing is commonly used in heavy machinery like industrial pumps and compressors, where its angular contact design handles combined loads effectively. The brass cage ensures smooth operation even under high radial forces.

In automotive applications, 7236 BCBM Bearing is found in wheel hubs and transmissions, providing reliable performance under angular loads. Its P6 tolerance class makes it suitable for precision automotive components.

For automation systems, 7236 BCBM Bearing supports robotic arms and CNC machines, offering stability during high-speed rotations. The chrome steel construction enhances durability in continuous operation environments.

Medical imaging devices benefit from 7236 BCBM Bearing’s precise movement and low friction. Its lubricated design ensures quiet operation, crucial for sensitive medical equipment.

In consumer appliances like large fans, 7236 BCBM Bearing’s robust build ensures long service life. The open seal type allows for easy maintenance in household and industrial settings.
