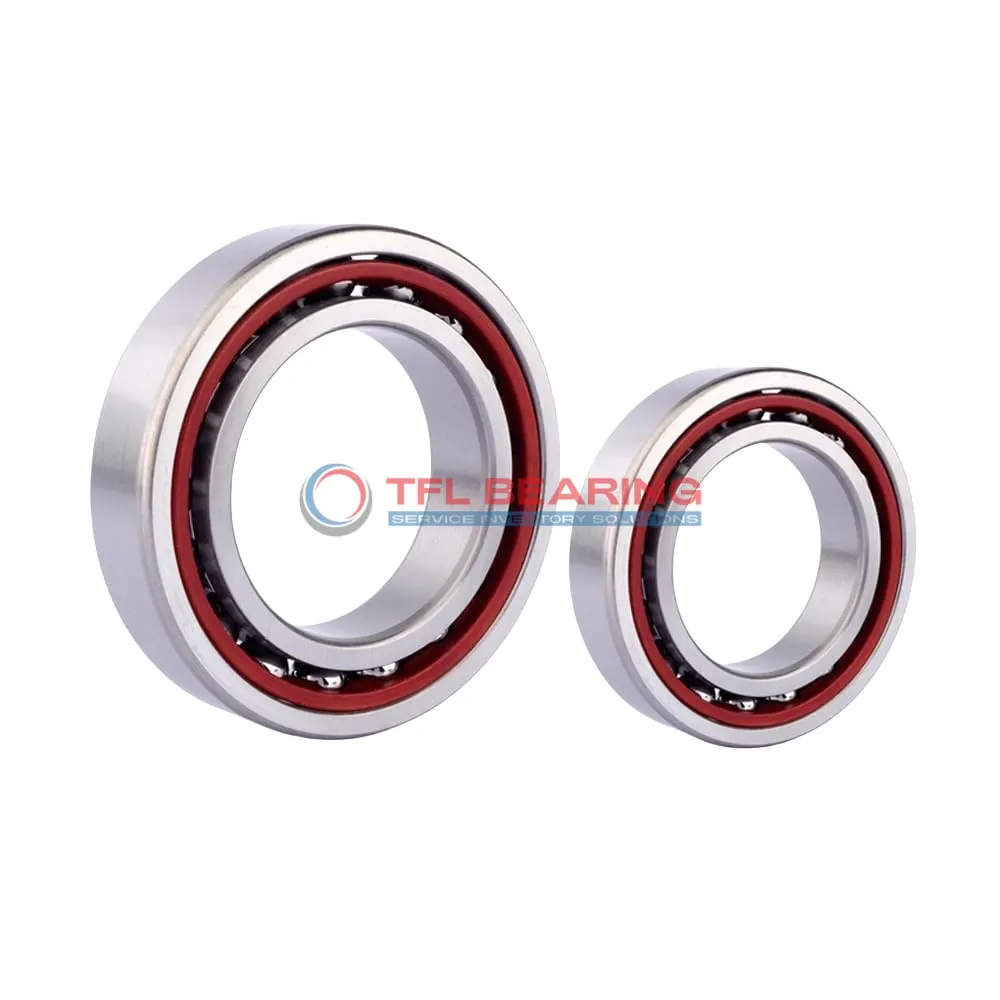

Super Precision Angular Contact Ball Bearings 7010 ACB/HCP4A

Brand: TFL Bearing Interchangeable: SKF 7010 ACB/HCP4A 50 mm × 80 mm × 16 mm Metric Open
Part number: 7010 ACB/HCP4A
Super Precision Angular Contact Ball Bearings 7010 ACB/HCP4A
In Stock
US$268.63 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia50 mm
Bore Dia Tolerance-0.006mm to 0
Outer Dia80 mm
Outer Dia Tolerance-0.007mm to 0
Width16 mm
Width Tolerance-0.2mm to 0
Ball Dia5.556 mm
Performance
PreloadAvailable
Dynamic Radial Load2,106 lbf
Static Radial Load1,654 lbf
Temperature Range-30° to 110 °C
Max Speed40,000 rpm
Characteristics
Ball Qty27
Contact Angle25°
Tolerance ClassP4 (ABEC-7)
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementAvailable
For Load DirectionAngular Contact
LubricationLubricated
Weight0.28 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7010 ACB/HCP4A is a super precision angular contact ball bearing with a 50mm bore and 80mm outer diameter, crafted from high-quality chrome steel. It features a 25° contact angle and ceramic balls for smooth operation.

This bearing handles radial loads up to 2106 lbf and spins at impressive speeds of 40,000 RPM. Its phenolic cage ensures durability while keeping weight low at just 0.28kg.

The open design allows for easy lubrication, and it operates reliably in temperatures from -30°C to 110°C. With P4 tolerance class, it offers exceptional precision for demanding applications.

Ideal for high-speed machinery like spindles or robotics where accuracy is crucial. It’s interchangeable with SKF bearings, making replacements straightforward.

Features

Engineered for Precision: 7010 ACB/HCP4A Bearing

7010 ACB/HCP4A Bearing features a 25° contact angle, optimising load distribution for high-precision applications.
Its ceramic balls and chrome steel rings reduce friction, enhancing performance in demanding conditions.

With a dynamic radial load capacity of 2106 lbf, it handles rigorous operations smoothly.
The phenolic cage ensures stability, even at speeds up to 40,000 rpm.

7010 ACB/HCP4A Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open design allows for easy lubrication, maintaining long-term reliability.

The P4 tolerance class guarantees exceptional accuracy, ideal for precision machinery.
This bearing’s matched arrangement option further enhances its versatility in complex setups.

Application

How Does 7010 ACB/HCP4A Bearing Improve Performance?
7010 ACB/HCP4A Bearing is widely used in high-speed machine tools, where its 25° contact angle ensures smooth rotation under radial and axial loads. The ceramic balls reduce friction, making it ideal for precision grinding applications.

In robotics, 7010 ACB/HCP4A Bearing provides reliable support for articulated arms, thanks to its phenolic cage and P4 tolerance class. This combination offers low vibration and high accuracy for repetitive tasks.

For medical imaging devices like MRI machines, 7010 ACB/HCP4A Bearing’s chrome steel rings and ceramic balls deliver quiet operation. The open design allows for easy lubrication, extending service life in critical healthcare environments.

Automotive enthusiasts appreciate 7010 ACB/HCP4A Bearing in performance gearboxes, where its matched arrangement handles high RPMs. The metric sizing ensures compatibility with European and Asian car models.

In 3D printers, 7010 ACB/HCP4A Bearing’s precision reduces layer shifting, improving print quality. Its lightweight phenolic cage also minimises inertia for faster directional changes.
