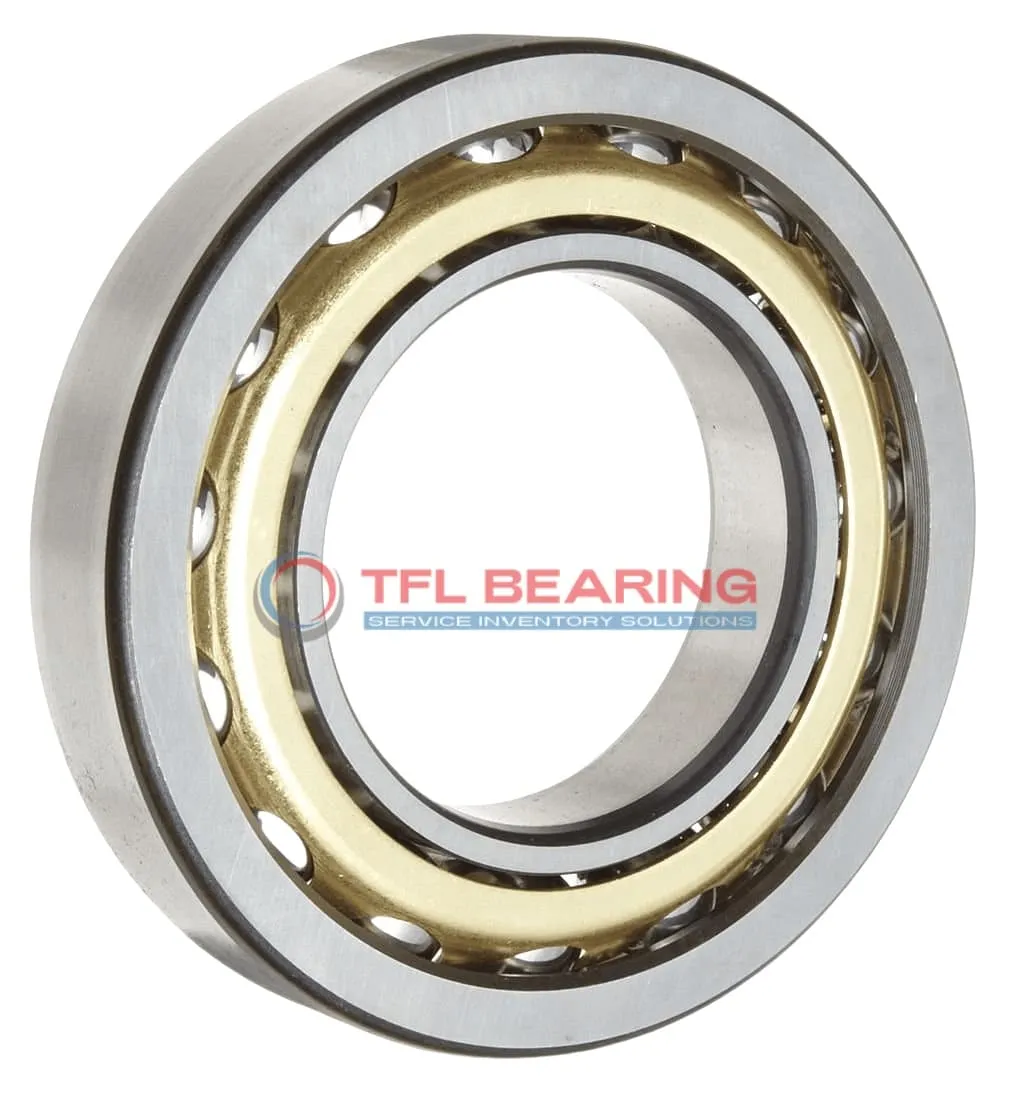

Single Row Angular Contact Ball Bearings (General) 7316 BECBY

Single Row Angular Contact Ball Bearings (General) 7316 BECBY

The 7316 BECBY is a single-row angular contact ball bearing with an 80mm bore and 170mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 32175 lbf and operates smoothly at speeds up to 5000 RPM.

With a 40° contact angle, it efficiently handles combined radial and axial loads. The brass cage enhances durability, while the open design allows for easy lubrication.

This bearing suits applications like pumps or gearboxes where precise angular contact is needed. Its P6 tolerance class ensures reliable performance in demanding conditions.

Weighing 3.8kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards, it’s a safe and versatile choice.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7316 BECBY
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 39 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 115.2 mm
  • External Diameter On Inner Ring (Small Side Face) 97.07 mm
  • Internal Diameter On Outer Ring 136.75 mm
  • Chamfer Dimension 2.1 mm
  • Distance Pressure Point (a) 72 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 32175 lbf
  • Static Radial Load 26550 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 5000 rpm
  • Weight 3.8 kg
  • Price（$） 86.82
Single Row Angular Contact Ball Bearings (General) 7316 BECBY dimension drawing
Download DWG Download PDF

Features

Why Choose 7316 BECBY Bearing for Precision Tasks?

7316 BECBY Bearing features a 40° contact angle, ideal for handling combined radial and axial loads with precision.
Its chrome steel rings and balls ensure durability, while the brass cage maintains smooth operation.

The bearing’s P6 tolerance class (ABEC-3) guarantees consistent performance in high-precision applications.
With a dynamic radial load capacity of 32,175 lbf, it excels in demanding industrial environments.

7316 BECBY Bearing operates efficiently at speeds up to 5,000 rpm, balancing speed and reliability.
Its open design allows for easy lubrication, extending service life and reducing maintenance needs.

Application

Industrial Uses of 7316 BECBY Bearing
The 7316 BECBY Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. Its brass cage ensures smooth operation even at moderate speeds.

In automotive applications, 7316 BECBY Bearing fits well in wheel hubs and transmissions, thanks to its robust chrome steel construction. The P6 tolerance class provides the precision needed for reliable performance.

For automation systems, 7316 BECBY Bearing supports robotic arms and conveyor belts, offering durability under continuous use. The open design allows for easy lubrication, extending service life.

Where Is 7316 BECBY Bearing Used?
You’ll find 7316 BECBY Bearing in industrial fans and pumps, where its high dynamic load capacity keeps things running smoothly. The metric sizing makes it versatile for various equipment.

In medical imaging devices, 7316 BECBY Bearing’s precise tolerances ensure accurate movement. The lubricated design reduces friction, which is crucial for sensitive applications.

Built for Heavy-Duty Use: 7316 BECBY Bearing
This bearing excels in construction machinery, handling heavy loads without compromising performance. The chrome steel rings and brass cage provide a good balance of strength and durability.

In 3D printers, 7316 BECBY Bearing’s angular contact design ensures precise linear motion. Its temperature range suits both indoor and mild outdoor environments.

Automotive vs Aerospace: Applications of 7316 BECBY Bearing
In cars, 7316 BECBY Bearing is often used in differential systems, where its load capacity shines. For aerospace, it’s suitable for auxiliary gearboxes due to its reliability.

In packaging machines, this bearing offers consistent performance under repetitive stress. The 170 mm outer diameter provides a stable fit for larger assemblies.
