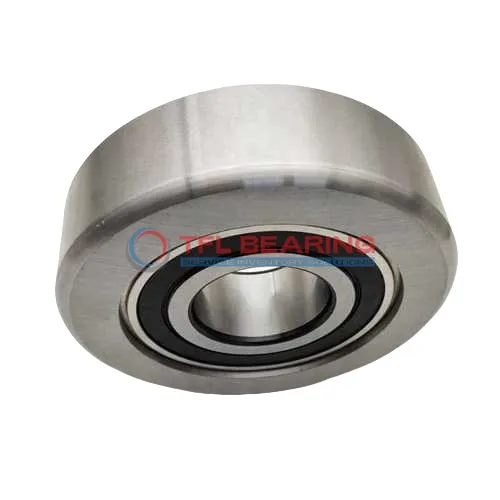

Mast Guide Bearings MG 306/36 DDL‑16

Mast Guide Bearings MG 306/36 DDL‑16

The MG 306/36 DDL‑16 is a mast guide bearing with a 36mm inner diameter and 90.5mm outer diameter, designed for heavy-duty applications. It handles dynamic loads up to 75,680 N and static loads up to 93,600 N, making it a sturdy choice.

With an inner ring width of 9mm and outer ring width of 29mm, it offers a compact yet robust design. The 6mm radius ensures smooth operation and reduces stress concentrations.

Weighing just over 1kg, it’s lightweight for its size while maintaining durability. Ideal for use in construction equipment or industrial machinery where reliable guidance is needed.

Its balanced design and high load capacity make it suitable for demanding environments. A dependable option for both new installations and replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 306/36 DDL‑16
  • Brand TFL & OEM
  • Inner Diameter (d) 36.000 mm
  • Outer Diameter (D) 90.50 mm
  • Inner Ring Width (b) 9 mm
  • Outer Ring Width (B) 29.000 mm
  • Radius (R) 6 mm
  • Dynamic Capacity (Cr.) 75,680 N
  • Static Capacity (Cor.) 93,600 N
  • Weight 1.0886 Kg
Mast Guide Bearings MG 306/36 DDL‑16 dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 306/36 DDL‑16 Bearing

MG 306/36 DDL‑16 Bearing is built with a robust design, handling dynamic loads up to 75,680 N for reliable performance.
Its static capacity of 93,600 N ensures stability in heavy-duty applications.

The compact dimensions of 36.000 mm x 90.50 mm x 29.000 mm make it suitable for space-constrained installations.
With a weight of 1.0886 Kg, it balances strength and ease of handling.

The 6 mm radius design reduces stress concentrations, enhancing durability.
This bearing is ideal for applications requiring high load capacity and precision.

Application

Industrial Uses of MG 306/36 DDL‑16 Bearing
MG 306/36 DDL‑16 Bearing is commonly used in heavy machinery, such as cranes and lifting equipment, where its high dynamic capacity ensures reliable performance under load. The robust design makes it suitable for harsh environments, including construction sites and industrial plants.

In automation systems, MG 306/36 DDL‑16 Bearing provides smooth guidance for linear motion components, like robotic arms and conveyor belts. Its precise dimensions and durability help maintain accuracy in repetitive tasks.

For wind turbine applications, MG 306/36 DDL‑16 Bearing’s static capacity supports the mast structure, ensuring stability even in extreme weather conditions. The stainless steel construction also resists corrosion, extending its service life.
