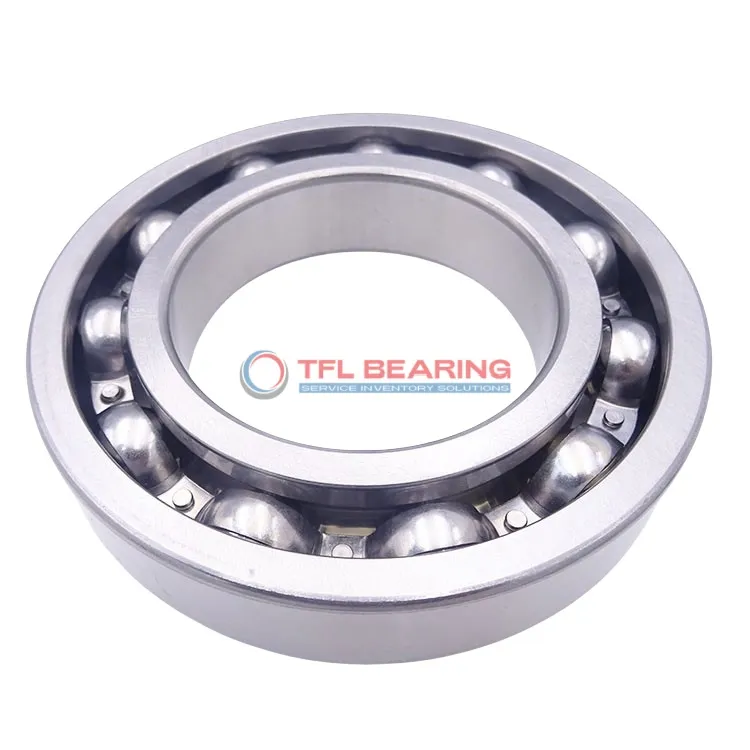

Single Row Deep Groove Ball Bearings 61826

Single Row Deep Groove Ball Bearings 61826

The 61826 is a single-row deep groove ball bearing with a 130mm bore and 165mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 8475 lbf and operates smoothly at speeds up to 4800 RPM.

Its open design allows for easy lubrication, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing 0.75kg, it balances strength and portability. Compliant with RoHS and REACH standards, it’s a safe choice for various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61826
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 130 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 165 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 18 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 8475 lbf
  • Static Radial Load 9667 lbf
  • Max Speed 4800 rpm
  • Weight 0.75 kg
  • price（$） 143.1
Single Row Deep Groove Ball Bearings 61826 dimension drawing
Download DWG Download PDF

Features

Performance Features of 61826 Bearing

61826 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 8475 lbf, making it suitable for demanding applications.

The stainless steel cage ensures proper ball alignment, reducing friction and wear.
With a maximum speed of 4,800 rpm, it delivers reliable performance in various conditions.

61826 Bearing operates efficiently within a temperature range of -30° to 120°C.
Its P6 tolerance class ensures high precision and consistent performance over time.

The open design simplifies maintenance while the CN radial clearance provides smooth operation.
This bearing is a cost-effective choice for industrial applications requiring durability.

Application

Common Applications of 61826 Bearing
61826 Bearing is widely used in industrial machinery, especially in electric motors and pumps where its single row design handles radial loads efficiently. The open seal type allows for easy lubrication, extending its service life in demanding conditions.

In automotive applications, 61826 Bearing fits well in wheel hubs and alternators, providing smooth rotation under varying speeds. Its chrome steel construction ensures durability even in high-temperature environments.

For automation systems, 61826 Bearing is a reliable choice for conveyor rollers and robotic arms, thanks to its precise P6 tolerance. The stainless steel cage adds extra resistance to wear, making it suitable for continuous operation.

In household appliances like washing machines, 61826 Bearing offers quiet and stable performance. Its metric dimensions make it compatible with a variety of European and Asian appliance models.
