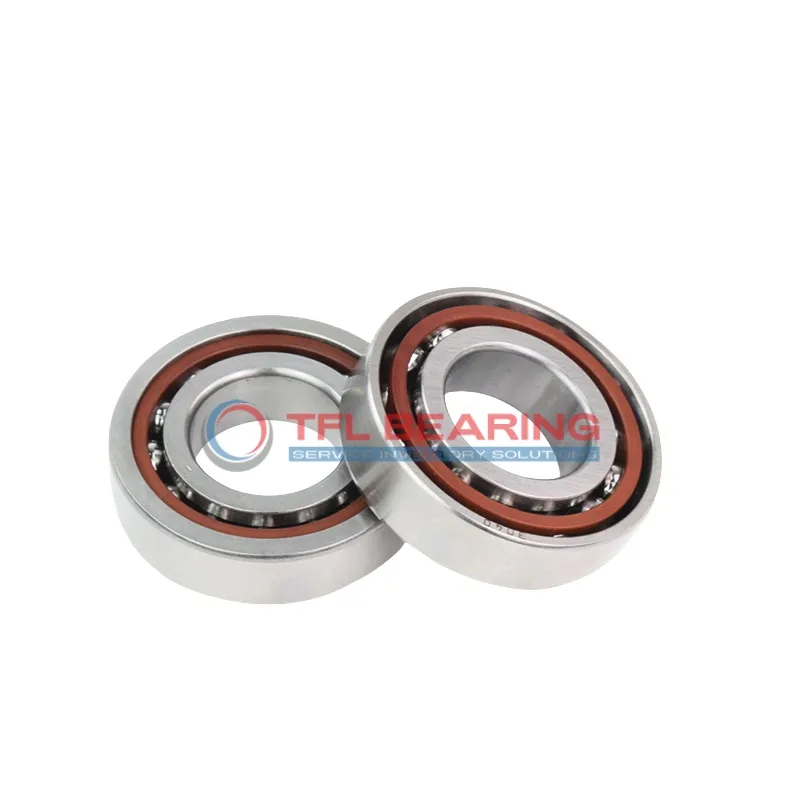

Single Row Angular Contact Ball Bearings (General) 7305 BECBPH

Single Row Angular Contact Ball Bearings (General) 7305 BECBPH

The 7305 BECBPH is a single-row angular contact ball bearing with a 25mm bore and 62mm outer diameter, crafted from sturdy chrome steel. Its 40° contact angle efficiently handles combined radial and axial loads, with a dynamic radial load capacity of 5962 lbf.

The open design and nylon cage allow smooth operation at speeds up to 15,000 RPM, while the P6 tolerance ensures precise performance. Lubrication is pre-applied for immediate use, suitable for temperatures from -30°C to 110°C.

This bearing is interchangeable with SKF models, making replacements straightforward. Ideal for applications like pumps or electric motors where angular loads are present.

Weighing 0.23kg, it’s a compact yet durable choice. Compliant with RoHS and REACH standards for safe industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7305 BECBPH
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 17 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 39.75 mm
  • External Diameter On Inner Ring (Small Side Face) 32.38 mm
  • Internal Diameter On Outer Ring 48.25 mm
  • Chamfer Dimension 1.1 mm
  • Distance Pressure Point (a) 26.8 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 5962 lbf
  • Static Radial Load 3442 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 15000 rpm
  • Weight 0.23 kg
Single Row Angular Contact Ball Bearings (General) 7305 BECBPH dimension drawing
Download DWG Download PDF

Features

Why Choose 7305 BECBPH Bearing for Precision Tasks?

7305 BECBPH Bearing features a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.

The nylon cage in 7305 BECBPH Bearing reduces friction and noise, enhancing smooth operation.
With a maximum speed of 15,000 rpm, it performs efficiently in high-speed environments.

7305 BECBPH Bearing’s P6 tolerance class guarantees precision, making it suitable for accurate machinery.
Its dynamic radial load capacity of 5962 lbf ensures reliable performance under heavy loads.

The open design of 7305 BECBPH Bearing allows for easy lubrication, extending its service life.
It operates smoothly within a temperature range of -30° to 110°C, adapting to various conditions.

Application

Industrial Uses of 7305 BECBPH Bearing
7305 BECBPH Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. The open design and nylon cage make it suitable for high-speed operations up to 15,000 rpm.

In automotive applications, 7305 BECBPH Bearing works well in gearboxes and wheel hubs, thanks to its chrome steel construction. Its P6 tolerance ensures precise alignment, reducing wear in demanding conditions.

For automation systems, 7305 BECBPH Bearing supports robotic arms and conveyor belts, offering reliable performance. The lubricated design helps maintain smooth operation over long periods.

In household appliances like washing machines, 7305 BECBPH Bearing provides quiet and durable performance. Its metric sizing makes it easy to replace in various European and Asian models.
