Single Row Deep Groove Ball Bearings 6306-2RS1/GJN

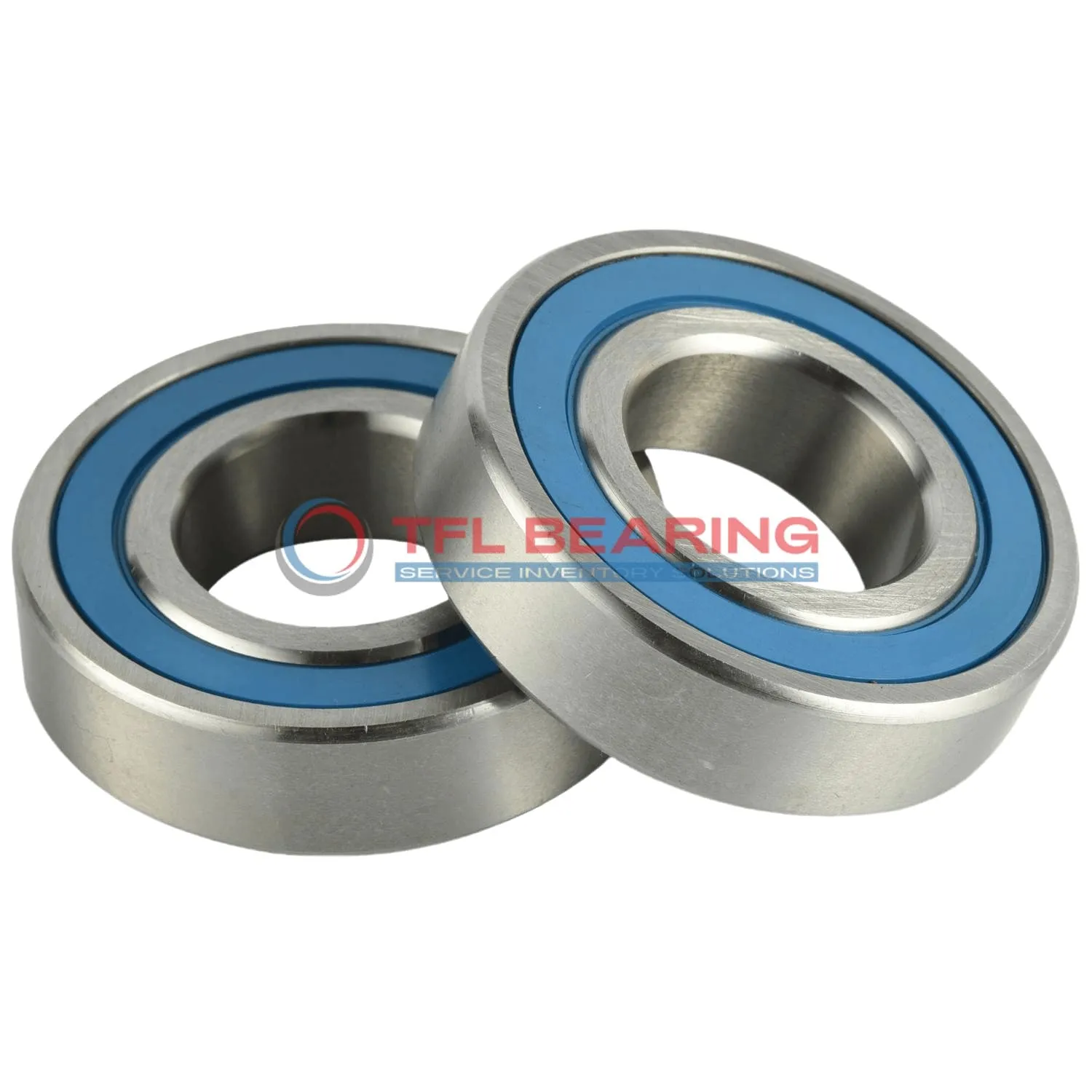

Single Row Deep Groove Ball Bearings 6306-2RS1/GJN

The 6306-2RS1/GJN is a single-row deep groove ball bearing with a 30mm bore and 72mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 6002 lbf and operates smoothly at speeds up to 9600 RPM.

Its sealed design keeps out dust and moisture, while the chrome steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where radial loads are common.

Weighing 346g, it’s a robust yet manageable size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6306-2RS1/GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 19 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 6002 lbf
  • Static Radial Load 3372 lbf
  • Max Speed 9600 rpm
  • Weight 346 g
  • price（$） 8.793
Single Row Deep Groove Ball Bearings 6306-2RS1/GJN dimension drawing
Download DWG Download PDF

Features

How Does 6306-2RS1/GJN Bearing Reduce Friction?

6306-2RS1/GJN Bearing features a single-row deep groove design, optimised for smooth radial load handling.

The sealed construction helps keep contaminants out, ensuring consistent performance over time.

Made from chrome steel, it offers good resistance to wear, even in demanding conditions.

With a maximum speed of 9,600 rpm, it balances efficiency and durability for various applications.

Application

Common Applications of 6306-2RS1/GJN Bearing
In industrial settings, 6306-2RS1/GJN Bearing is widely used in electric motors and pumps due to its sealed design, which protects against dust and moisture. Its chrome steel construction ensures durability in demanding environments.

Where Is 6306-2RS1/GJN Bearing Used?
You’ll often find 6306-2RS1/GJN Bearing in automotive applications like alternators and water pumps, where its radial load capacity and sealed performance are key. The metric sizing makes it a versatile fit for various vehicle models.

Ideal for Precision: 6306-2RS1/GJN Bearing
For medical devices such as centrifuges, 6306-2RS1/GJN Bearing offers reliable performance with minimal maintenance. The sealed design helps maintain hygiene by preventing contamination.

Automotive vs Industrial: Applications of 6306-2RS1/GJN Bearing
In automotive systems, 6306-2RS1/GJN Bearing handles radial loads in components like fans and pulleys. Industrial machinery benefits from its robustness in conveyor systems and gearboxes.

Practical Applications of 6306-2RS1/GJN Bearing
Household appliances like washing machines often use 6306-2RS1/GJN Bearing for its quiet operation and long service life. The sealed design also reduces the need for frequent lubrication.
