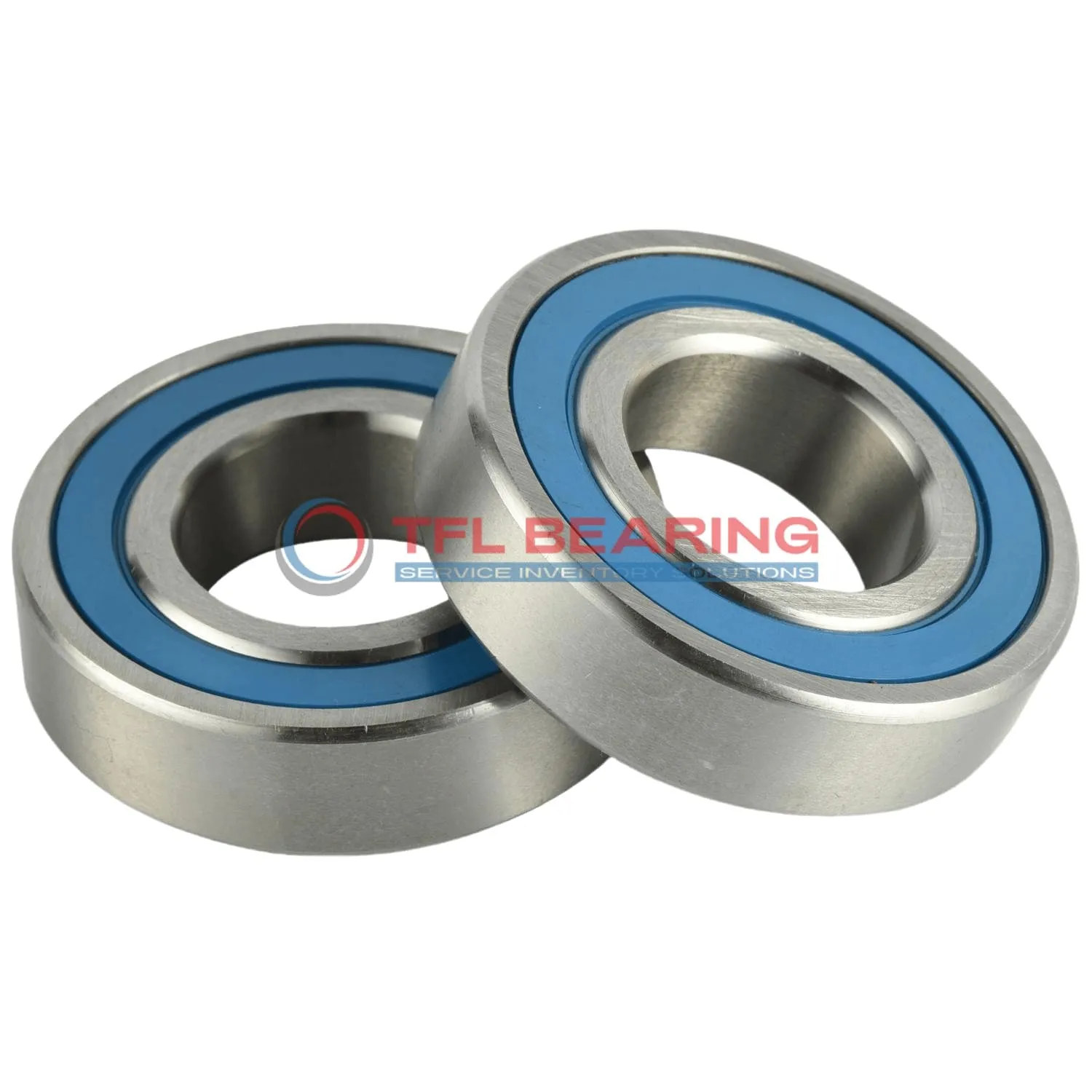

Single Row Deep Groove Ball Bearings 6306-2RS1/C3LTVT210

Single Row Deep Groove Ball Bearings 6306-2RS1/C3LTVT210

The 6306-2RS1/C3LTVT210 is a single-row deep groove ball bearing with a 30mm bore and 72mm outer diameter, crafted from sturdy chrome steel. Its sealed design keeps dirt out and lubrication in, making it low-maintenance.

This bearing handles radial loads up to 6002 lbf and spins smoothly at speeds up to 9600 RPM. The C3 radial clearance allows for slight thermal expansion, ideal for varying temperatures.

Its chrome steel cage ensures durability, while the sealed construction extends service life. Suitable for temperatures from -30°C to 120°C, it’s versatile for many environments.

Weighing 346g, it’s a robust choice for applications like electric motors or conveyor systems. Compliant with RoHS and REACH standards, it’s a reliable, eco-friendly option.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6306-2RS1/C3LTVT210
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 19 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 6002 lbf
  • Static Radial Load 3372 lbf
  • Max Speed 9600 rpm
  • Weight 346 g

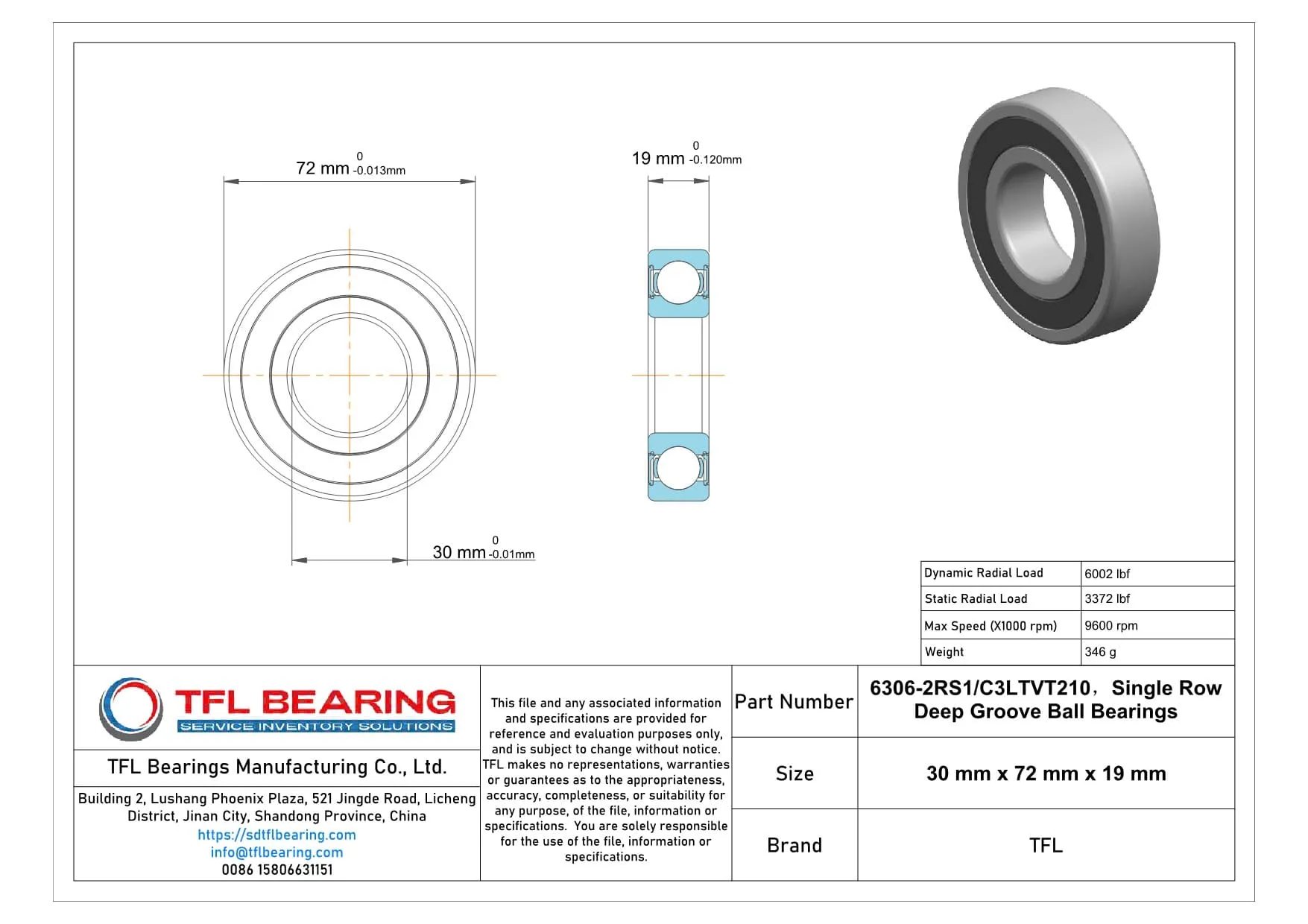

Single Row Deep Groove Ball Bearings 6306-2RS1/C3LTVT210 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6306-2RS1/C3LTVT210 Bearing

6306-2RS1/C3LTVT210 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 6002 lbf, ensuring reliable performance in various applications.

The sealed design of 6306-2RS1/C3LTVT210 Bearing protects against dust and moisture, extending its service life.
It operates smoothly within a temperature range of -30° to 120°C, making it versatile for different environments.

With a maximum speed of 9,600 rpm, 6306-2RS1/C3LTVT210 Bearing balances efficiency and durability.
The C3 radial clearance ensures optimal performance under varying operational conditions.

Application

Common Applications of 6306-2RS1/C3LTVT210 Bearing
6306-2RS1/C3LTVT210 Bearing is widely used in industrial machinery, such as pumps and electric motors, where its sealed design helps keep contaminants out.
The C3 clearance ensures reliable performance even under varying thermal conditions, making it suitable for equipment with frequent start-stop cycles.

How Does 6306-2RS1/C3LTVT210 Bearing Improve Performance?
In automotive applications like alternators and water pumps, 6306-2RS1/C3LTVT210 Bearing reduces friction and extends component life.
Its chrome steel construction provides good resistance to wear, ensuring consistent operation over time.

Built for Heavy-Duty Use: 6306-2RS1/C3LTVT210 Bearing
6306-2RS1/C3LTVT210 Bearing handles radial loads effectively in construction equipment, such as conveyor systems and gearboxes.
The sealed design protects against dust and moisture, making it ideal for harsh environments.

Light-Duty vs Heavy-Duty: Best Uses for 6306-2RS1/C3LTVT210 Bearing
For light-duty applications like household appliances, 6306-2RS1/C3LTVT210 Bearing offers quiet and smooth operation.
In heavy-duty scenarios, such as industrial fans, its robust design ensures durability under continuous use.
