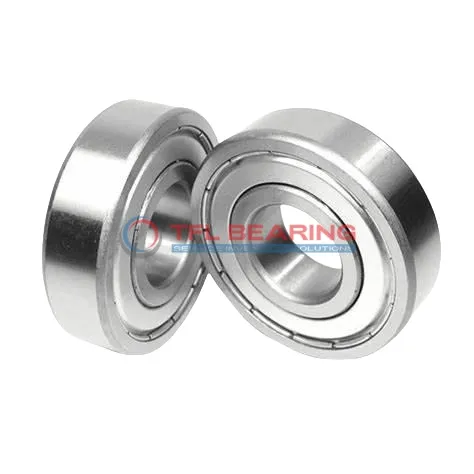

Single Row Deep Groove Ball Bearings 6203-2Z/C3WT

Single Row Deep Groove Ball Bearings 6203-2Z/C3WT

The 6203-2Z/C3WT is a compact single row deep groove ball bearing, measuring 17mm by 40mm by 12mm. Made from chrome steel, it handles radial loads up to 2147 lbf and spins smoothly at speeds up to 17,000 RPM.

Its shielded design keeps dirt out while the C3 radial clearance allows for thermal expansion. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for electric motors, pumps, or small machinery where reliable radial load support is needed.

Weighing just 65g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6203-2Z/C3WT
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 40 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 12 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2147 lbf
  • Static Radial Load 1079 lbf
  • Max Speed 17000 rpm
  • Weight 65 g
  • price（$） 1.296
Single Row Deep Groove Ball Bearings 6203-2Z/C3WT dimension drawing
Download DWG Download PDF

Features

Performance Features of 6203-2Z/C3WT Bearing

6203-2Z/C3WT Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 2147 lbf, ensuring reliable performance in various applications.

The shielded design of 6203-2Z/C3WT Bearing protects against dust and debris, enhancing durability.
With a maximum speed of 17,000 rpm, it delivers smooth and efficient operation.

6203-2Z/C3WT Bearing operates in temperatures from -30° to 120°C, suitable for diverse environments.
Its C3 radial clearance provides flexibility for thermal expansion in different conditions.

The compact size of 17 mm×40 mm×12 mm makes 6203-2Z/C3WT Bearing ideal for space-constrained applications.
Its lightweight design at 65 g ensures easy handling without compromising strength.

Application

Industrial Uses of 6203-2Z/C3WT Bearing
6203-2Z/C3WT Bearing works well in conveyor systems, where its shielded design keeps out dust and debris. The C3 clearance allows for slight thermal expansion, making it suitable for varying temperatures.

You’ll often find 6203-2Z/C3WT Bearing in electric motors, thanks to its smooth radial load handling. Its chrome steel construction ensures long-lasting performance even in continuous operation.

For household appliances like washing machines, 6203-2Z/C3WT Bearing provides quiet and reliable rotation. The metric sizing makes it easy to replace in most European and Asian models.

In small machinery like pumps, 6203-2Z/C3WT Bearing’s balanced design reduces vibration. The ABEC 1 tolerance offers good precision for general industrial applications.
